Attaching front axle gear to front axle - AR33.30-P-0525-04CWX
FRONT AXLE TRANSMISSION
| Number | Designation | Model 204 | Model 212 | ||
|---|---|---|---|---|---|
| BA33.30-P-1006-03G | Collar bolt, front axle gear to support brace | Nm | 65 | 65 | |
| BA33.30-P-1007-03G | Collar bolt, front axle transmission to engine support | Stage 1 | Nm | 5 | 5 |
| Stage 2 | Nm | 50 | 50 | ||
| Stage 3 | ∠° | 95 | 95 |
FRONT AXLE TRANSMISSION
| Number | Designation | Model 216 | Model 218 | ||
|---|---|---|---|---|---|
| BA33.30-P-1006-03G | Collar bolt, front axle gear to support brace | Nm | 65 | 65 | |
| BA33.30-P-1007-03G | Collar bolt, front axle transmission to engine support | Stage 1 | Nm | 5 | 5 |
| Stage 2 | Nm | 50 | 50 | ||
| Stage 3 | ∠° | 95 | 95 |
FRONT AXLE TRANSMISSION
| Number | Designation | Model 221 | ||
|---|---|---|---|---|
| BA33.30-P-1006-03G | Collar bolt, front axle gear to support brace | Nm | 65 | |
| BA33.30-P-1007-03G | Collar bolt, front axle transmission to engine support | Stage 1 | Nm | 5 |
| Stage 2 | Nm | 50 | ||
| Stage 3 | ∠° | 95 |

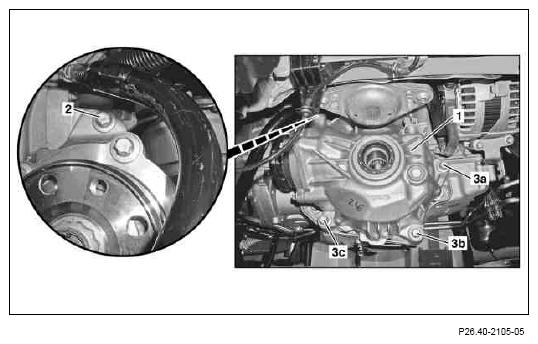

It is essential to observe the tightening sequence. Failure to do so will result in noises and vibrations in the front axle transmission (1).
- Insert front axle transmission (1) and tighten bolts (2, 3a, 3b, 3c) clockwise until finger-tight.
- Tighten bolt (2) at engine support to stage 1
.
- Tighten bolts (3a, 3b, 3c) at support brace clockwise, starting with bolt (3a)
- Tighten bolt (2) to stage 2 and stage 3
