Remove/install power steering pump - AR46.30-P-0500SYA
MODEL 221.176 except CODE (Z07) Top protection without electrohydraulic power steering (EHPS)
MODEL 221.179, 216.376 /379 without electrohydraulic power steering (EHPS)
| Remove/install | |||
| Notes on Active Body Control suspension | AH32.50-P-0001-01N | ||
| 1 | Remove poly-V belt | AR13.20-P-0001SZ | |
| 2 | Remove left-hand air filter housing | AR09.10-P-1150LA | |

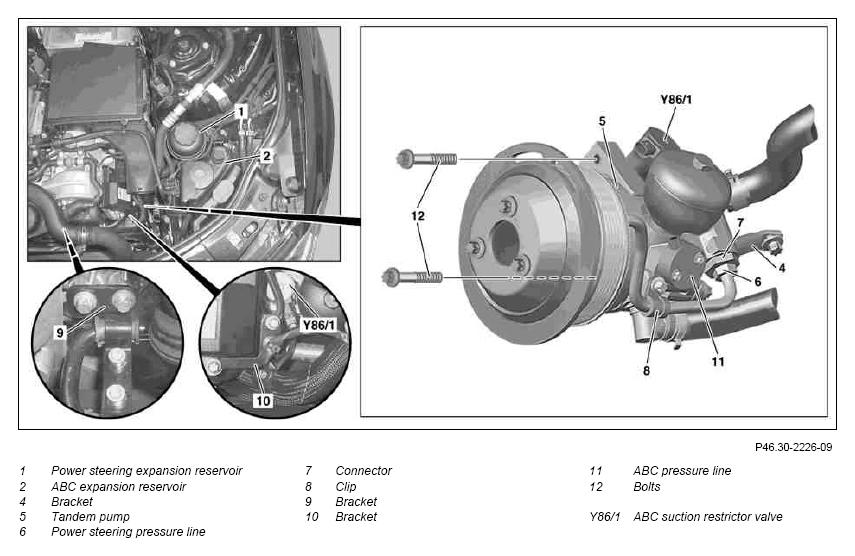

| 3 | Remove expansion reservoir (1, 2) | Power steering expansion reservoir (1) | AR46.25-P-1000SY |
| ABC expansion reservoir (2) | AR32.50-P-0022SX | ||
| 4 | Disconnect electrical connectors from refrigerant compressor and suction restrictor valve (Y86/1) | ||
| 5 | Detach bracket (4) from tandem pump (5) and remove ground strap | *BA46.30-P-1009-01N | |
| *BA46.30-P-1005-01Q | |||
| 6 | Detach pressure line (6) from tandem pump (5) | ||
| *BA46.30-P-1005-01N | |||
| *BA46.30-P-1009-01Q | |||
| 7 | Detach clamp (8) of pressure line (6) from tandem pump (5) | ||
| 8 | Detach bracket (9, 10) of pressure line (11) from cylinder head and ignition module | ||
| 9 | Detach pressure line (11) from tandem pump (5) | ||
| 10 | Remove bolts (12) and lift out tandem pump (5) | ||
| *BA46.30-P-1004-01N | |||
| *BA46.30-P-1001-01Q | |||
| 11 | Install in the reverse order |
POWER STEERING PUMP
| Number | Designation | Model 216 with engine 275 | |
|---|---|---|---|
| BA46.30-P-1001-01Q | Tandem pump to crankcase | Nm | 20 |
| BA46.30-P-1005-01Q | Bracket, tandem pump to front timing case | Nm | 20 |
| BA46.30-P-1009-01Q | Union nut, high-pressure expansion hose of rack-and-pinion steering to tandem pump | Nm | 40 |
POWER STEERING PUMP
| Number | Designation | Model 221 with code 487 | |
|---|---|---|---|
| BA46.30-P-1004-01N | Bolt, power steering pump to timing case cover | Nm | 35 |
| BA46.30-P-1005-01N | Union nut, high pressure expansion hose of power steering to power steering pump | Nm | 40 |
| BA46.30-P-1009-01N | Bolt, bracket to power steering pump | Nm | 20 |
