Remove/install pipeline between control head and steering gear housing. - AR46.20-P-3501SX
MODEL 221, 216 without 4MATIC
| Remove/install | |||
| When performing the following work, it is essential to ensure the utmost cleanliness at the workplace and while carrying out repairs, otherwise the rack-and-pinion steering (10) may not function correctly | |||

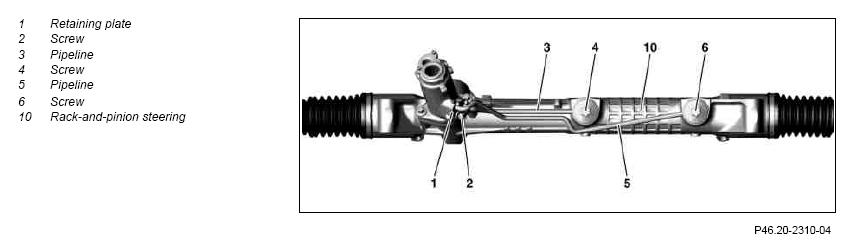

| 1 | Remove rack-and-pinion steering (10) | AR46.20-P-0600SX | |
| 2 | Fit rack-and-pinion steering (10) in |
*203589043100 | |
| 3 | Detach bolt (4 or 6) from leaking pipe (3 or 5) | *BA46.20-P-1010-01M | |
| 4 | Remove bolt (2) and remove retaining plate (1) | *BA46.20-P-1011-01M | |
| 5 | Remove leaking pipe (3 or 5) | ||
| 6 | Install in the reverse order |
STEERING GEAR
| Number | Designation | Model 216 except 4MATIC | ||
|---|---|---|---|---|
| BA46.20-P-1010-01M | Oil line to control head | Nm | 20 | |
| BA46.20-P-1011-01M | Oil line to steer jacket | Stage 1 | Nm | 100 |
| 2nd stage, loosen | ∠° | -20 | ||
| Stage 3 | Nm | 90 | ||
STEERING GEAR
| Number | Designation | Model 221 except 4MATIC | ||
|---|---|---|---|---|
| BA46.20-P-1010-01M | Oil line to control head | Nm | 20 | |
| BA46.20-P-1011-01M | Oil line to steer jacket | Stage 1 | Nm | 100 |
| 2nd stage, loosen | ∠° | -20 | ||
| Stage 3 | Nm | 90 | ||
