Remove/install SPS solenoid valve - AR46.50-P-6000SX

MODEL 221.0 /1

MODEL 216

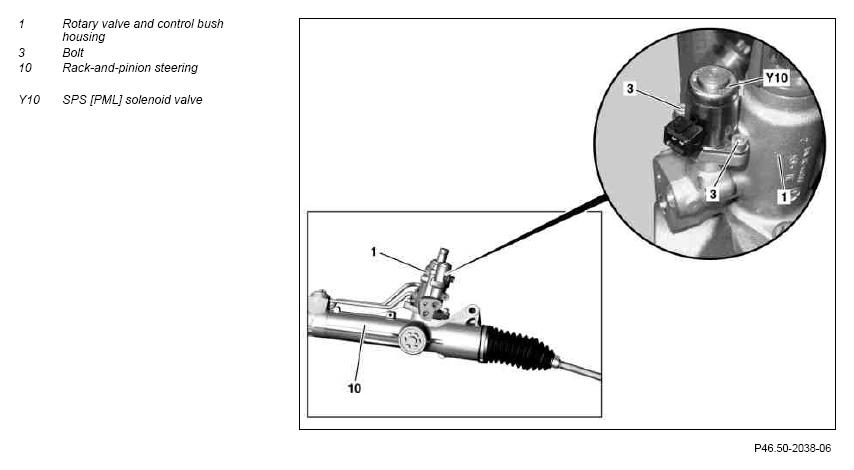

Fig 1: Identifying Rotary Valve And Control Bush Housing, Rack-And-Pinion Steering And SPS [PML] Solenoid Valve

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Ensure the utmost cleanliness. No dirt must be allowed to enter the rotary valve and control bush housing (1) as this would result in damage to the steering gear
1	Remove rack-and-pinion steering (10)		AR46.20-P-0600SX
2	Unscrew bolts (3) from rotary valve and control bushing housing (1) and remove solenoid valve (Y10)	Installation  : Replace the bolts (3) and sealing ring of the solenoid valve (Y10). Ensure that the sealing ring is correctly seated.
3	Install in the reverse order
4	Check operation of speed-sensitive power steering using STAR DIAGNOSIS; read out fault memory and delete if necessary
