Remove/install seat belt buckle (front seat) - AR91.40-P-1515SC
MODEL 216.3

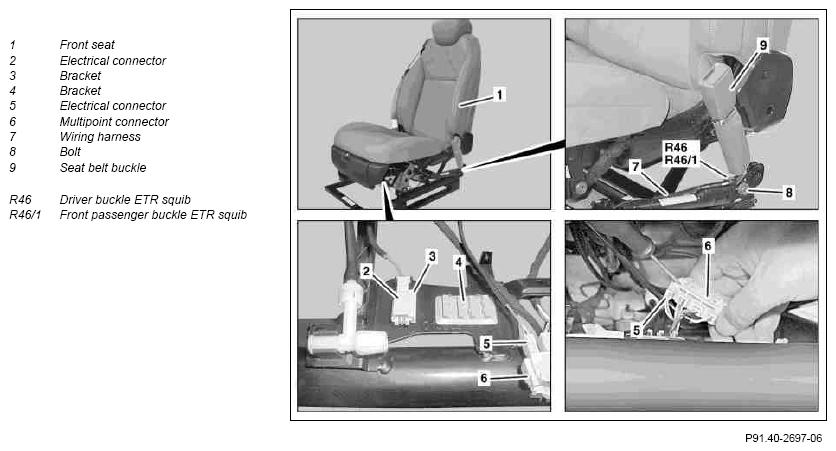

Shown on right front seat
| Remove/install | |||
|---|---|---|---|
| Risk of injury when performing testing or repair work on airbag or emergency tensioning retractor units. | Store airbag units with deployment side facing up; do not expose to temperatures greater than 100 °C. When working on these units, disconnect the power supply. | AS91.00-Z-0001-01A | |
| Notes on performing repair, body work and welding on vehicles with airbags and ETR units | AH91.00-P-0002-01M | ||
| Assessment of airbag and seat belt tensioner units in accident vehicles | AH91.00-P-0006-01B | ||
| Legal regulations on handling and storing airbags and emergency tensioning retractors | AH91.00-P-0004-01A | ||
| 1 | Remove front seat (1) | AR91.10-P-1000SC | |
| 2 | Unclip electrical connector (2) from mount (3). | ||
| 3 | Unclip multipoint connector (6) from mount (4). | ||
| 4 | Loosen electrical connector (5) from multipoint connector (6) with suitable tool. | ||
| 5 | Expose electric wiring harness (7) | ||
| 6 | Unscrew bolt (8) and remove buckle (9) | ||
| Notes on disposing of airbag and emergency tensioning retractor units | OS91.00-P-0001-01A | ||
| *BA91.40-P-1003-01O | |||
| 7 | Install in the reverse order | ||
| 8.1 | Check supplemental restraint system (SRS) with STAR DIAGNOSIS | After replacing belt buckle (9). | |
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A | ||
| STAR DIAGNOSIS diagnostic system | *WE58.40-Z-1013-06A |
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS
| Number | Designation | Model 216 | |
|---|---|---|---|
| BA91.40-P-1003-01O | Bolt on front belt buckle | Nm | 32 |
WORKSHOP EQUIPMENT/MB TESTERS (SEE WORKSHOP EQUIPMENT MANUAL)
| WE58.40-Z-1013-06A | STAR DIAGNOSIS Compact diagnosis system for passenger cars, order number 6511 1801 00 |
