Remove/install rear seat belt buckle - AR91.40-P-1516SC

MODEL 216.3

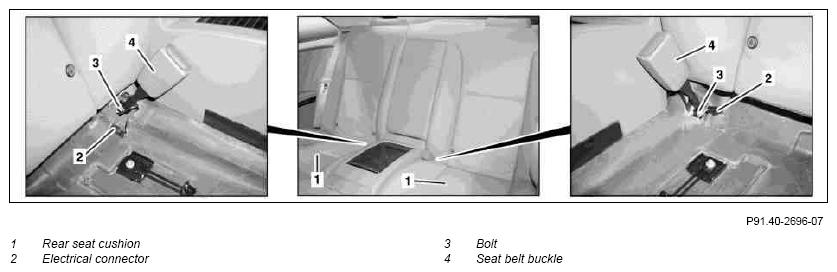

Fig 1: Identifying Rear Seat Belt Buckle Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove and right rear seat cushion (1).		AR91.12-P-1020SC
2	Disconnect electrical connector (2)
3	Unscrew bolt (3) and remove buckle (4)		*BA91.40-P-1007-01O
4	Install in the reverse order

SEAT BELTS/EMERGENCY TENSIONING RETRACTORS

Number	Designation		Model 216
BA91.40-P-1007-01O	Screw on rear belt buckle	Nm	32
