Remove/install front seat cushion covering - AR91.18-P-1800SC

MODEL 216.3

Shown on right front seat cushion

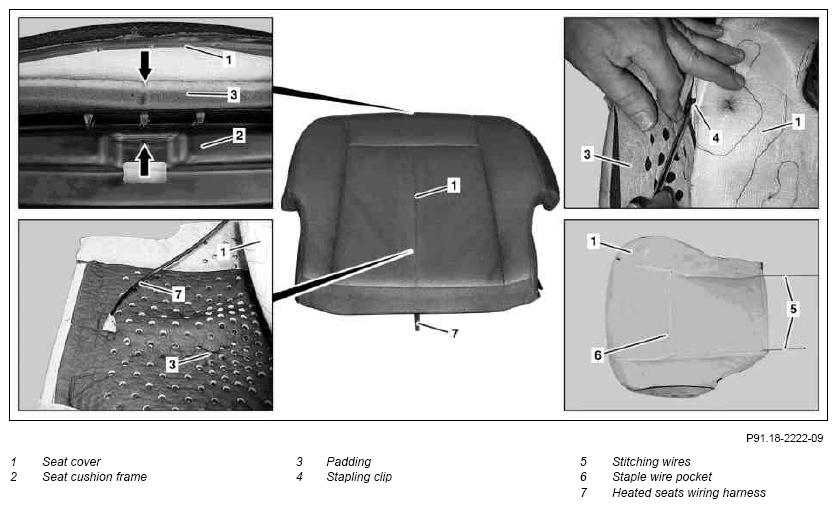

Fig 1: Identifying Front Seat Cushion Covering Remove/Install Components

Courtesy of MERCEDES-BENZ USA

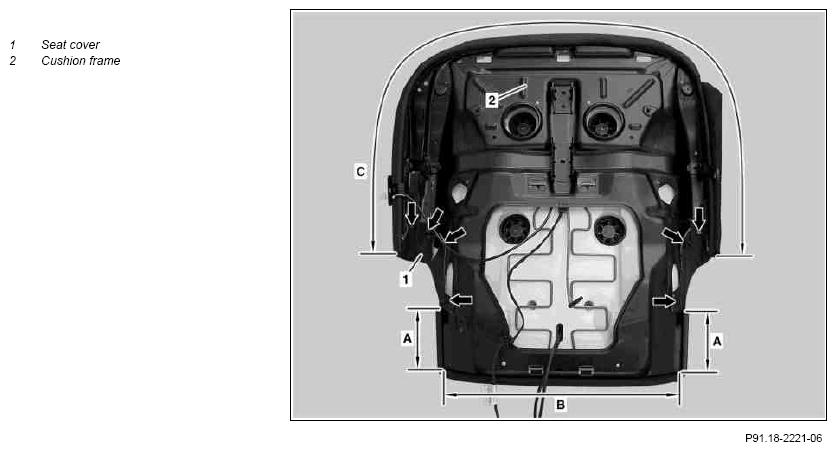

Fig 2: Identifying Front Seat Cushion Covering Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove seat cushion of left or right front seat		AR91.10-P-3310SC
2	Unhook cover (1) at seat cushion frame (2) (arrows)
3	Lift cover (1) out of seat cushion frame (2) in areas A, B and C using a suitable tool
4	Remove seat cushion frame (2)	Installation:  Match up assembly markings (arrows) at front of seat cushion frame (2) and in padding (3).
5	Slip cover (1) over padding (3)
6	Unhook staple wires (5) from staple clips (4) using a suitable tool	The two staple wires (5) are fastened with 3 staple clips (4) each. The position of staple clips (4) in padding (3) can be recognized with the aid of the X markings located on cover (1). Installation:  To reduce the amount of wrinkles, match up the X markings located on cover (1) with corresponding staple clips (4).
7	Pull staple wires (5) out of cover (1)
8	Unhook staple wire in staple wire pocket (6) from staple clips (4) using a suitable tool	The staple wire in staple wire pocket (6) is fastened with 2 staple clips (4). The position of staple clips (4) in padding (3) can be recognized with the aid of the X markings located on cover (1). Installation:  To reduce the amount of wrinkles, match up the X markings located on cover (1) with the corresponding staple clips (4).
9.1	Pull staple wire out of staple wire pocket (6)	When replacing cover (1).
10	Lift up cover (1) and expose heated seats wiring harness (7)
11	Remove the upholstery (1).
12	Install in the reverse order
