Remove/install side air vent - AR83.10-P-4740SC

MODEL 216.3

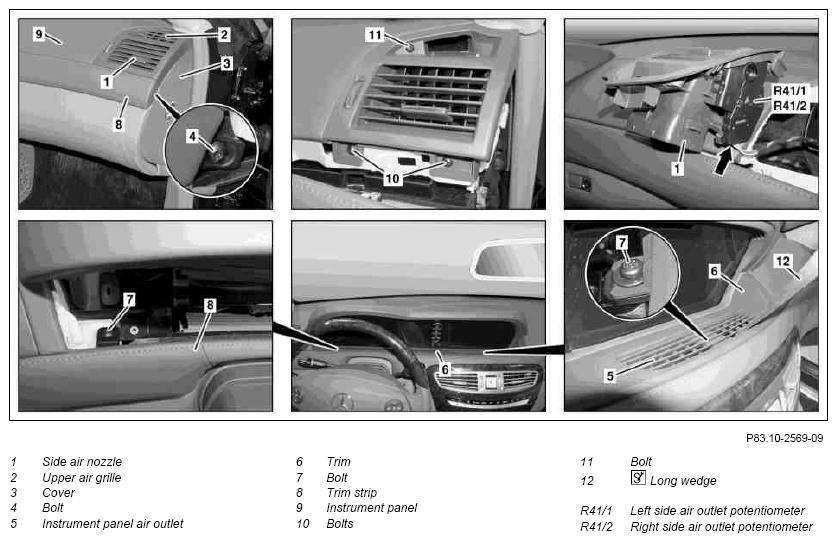

Fig 1: Identifying Side Air Vent Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1.1	Move steering column down and back	When removing side left air outlet (1).
2	Unclip upper air grille (2) from side air outlet (1).		Fig 2
3	Unclip covering (3)		Fig 2
4	Unscrew bolt (4)
5.1	Unclip instrument panel air outlet (5)	When removing side left air outlet (1).	Fig 2
6.1	Unclip and remove molding (6)	When removing side left air outlet (1).	Fig 2
7.1	Remove bolts (7)	When removing side left air outlet (1).
8.1	Unclip trim strip (8) from instrument panel (9) and press toward rear until bolts (10) are accessible.	When removing right side air outlet (1). Unclip carefully and press toward rear so that trim strip (8) or instrument panel (9) cannot be damaged.	Fig 2
9	Cover up trim strip (8) using clean rag, push downwards and remove screws (10)	Carefully press toward rear to prevent damaging trim strip (8).
10	Unscrew bolt (11).
11	Remove side air outlet (1) from instrument panel (9) and disconnect electrical connector (arrow) from left side outlet potentiometer (R41/1) or right side outlet potentiometer (R41/2).
12	Install in the reverse order

Fig 2: Identifying Wedge Tool (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
