Remove/install air conditioning system control unit - AR83.30-P-6600SX
MODEL 216.3, 221.0/1

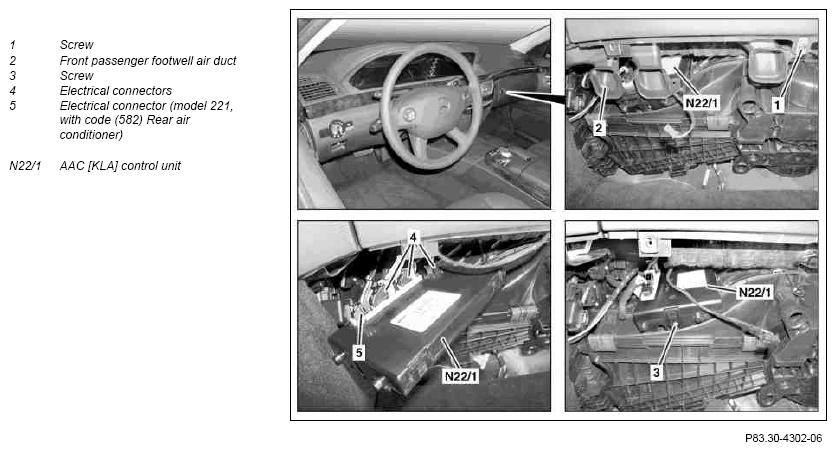

Shown on model 221
| Remove/install | |||
|---|---|---|---|
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1 | Buffer basic data of AAC [KLA] control unit (N22/1) in STAR DIAGNOSIS | When replacing AAC [KLA] control unit (N22/1) |
|
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A | ||
| 2 | Switch off ignition | ||
| 3 | Remove cover on right under the dashboard | AR68.10-P-1520SX | |
| 4 | Remove passenger-side footwell air duct (2). | ||
| 5 | Remove AAC [KLA] control unit (N22/1) from air conditioner housing | ||
| 6 | Detach electrical connectors (4) from AAC [KLA] control unit (N22/1) | ||
| 7 | Detach electrical connector (5) from AAC [KLA] control unit (N22/1) | For model 221 with code (582) Rear air conditioner | |
| 8 | Install in the reverse order |
