Remove/install actuator motor for right footwell flap - AR83.10-P-2007SX

MODEL 216.3, 221.0/1

Shown on model 221

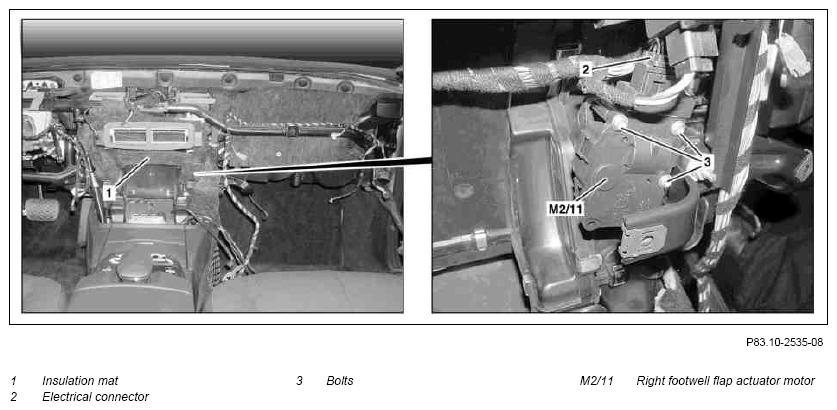

Fig 1: Identifying Remove/Install Components Of Actuator Motor For Right Footwell Flap

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove instrument panel	Model 216	AR68.10-P-1000SC
		Model 221	AR68.10-P-1000SX
2	Remove sound deadening mat (1) from air conditioner housing
3	Remove right footwell flap actuator motor (M2/11) from air conditioner housing	Installation  : Match the position of the connection for the right footwell flap to the position of the actuating drive on the right footwell flap actuator motor (M2/11).
4	Install in the reverse order
5	Teach in and normalize right footwell flap actuator motor (M2/11)	Menu item: Control unit adaptations, teach in actuator motors, normalize actuator motors.
	Connect STAR DIAGNOSIS and read out fault memory		AD00.00-P-2000-04A
		STAR DIAGNOSIS diagnostic system	*WH58.30-Z-1048-13A

COMMERCIALLY AVAILABLE TOOLS

Number	Designation
WH58.30-Z-1048-13A	STAR DIAGNOSIS diagnostic system, Compact Passenger Car	6511 1801 00
