Separate B-pillar with side longitudinal member - AR63.20-P-0550-01SC

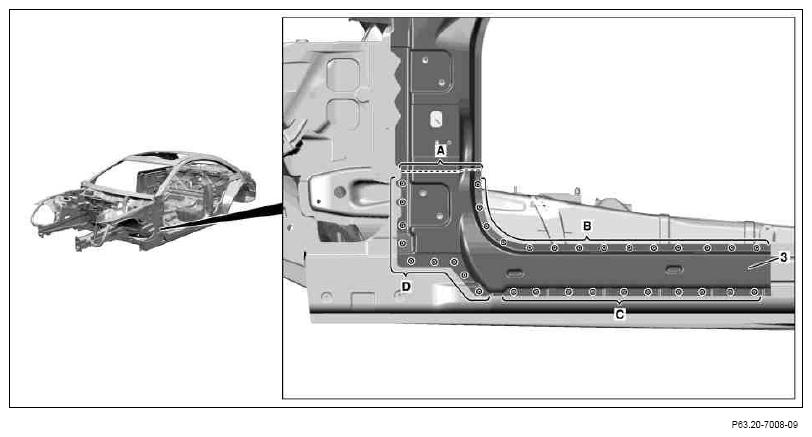

Fig 1: Identifying Spot Welding Areas On Panel (B, C And D)
G07511563Courtesy of MERCEDES-BENZ USA
  1. Scribe separation line on panel (3) with metal needle template and cut (area A).

    IMPORTANT Observe sheet metal panels below; transfer dimension from new part.

  2. Expose spot welds on panel (3) and cut (areas B, C and D).
  3. Heat panel (3) in crosshatched areas with hot air gun and remove.

    IMPORTANT The panel (3) is bonded in the crosshatched areas.

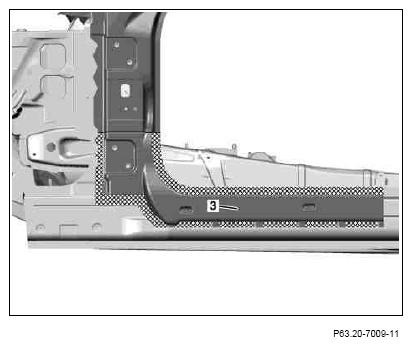

    Fig 2: Identifying Panel Crosshatched Areas
    G07511564Courtesy of MERCEDES-BENZ USA

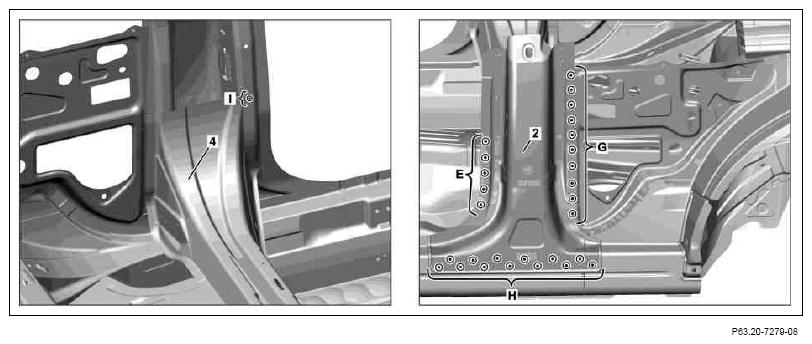

    Fig 3: Identifying Spot Welding On B-Pillar (E, G And H)
    G07511565Courtesy of MERCEDES-BENZ USA
  4. Expose spot welds on B-pillar (2) and cut out with BTR-Usibor milling cutter (areas E, G and H).
  5. Grind open rivet connection on B-pillar reinforcement (4) (area I).

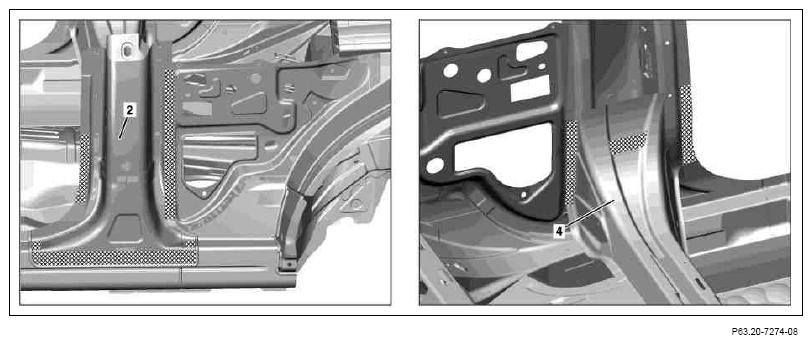

    Fig 4: Identifying B-Pillar Reinforcement And B-Pillar Crosshatched Areas
    G07511566Courtesy of MERCEDES-BENZ USA
  6. Heat B-pillar reinforcement (4) and B-pillar (2) in crosshatched areas with hot air gun and remove B-pillar (2).

    IMPORTANT Crosshatched areas are bonded.

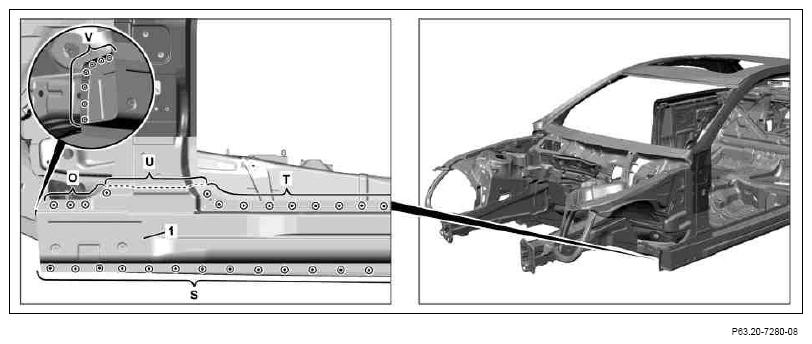

    Fig 5: Identifying Scribe Separation Line On Longitudinal Member With Metal Needle Template Area (U)
    G07511567Courtesy of MERCEDES-BENZ USA
  7. Scribe separation line on longitudinal member (1) with metal needle template and cut (area U).

    IMPORTANT Observe sheet metal below.

  8. Expose spot welds on longitudinal member (1) and cut out with BTR-Usibor milling cutter (areas O, S, T and V).

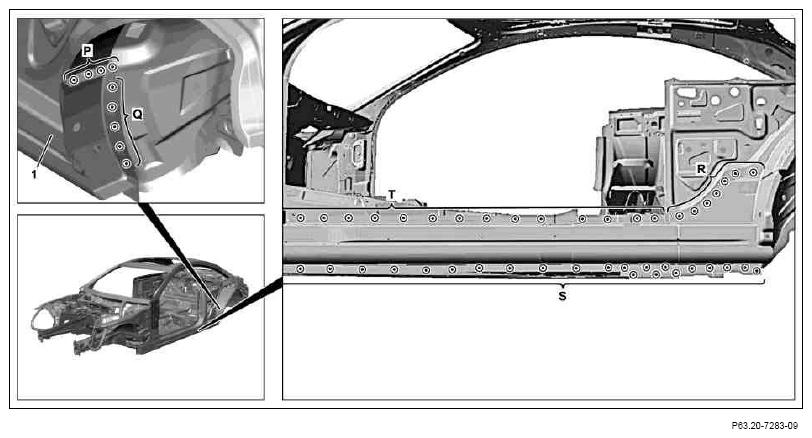

    Fig 6: Identifying Spot Welding Areas On Longitudinal Member (P And Q)
    G07511568Courtesy of MERCEDES-BENZ USA
  9. Expose spot welds on longitudinal member (1) and cut out (areas P and Q).

    IMPORTANT Cut out area P from bottom.

  10. Expose spot welds on longitudinal member (1) and cut out with BTR-Usibor milling cutter (areas R, S and T).
    Fig 7: Identifying Spot Welding Area On Inner Longitudinal Member (W)
    G07511569Courtesy of MERCEDES-BENZ USA
  11. Drill out spot welds on inner longitudinal member with BTR-Usibor drill with Ø 6.7 mm (area W).

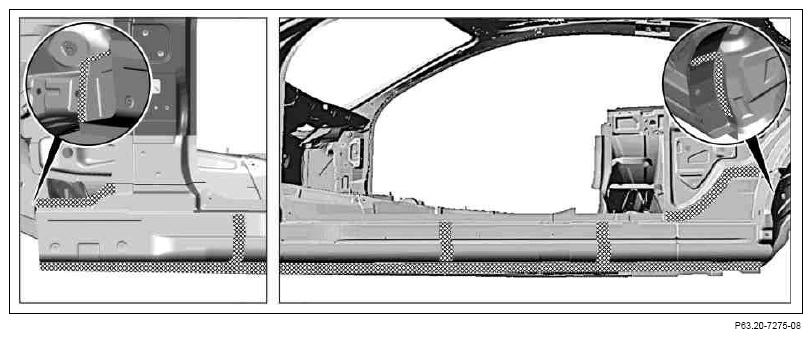

    Fig 8: Identifying Longitudinal Member Crosshatched Areas
    G07511570Courtesy of MERCEDES-BENZ USA
  12. Heat longitudinal member in crosshatched areas with hot air gun.

    IMPORTANT Crosshatched areas are foamed and bonded.

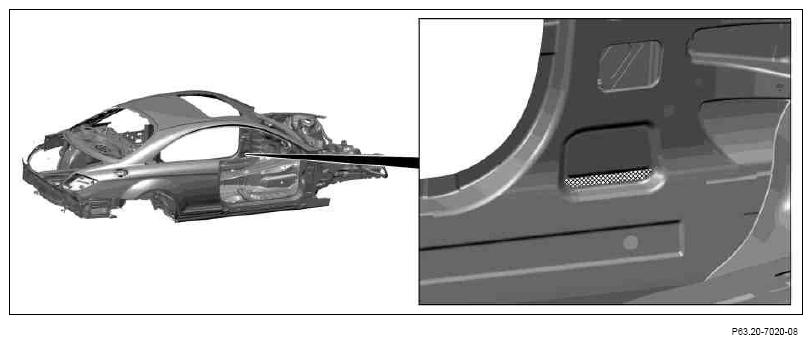

    Fig 9: Identifying Inner Longitudinal Member Crosshatched Areas
    G07511571Courtesy of MERCEDES-BENZ USA
  13. Heat inner longitudinal member in crosshatched area with hot air gun.

    IMPORTANT Crosshatched area is bonded.

  14. Remove longitudinal member.

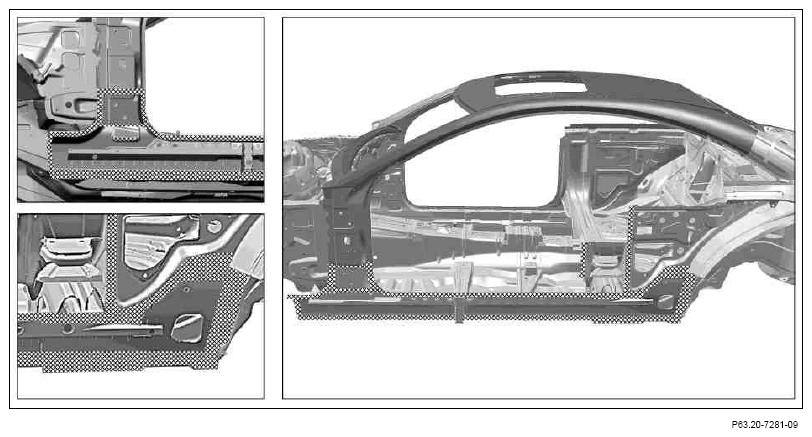

    Fig 10: Identifying Longitudinal Member Grinding Areas
    G07511572Courtesy of MERCEDES-BENZ USA
  15. Grind mating surfaces in crosshatched areas down to bare metal using round wire brush.

IMPORTANT Grind spot weld flanges down to bare metal on both sides.
