Install outer rear wheelhouse - AR63.10-P-0670-06SC
- Install outer rear wheelhouse (1), rear fender, trunk lid, taillamps, rubber seal and rear locking eye.
- Fit outer rear wheelhouse (1), rear fender, trunk lid and taillamps and check gaps using
feeler gauge and adjust.
- Fasten outer rear wheelhouse (1) and rear fender with clamping pliers and remove trunk lid, taillamps, rubber seal and locking eye.

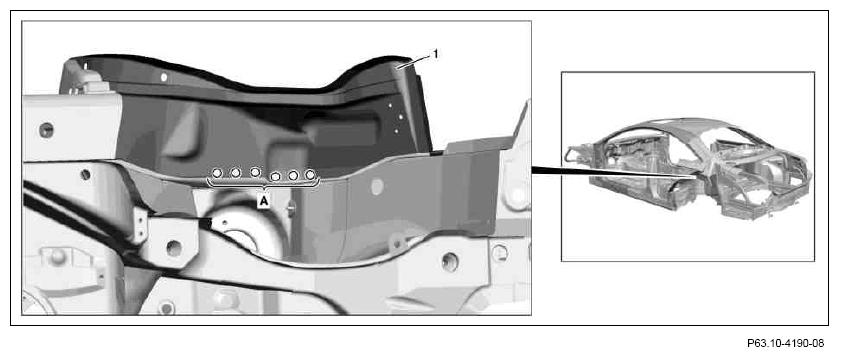

- Drill rivet holes on outer rear wheelhouse (1) with dia. 6.5 mm bit (area A).
- Remove outer rear wheelhouse (1) and rear fender.
- Deburr rivet holes on both sides and remove drill shavings using wet/dry vacuum cleaner.
- Coat insides of riveted joints with zinc dust paint.

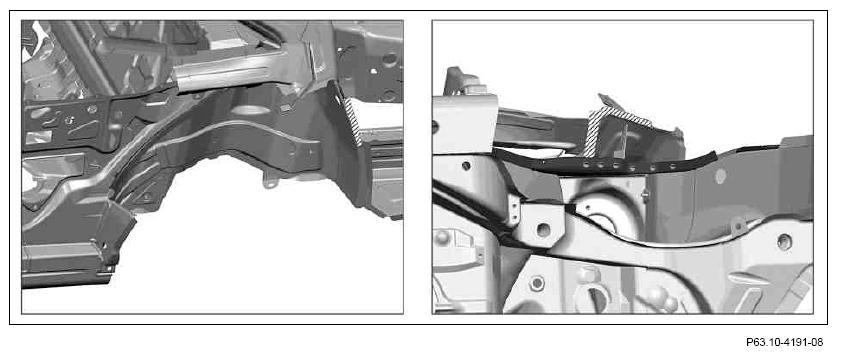

- Apply 2-component adhesive to mating surfaces in cross-hatched areas.
Thoroughly clean all bonding surfaces and do not coat with zinc dust paint, otherwise adhesion of the 2-component adhesive may decrease.
Observe pretreatment of bonding surfaces. Observe manufacturer's specifications for drying and processing time of 2-component adhesive.

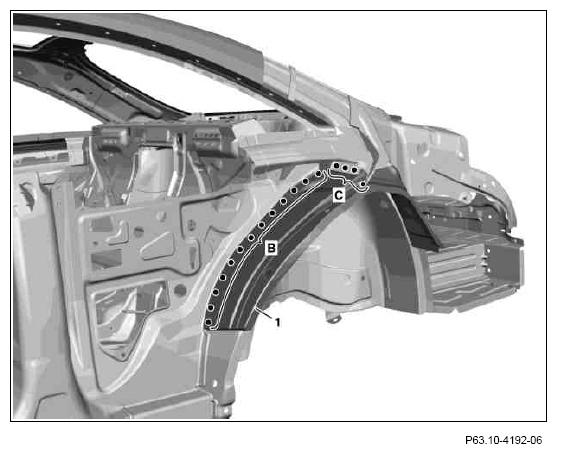

- Install outer rear wheelhouse (1) and fasten with manual temporary fasteners and clamping pliers.
- Outer rear wheelhouse (1)

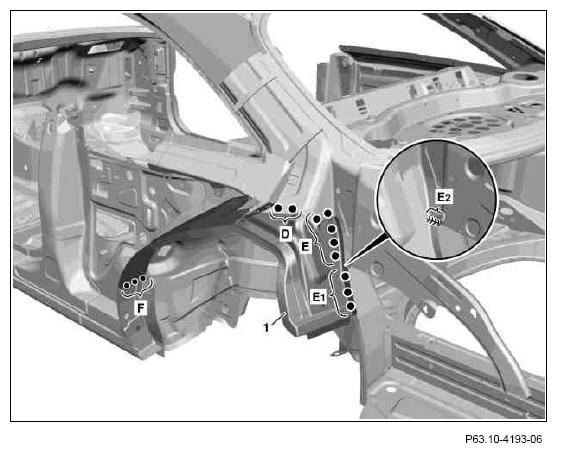

(areas D, E, E1 and F).
- Outer rear wheelhouse (1)
(area E 2).
- Outer rear wheelhouse (1)

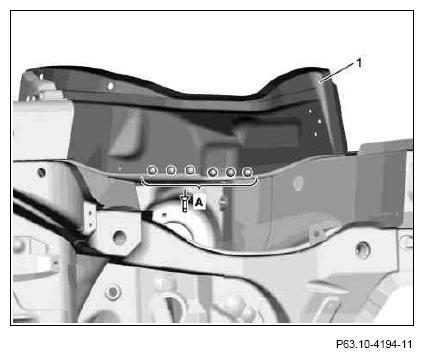

- Rivet outer rear wheelhouse (1) using Polygrip flat/round head rivet, dia. 6.4X14 (area A).
- Clean weld joints using round wire brush and remove drill and grinding shavings using wet/dry vacuum cleaner.
- Coat weld joints and bare inner surfaces with zinc dust paint.
