Install and weld in inner C-pillar side wall - AR63.10-P-0700-03SC

  1. Install inner C-pillar (1), outer rear wheel well (3), outer C-pillar (2) and strut (5), fit and fasten with clamping pliers.
  2. Install rear fender, side wall reinforcement (4), trunk lid, right taillamp, left taillamp and rubber seal.
  3. Fit rear fender, trunk lid, right taillamp, left taillamp and check gaps using SPECIAL TOOL feeler gauge and adjust.

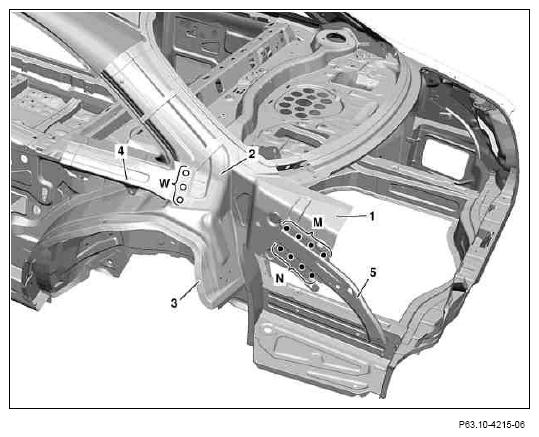

    Fig 1: Identifying Side Wall Reinforcement And Strut Tack Weld (Areas M, N And W)
    G07511549Courtesy of MERCEDES-BENZ USA
  4. Fasten side wall reinforcement (4) and strut (5) using tack welds (areas M, N and W).

    IMPORTANT When working on the left side of the vehicle, fit strut (5) with E-net compensator and ensure that hole pattern coincides.

  5. Remove E-net compensator, rear fender, trunk lid, left taillamp and right taillamp.
  6. Drill dia. 6.5 mm rivet holes (area W).
  7. Strut (5) POLARIZATION RESISTANCE SINGLE-ROW SPOT WELD (areas M and N).
  8. Cut tack welds on side wall reinforcement (4) (area W).
  9. Remove side wall reinforcement (4) and outer C-pillar (2).
  10. Level tack weld residues on side wall reinforcement (4) and outer C-pillar (2) (area W).
  11. Deburr rivet holes on side wall reinforcement (4) and outer C-pillar (2) on both sides (area W).
  12. Remove drill shavings using wet/dry vacuum cleaner
  13. Coat insides of riveted joints as well as remaining tacks weld with zinc dust paint.

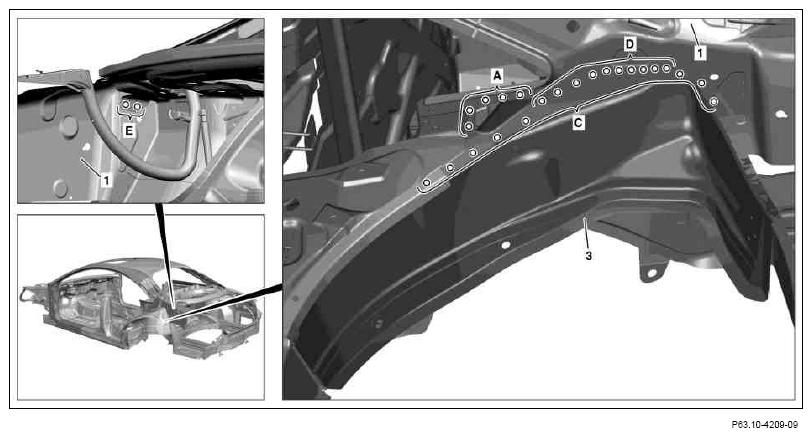

    Fig 2: Identifying Outer Rear Wheel Well And Inner C-Pillar, Deburr Rivet Holes On Both Sides Area (A, C, D And E)
    G07511550Courtesy of MERCEDES-BENZ USA
  14. Drill dia. 6.5 mm rivet holes (area A, C, D and E).
  15. Remove outer rear wheel well (3) and inner C-pillar (1), deburr rivet holes on both sides (area A, C, D and E).

    NOTES Thoroughly clean all bonding surfaces and do not coat with zinc dust paint, otherwise adhesion of the 2-component adhesive may be adversely affected.

    IMPORTANT Observe pretreatment of bonding surfaces. Observe manufacturer's specifications of 2-component adhesive for drying and processing time.

  16. Apply 2-component adhesive to mating surfaces in cross-hatched areas from inside (area F and G).
  17. Apply 2-component adhesive to all other mating surfaces in cross-hatched areas from outside.

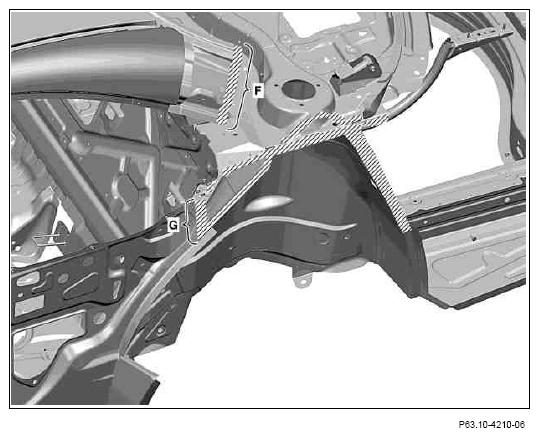

    Fig 3: Identifying 2-Component Adhesive Mating Surfaces In Cross-Hatched Areas (F And G)
    G07511551Courtesy of MERCEDES-BENZ USA

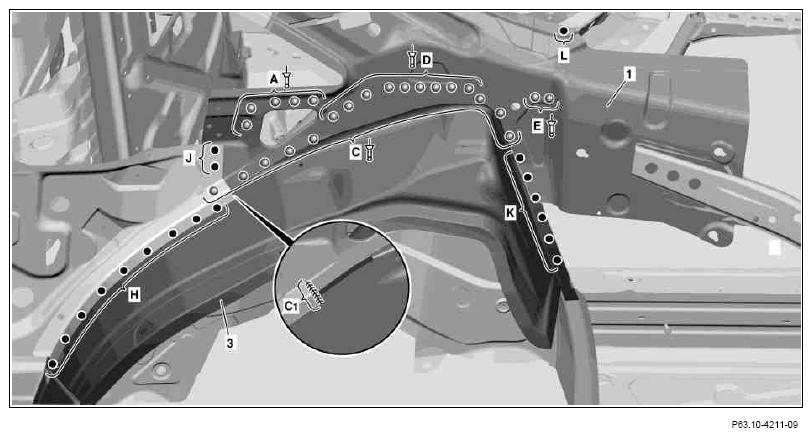

    Fig 4: Identifying Outer Rear Wheel Well And Inner C-Pillar Areas (H, J, K And L)
    G07511552Courtesy of MERCEDES-BENZ USA
  18. Install outer rear wheel well (3) and inner C-pillar (1) and fasten with manual temporary fasteners and clamping pliers.
  19. Outer rear wheel well (3) and inner C-pillar (1) SHIELDED GAS STITCH WELD (area C1 ).

    IMPORTANT After cooling off weld, coat with zinc dust paint on both sides (area C1 ).

  20. Outer rear wheel well (3) and inner C-pillar (1) POLARIZATION RESISTANCE SINGLE-ROW SPOT WELD (areas H, J, K and L).
  21. Rivet outer rear wheel well (3) and inner C-pillar (1) with Polygrip flat/round head rivet, dia. 6.4 x 14 (areas A, C, D and E).

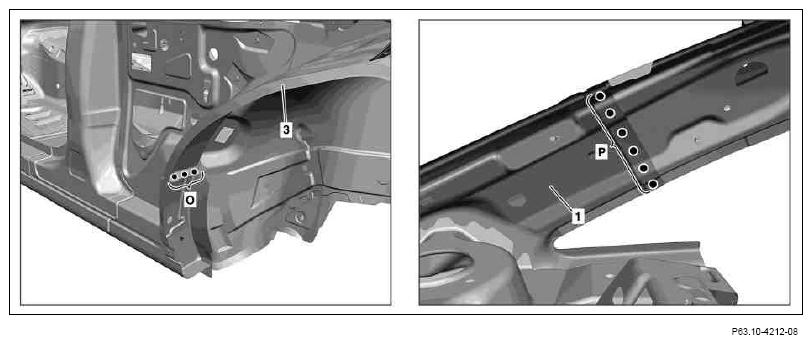

    Fig 5: Identifying Outer Rear Wheel Well And Inner C-Pillar Areas (O And P)
    G07511553Courtesy of MERCEDES-BENZ USA
  22. Outer rear wheel well (3) and inner C-pillar (1) POLARIZATION RESISTANCE SINGLE-ROW SPOT WELD (areas O and P).
  23. Fasten water drain hose (6) with retaining clips.
  24. Apply 2-component adhesive material in cross-hatched areas.

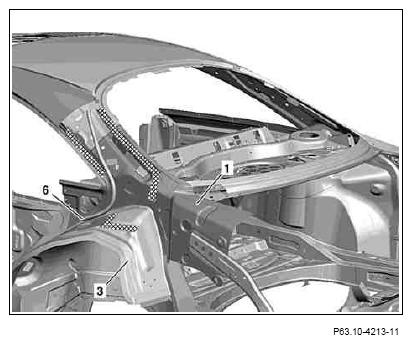

    Fig 6: Identifying Water Drain Hose With Retaining Clips
    G07511554Courtesy of MERCEDES-BENZ USA
  25. Fit outer C-pillar (2) and fasten with clamping pliers.
  26. Outer C-pillar (2) POLARIZATION RESISTANCE SINGLE-ROW SPOT WELD (areas R, T and U).

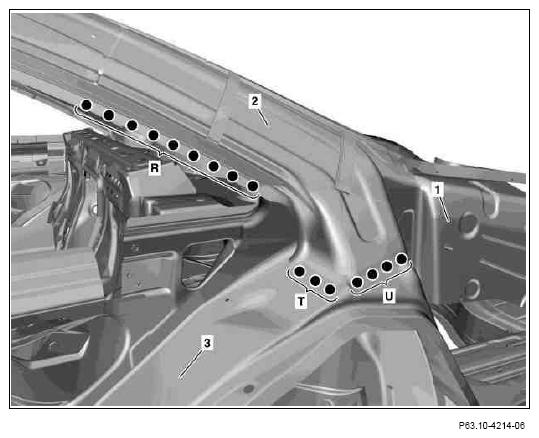

    Fig 7: Identifying Outer C-Pillar Areas (R, T And U)
    G07511555Courtesy of MERCEDES-BENZ USA
  27. Outer C-pillar (2) POLARIZATION RESISTANCE SINGLE-ROW SPOT WELD (areas S and V).
  28. Install side wall reinforcement (4) and fasten with manual temporary fasteners.
  29. Rivet side wall reinforcement (4) using Polygrip flat/round head rivet, dia. 6.4 x 14 (area W).

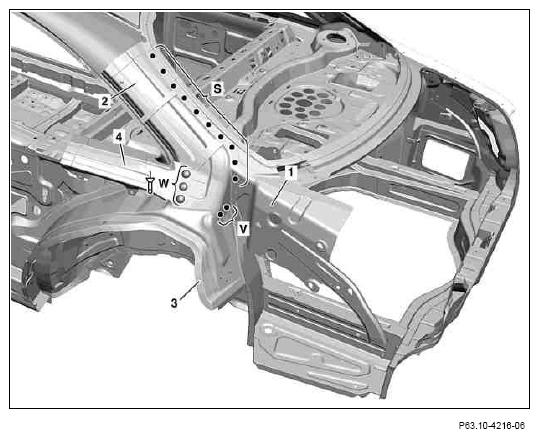

    Fig 8: Identifying Outer C-Pillar Areas (S And V)
    G07511556Courtesy of MERCEDES-BENZ USA

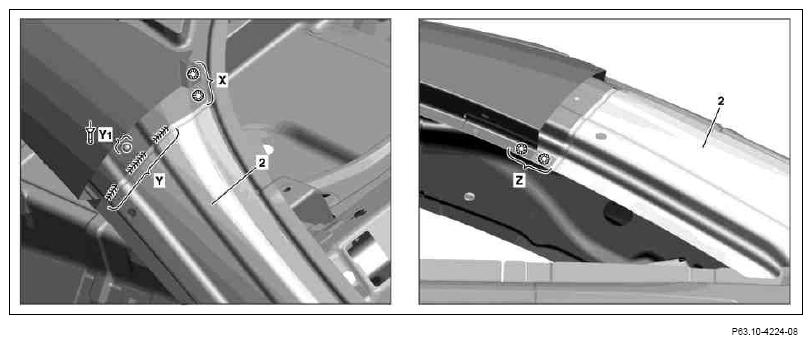

    Fig 9: Identifying Outer C-Pillar Stitch Welding Area (Y)
    G07511557Courtesy of MERCEDES-BENZ USA
  30. MIG braze outer C-pillar (2) stitch weld (area Y). Use IMPORTANT SG-Cu AL8 brazing material.

    For Notes on brazing material:

  31. MIG braze outer C-pillar (2) (areas X and Z). Use IMPORTANT SG-Cu AL8 brazing material.

    For Notes on brazing material

  32. Rivet outer C-pillar (2) with steel/steel blind rivet, 4.8 x 8 from inside (area Y1 ).
  33. Level MIG solder connection (areas X and Z).
  34. Remove grinding and drill shavings using wet/dry vacuum cleaner.
