Install side reinforcement - AR62.30-P-1401-03SX

Fig 1: Identifying Welding Device (221 589 01 23 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Upright (221 589 07 23 00)

Courtesy of MERCEDES-BENZ USA

The following operation steps are shown on model 221 on the left side of the vehicle and must be performed analogously on the right side in the event of damage.

1. Install side reinforcement (1), fit with welding device and fasten with clamping pliers.

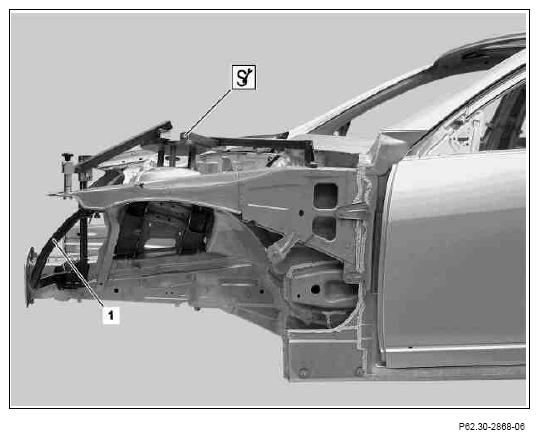

   Fig 3: Identifying Side Reinforcement

   Courtesy of MERCEDES-BENZ USA

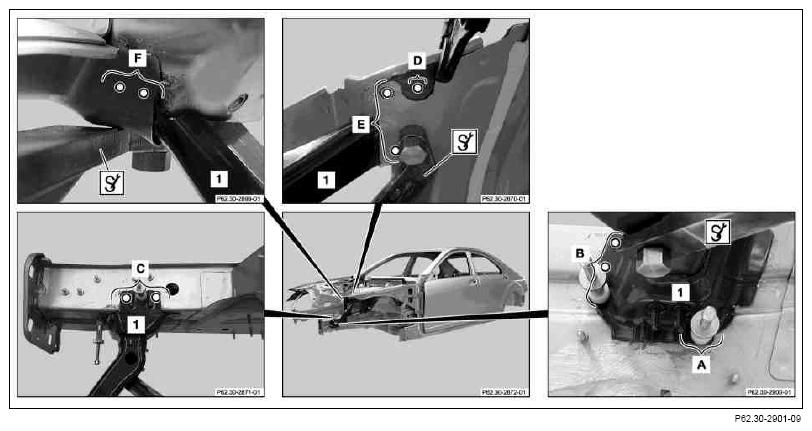

   Fig 4: Identifying Rivet Holes On Side Reinforcement Areas (A, B, C, D, E And F)

   Courtesy of MERCEDES-BENZ USA
2. Drill dia. 5 mm rivet holes on side reinforcement (1) (areas A, B, C, D, E and F).
3. Fasten side reinforcement (1) with manual temporary sheet metal fastener.
4. Unscrew upper reinforcement link rod (2) and lower reinforcement link rod (3) from welding device.
5. Remove upper reinforcement link rod (2) and lower reinforcement link rod (3).
6. Remove welding device
7. Drill dia. 5 mm rivet holes on side reinforcement (1) (areas G and H).
8. Remove side reinforcement (1).
9. Deburr rivet holes on side reinforcement (1) and body on both sides.

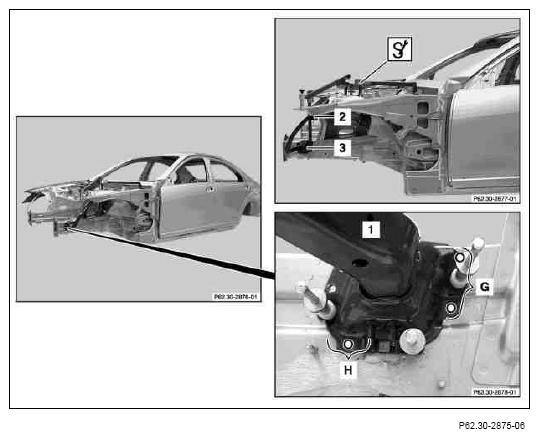

   Fig 5: Identifying Rivet Holes Areas On Side Reinforcement (G And H)

   Courtesy of MERCEDES-BENZ USA

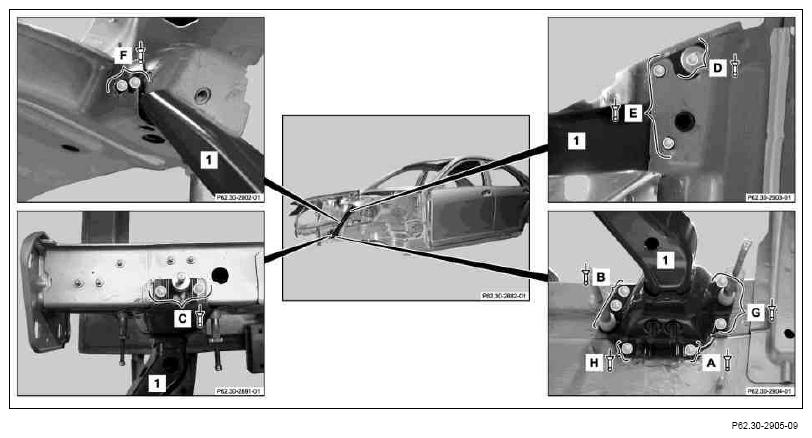

   Fig 6: Identifying Side Reinforcement With Blind Rivet Areas (A, B, C, D, E, F, G And H)

   Courtesy of MERCEDES-BENZ USA
10. Rivet side reinforcement (1) with blind rivet, steel/steel, 4.8 X8 (areas A, B, C, D, E, F, G and H).
11. Remove drill shavings using wet/dry vacuum cleaner
