Overview of system components, panoramic sliding sunroof - GF77.20-P-9991GR

MODEL 166 with CODE (413) Panoramic glass roof with top sliding roof

Shows model 166.0

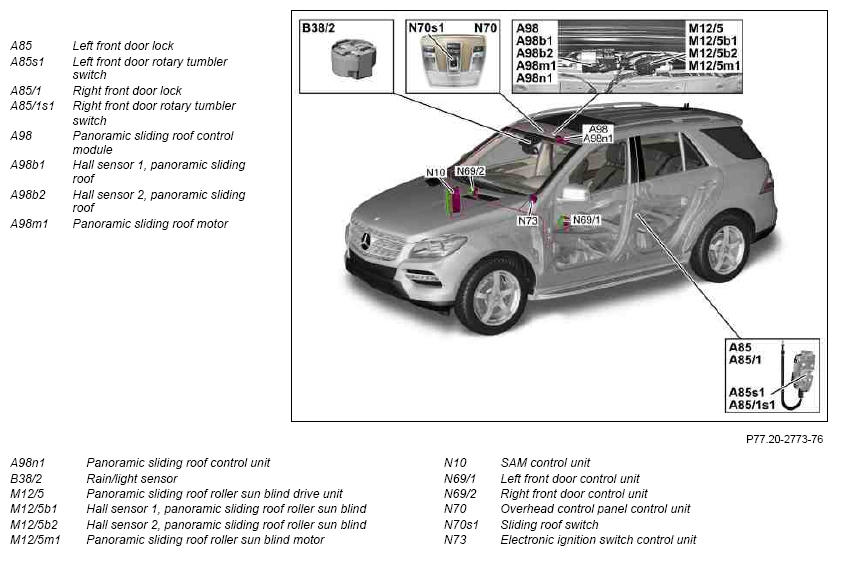

Fig 1: Identifying Panoramic Sliding Sunroof System Components

Courtesy of MERCEDES-BENZ USA

Panoramic sliding sunroof control module, component description	A98, A98n1	GF77.20-P-4106GR
SAM control unit, component description	N10	GF54.21-P-4157GR
Left front door control unit, component description	N69/1	GF72.29-P-6001GR
Right front door control unit, component description	N69/2	GF72.29-P-6009GR
Overhead control panel control unit, component description	N70	GF82.20-P-5216GR
Electronic ignition lock control unit, component description	N73	GF80.57-P-6001GR
Table of contents, function description for electric panoramic sliding sunroof		GF77.20-P-0997GR
