Remove/install spare tire well - AR88.30-P-1000SX

MODEL 204.3, 221, 216

Shown on model 221

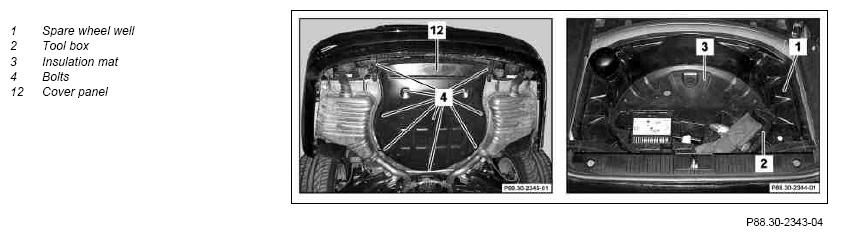

Fig 1: Identifying Spare Tire Wall, Tool Box, Insulation Mat, Bolts And Cover Panel

Courtesy of MERCEDES-BENZ USA

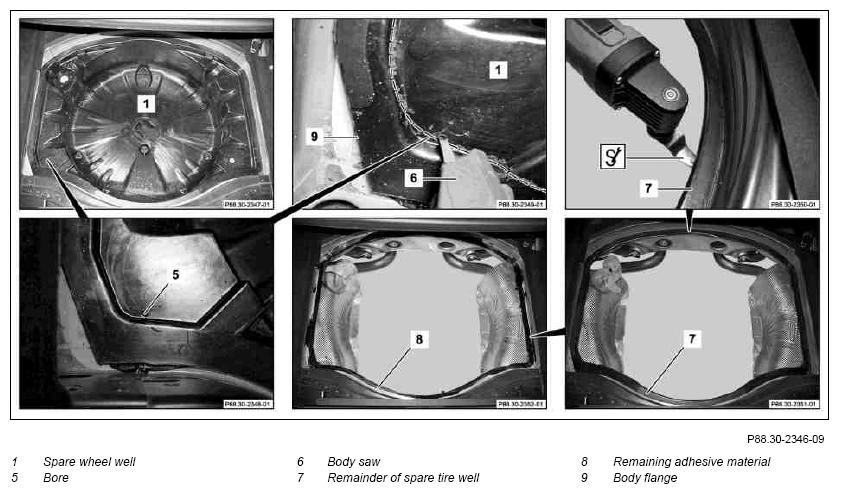

Fig 2: Removing/Installing Spare Tire Well

Courtesy of MERCEDES-BENZ USA

Shown on model 221 with code (487) active Body control (ABC)

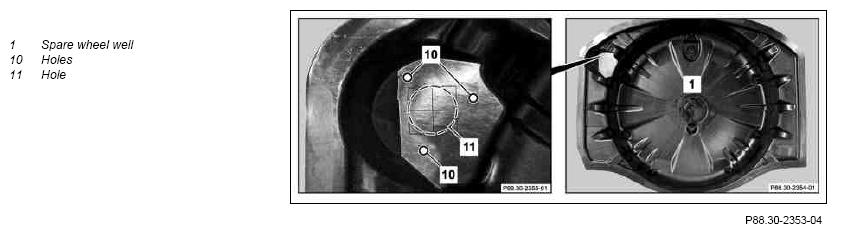

Fig 3: Identifying Spare Tire Wall And Holes

Courtesy of MERCEDES-BENZ USA

	Removing
	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of injury  caused by slipping when inserting blade in the multicutter and by glass splinters when cutting out bonded windows	Always interrupt air supply or power supply before inserting or removing blade. Wear protective gloves and safety glasses.	AS67.00-Z-0001-01A
1	Remove trim in trunk	Model 204.0/3	AR68.30-P-4600CW
		Model 216	AR68.30-P-4600SX
		Model 221 without code (Z07) Top protection
		Model 221 with CODE (Z07) Highest protection	AR68.30-P-4600SXS
2.1	Remove tool box (2)	On vehicles with Tirefit
2.2	Remove spare tire	Code (669) Spare wheel on steel rim Code (690) Compact spare tire as emergency wheel
3	Remove sound deadening mat (3) from spare tire well (1)
4	Lift vehicle on vehicle lift.	Two-post lifting platform, 2.5 - 3.5 t electrohydraulic
5	Remove bolts (4) from cover panel (12) on spare tire well (1) at bottom
6	Remove cover panel (12)
7	Remove rear axle pressure reservoir	With code (487) Active Body Control (ABC)	AR32.50-P-0011SX
8	Drill hole (5) next to body flange (9) for inserting body saw (6) into spare tire well (1)	drill
9	Saw out spare tire well (1) parallel to body flange (9)	Saw as close as possible to body flange (9). Avoid damaging paint. Body jig saw
10	Cut out remains of the spare tire well (7)	Cutting blade Multicutter	* 124589216300
11	Lower vehicle on lifting platform	Two-post lifting platform, 2.5 - 3.5 t electrohydraulic
	Install
12	Drill dia. 7 mm holes (10) for rear axle pressure reservoir	With Active Body Control (ABC), code 487 In marked areas of spare tire well (1). drill
13	Cut out dia. 38 mm hole (11) for rear axle pressure reservoir	Code (487) Active Body Control (ABC) In marked areas of spare tire well (1). drill Keyhole saw holder, dia. 32 - 152 mm HSS bimetal keyhole saw, dia. 38 mm (without mounting shaft and without drill bits)
14	Prepare body flange (9) for gluing in spare tire well (1)	Cut off remaining glue (8) with scraper.	AR88.30-P-1000-03SX
		Scraper
		Replacement blade for scraper
		Repair kit, installing window, 2-component adhesive	* BR00.45-Z-1049-02A
15	Clean gluing flange on spare tire well (1) and prime	Use cleaning set and plastic primer BETAPRIME 5404 included in 2-component adhesive set. Observe flash-off time for BETAPRIME 5404 plastic primer. Repair kit, installing window, 2-component adhesive	*BR00.45-Z-1049-02A
16	Repair paint damage on body flange (9) with primer stick
17	Prepare adhesive cartridge	Model 216, 221	AR88.30-P-1000-05SX
		Model 204.3	AR67.10-P-1000-07CW
		Betapower II (2-component electric cartridge gun)
		Repair kit, installing window, 2-component adhesive	*BR00.45-Z-1049-02A
18	Apply adhesive on gluing flange at new spare tire well (1)	Width of glue bead approx. 8 mm, height approx. 13 mm. Betapower II (2-component electric cartridge gun) Repair kit, installing window, 2-component adhesive	*BR00.45-Z-1049-02A
19	Insert spare tire well (1) into body opening	Install spare wheel well (1) within 10 minutes. Otherwise the adhesive force of the glue starts to decrease.
20	Center spare tire well (1) and press on by slightly knocking with plastic hammer all the way around.
21	Insert sound deadening mat (3) into spare tire well (1)
22	Lift vehicle on vehicle lift.	Two-post lifting platform 2.5-3.5 t, electro-hydraulic
23	Tighten cover panel (12) to spare tire well (1) at bottom with bolts (4)
24	Install rear axle pressure reservoir	Code (487) Active Body Control (ABC)	AR32.50-P-0011SX
25	Lower vehicle on lifting platform	Two-post lifting platform 2.5-3.5 t, electro-hydraulic
26.1	Install spare tire	Code (669) Spare wheel on steel rim Code (690) Compact spare tire as emergency wheel
26.2	Insert tool box (2)	On vehicles with Tirefit.
27	Remove trim in trunk	Model 204.0/3	AR68.30-P-4600CW
		Model 216	AR68.30-P-4600SX
		Model 221 without code (Z07) Top protection
		Model 221 with CODE (Z07) Highest protection	AR68.30-P-4600SXS

Fig 4: Identifying Cutting Blade (124 589 21 63 00)

Courtesy of MERCEDES-BENZ USA
