Wiring diagram / rear SAM control unit with fuse and relay module (/)N10/2 - PE54.21-P-2108-99CAB

Code: Designation: Position:
AO Explanation of color codes 56L
A40/3 COMAND control unit 21L
A40/9 Front central operating unit 25L
A40/9x1 Front central operating unit connector 25J
B4/1 Left fuel level sensor 8J
B4/2 Right fuel level sensor 6J
M24 Rear window blind motor 17L
M24x1 Rear window blind motor connector 16J
M40 Multicontour seat pneumatic pump 9L
M40/1 Pneumatic pump for dynamic seat control 12L
M44 Charge air cooler circulation pump 28L
M45 Engine coolant circulation pump 28L
N10/2 Rear SAM control module with fuse and relay module 4A
N10/2 Rear SAM control module with fuse and relay module 12A
N10/2 Rear SAM control module with fuse and relay module 20A
N10/2 Rear SAM control module with fuse and relay module 28A
N10/2 Rear SAM control module with fuse and relay module 36A
N10/2 Rear SAM control module with fuse and relay module 44A
N10/2 Rear SAM control module with fuse and relay module 49A
N10/2f116 Fuse 116 28C
N10/2f119 Fuse 119 25C
N10/2f120 Fuse 120 24C
N10/2f121 Fuse 121 20C
N10/2f122 Fuse 122 21C
N10/2f127 Fuse 127 10C
N10/2f141 Fuse 141 43C
N10/2f142 Fuse 142 38C
N10/2f143 Fuse 143 39C
N10/2f144 Fuse 144 40C
N10/2f145 Fuse 145 41C
N10/2f146 Fuse 146 45C
N10/2f148 Fuse 148 46C
N10/2kM Circuit 15 relay 2A
N10/2kQ Circulating pump relay 30A
N123/1 Universal Portable CTEL Interface (UPCI [UHI]) control module 47L
N3/10 ME-SFI [ME] control module 32L
N62 PTS control module 36L
N62/1 Radar senors control unit (SGR) 40L
N66/10 Backup camera voltage supply module 43L
N66/2 Reverse camera control module 43L
N82/1 Vehicle power supply control unit 2L
U1 Valid for {{USA}} 19F
U12 Valid for left-hand steering 29E
U13 Valid for right-hand steering 29E
U152 Valid for engine 156 5J
U152 Valid for engine 156 27H
U43 Valid for ECE 20F
U484 Valid for M273 ME 5H
U52 Valid for {{Japan}} 19G
U538 Valid for Parktronic System 34F
U538 Valid for Parktronic System 34G
U749 Valid for multicontour seat (MCS [MKS]) 8F
U750 Valid for dynamic seat (DS [FDS]) 10F
U779 Valid for engine 275 5J
U779 Valid for engine 275 27G
U896 Valid for City Assist System 38F
U899 Valid for backup camera 42F
W15/1 Ground (right footwell) 29E
W17/1 Ground (left rear seat) 10E
W34/1 Ground (electronics - left footwell) 29F
W54/3 Ground (left rear wheelhouse) 5G
X30/32 Left interior CAN/FFS [RBA] voltage distributor connector 14L
Z7/40 Circuit 30 connector sleeve 46H
Z7/5 Circuit 87 connector sleeve 30L

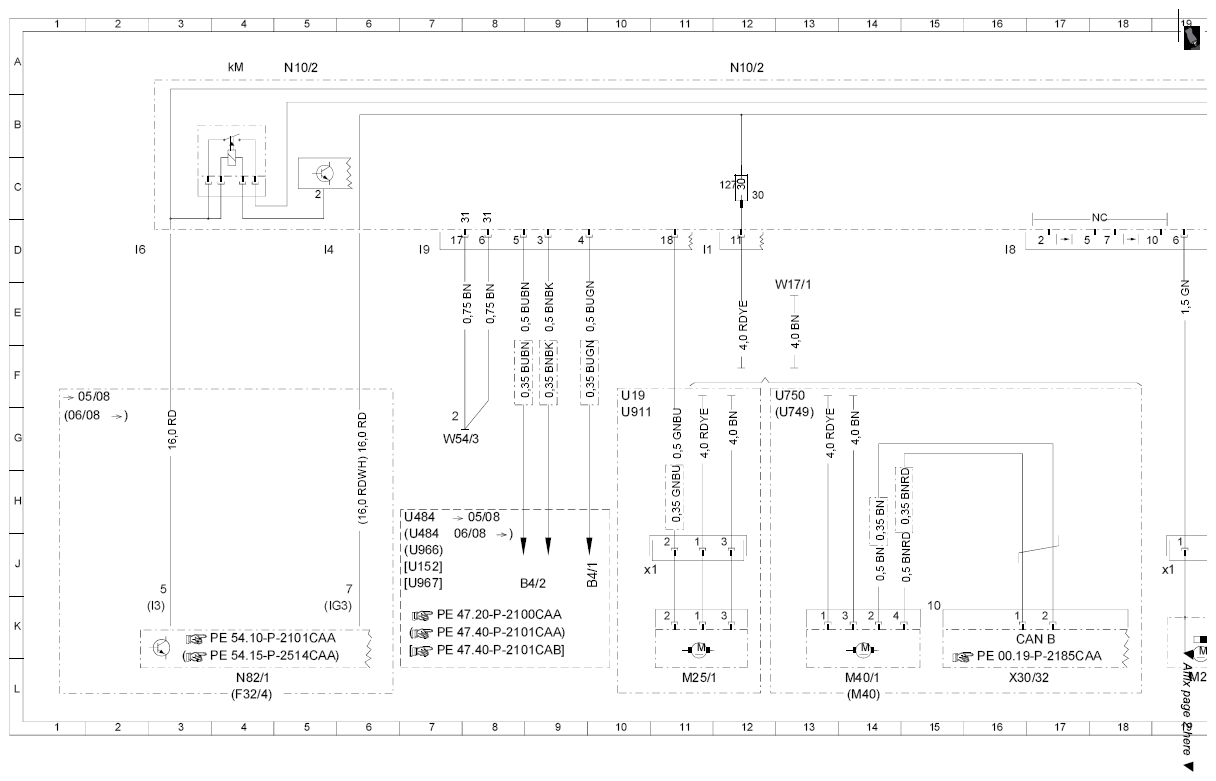

Fig 1: Rear SAM Control Unit With Fuse And Relay Module (N10/2) Wiring Diagram (1 Of 4)
G07542604Courtesy of MERCEDES-BENZ USA

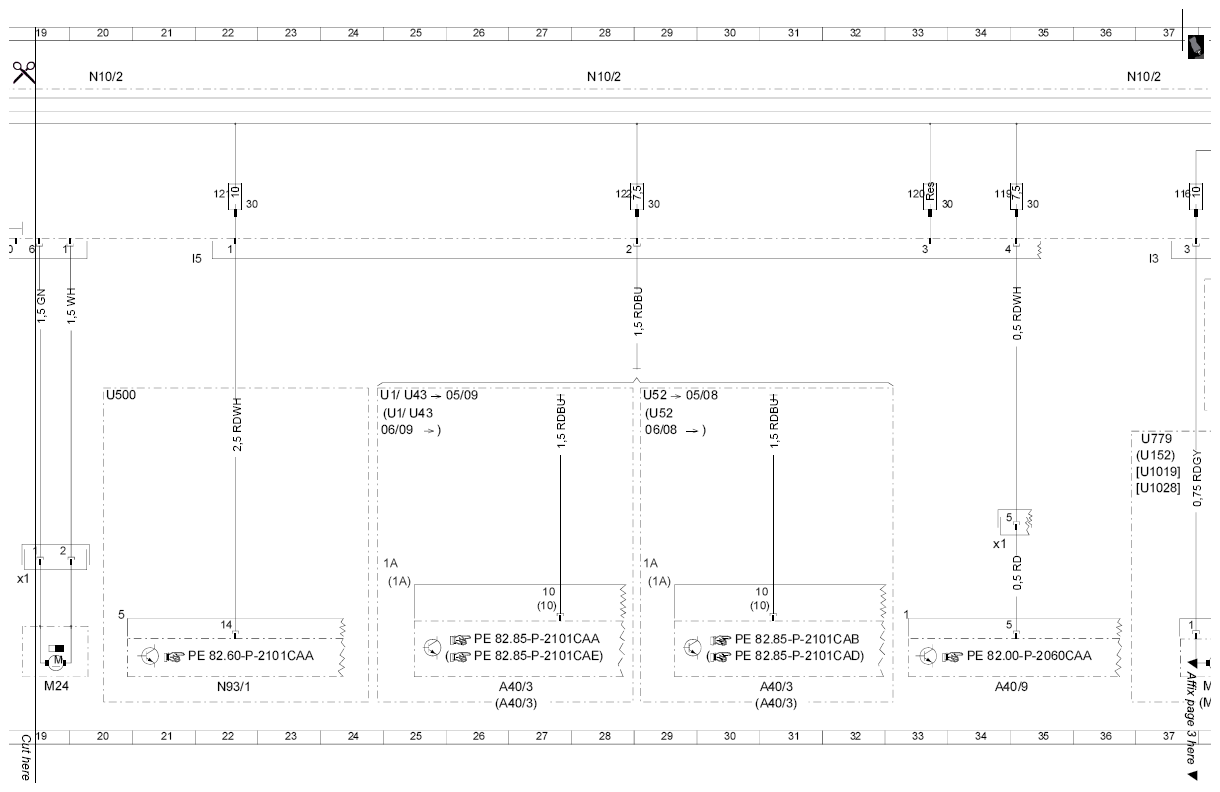

Fig 2: Rear SAM Control Unit With Fuse And Relay Module (N10/2) Wiring Diagram (2 Of 4)
G07542605Courtesy of MERCEDES-BENZ USA

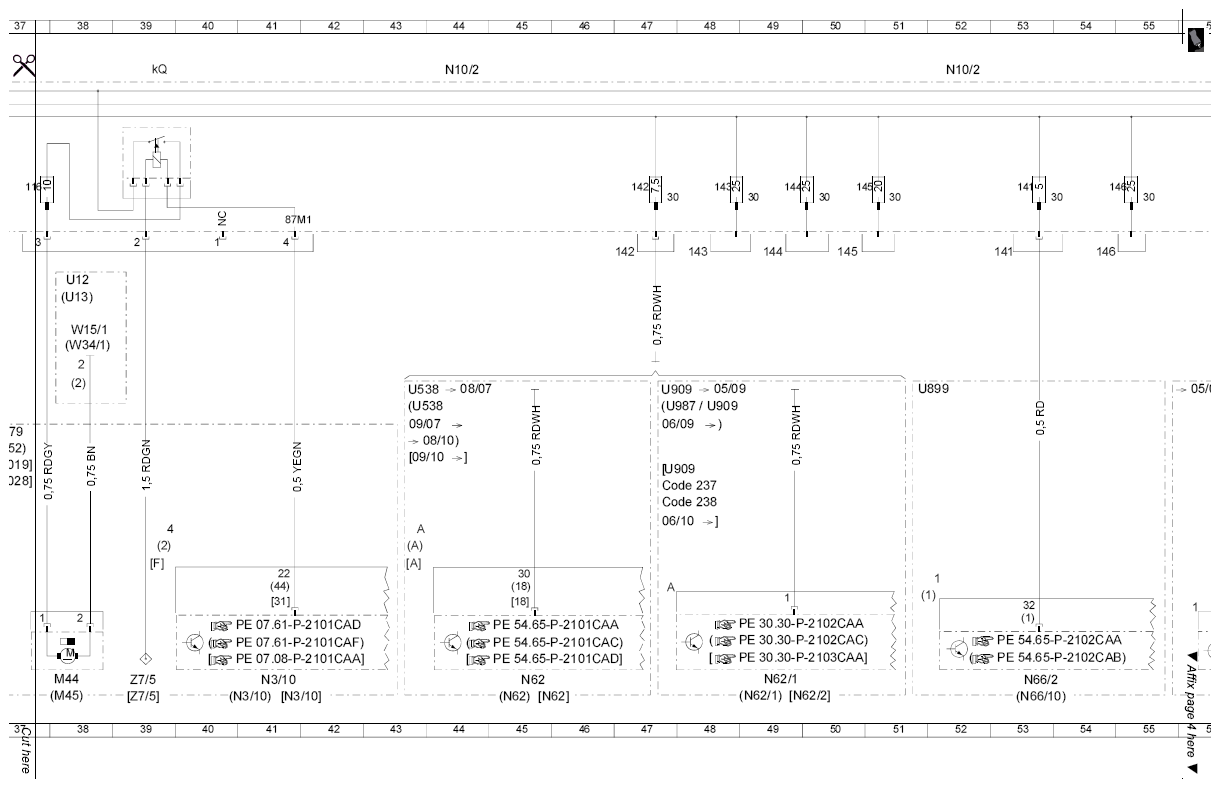

Fig 3: Rear SAM Control Unit With Fuse And Relay Module (N10/2) Wiring Diagram (3 Of 4)
G07542606Courtesy of MERCEDES-BENZ USA

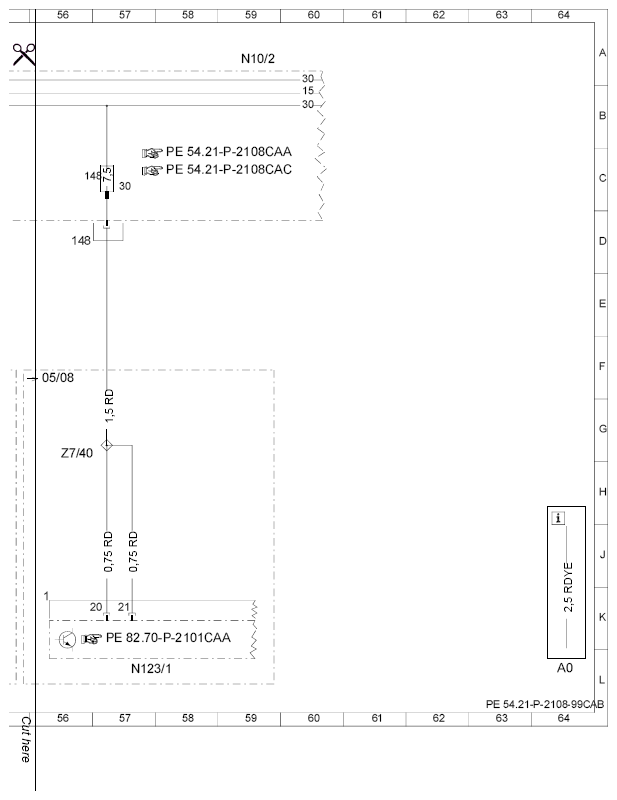

Fig 4: Rear SAM Control Unit With Fuse And Relay Module (N10/2) Wiring Diagram (4 Of 4)
G07542607Courtesy of MERCEDES-BENZ USA
