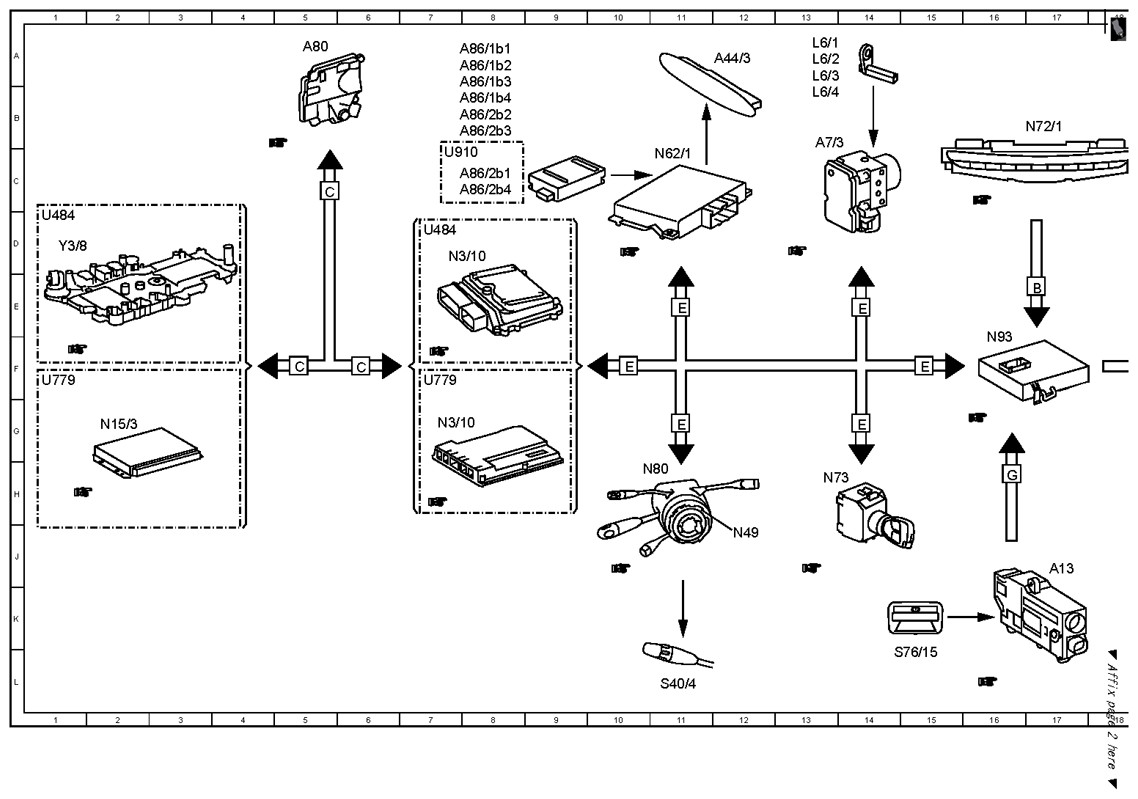

| A01 |
Explanation of CAN and LIN-Bus |
23L |

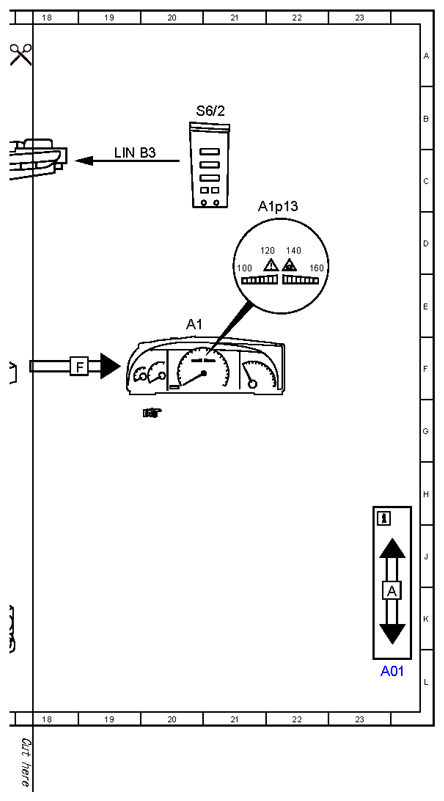

| A1 |
Instrument cluster |
20E |
| A13 |
Electric parking brake control unit |
17J |
| A1p13 |
Multifunction display |
22C |
| A44/3 |
Rear PTS warning indicator |
12A |
| A7/3 |
Traction system hydraulic unit |
13B |
| A80 |
Intelligent servo module for DIRECT SELECT |
5A |
| A86/1b1 |
Left outer radar sensor, front bumper |
7A |
| A86/1b2 |
Left inner radar sensor, front bumper |
7A |
| A86/1b3 |
Right inner radar sensor, front bumper |
7B |
| A86/1b4 |
Right outer radar sensor, front bumper |
7B |
| A86/2b1 |
Right outer radar sensor, rear bumper |
7C |
| A86/2b2 |
Right inner radar sensor, rear bumper |
7B |
| A86/2b3 |
Left inner radar sensor, rear bumper |
7B |
| A86/2b4 |
Left outer radar sensor, rear bumper |
7C |
| L6/1 |
Left front rpm sensor |
13A |
| L6/2 |
Right front rpm sensor |
13A |
| L6/3 |
Left rear rpm sensor |
13A |
| L6/4 |
right rear rpm sensor |
13B |
| LIN B3 |
OBF LIN |
19B |
| N15/3 |
ETC [EGS] control unit |
2G |
| N3/10 |
ME-SFI [ME] control unit |
7G |
| N3/10 |
ME-SFI [ME] control unit |
7D |
| N49 |
Steering angle sensor |
12J |
| N62/1 |
Radar sensors control unit (SGR) |
11C |
| N72/1 |
Upper control panel control unit |
17B |
| N73 |
EIS [EZS] control unit |
13H |
| N80 |
Steering column module |
11H |
| N93 |
Central gateway control unit |
16F |
| S40/4 |
CC [TPM] switch |
11L |
| S6/2 |
Cockpit switch group |
20B |
| S76/15 |
Electric parking brake switch |
15L |
| U484 |
Valid for M273 ME |
1D |
| U484 |
Valid for M273 ME |
7D |
| U779 |
Valid for engine 275 |
1F |
| U779 |
Valid for engine 275 |
7F |
| U910 |
Valid for Blind Spot Assist |
7C |
| Y3/8 |
Electric control unit (VGS) |
1D |
