Electrical function schematic, blind spot assistant - PE54.71-P-2051-97CAC

MODEL 216.3 as of model year 2011 with CODE 237 (Active Blind Spot Assist)

Code: Designation: Position:
1 Circuit 15, status 10H
10 Switch off radar sensor system, request 6H
11 Close range radar sensors, signal 9G
12 Far range radar sensor, signal 9E
13 Blind Spot Assist readiness and warning indicator, request 17F
13 Blind Spot Assist readiness and warning indicator, request 25F
14 Blind Spot Assist readiness and warning indicator, actuation 20H
15 Instrument cluster, message 17F
15 Instrument cluster, message 15D
16 Combination switch, status 11E
16 Combination switch, status 9B
17 Steering angle sensor, signal 11E
17 Steering angle sensor, signal 12B
18 Warning tone, request 16F
18 Warning tone, request 15E
19 Yaw rate, lateral and longitudinal acceleration sensor, signal 8F
19 Yaw rate, lateral and longitudinal acceleration sensor, signal 4E
2 Blind spot assist, status 12F
2 Blind spot assist, status 17E
20 Service brake, status 8F
21 Shift stage, status 19J
21 Shift stage, status 13H
22 Wheel-specific service brake braking torque, request 3F
23 Wheel-specific service brake braking torque, actuation 3D
3 Engine running, signal 12H
4 Drivetrain operational, signal 13H
5 Wheel speed, signal 4G
5 Wheel speed, signal 9F
6 Wheel rotation direction, signal 4G
6 Wheel rotation direction, signal 9F
7 Long-range radar, request 7C
8 GPS, signal 13F
8 GPS, signal 20E
9 Short-range radar sensor system OFF/ON, request 17E
9 Short-range radar sensor system OFF/ON, request 13F
A1 Instrument cluster 15B
A1h1 Warning buzzer 15B
A1p13 Multifunction display 15C
A40/3 COMAND control unit 23C
A7/3 Traction system hydraulic unit 2B
A86/1b2 Left inner radar sensor, front bumper 7H
A86/1b3 Right inner radar sensor, front bumper 7J
A86/2b1 Right outer radar sensor, rear bumper 7J
A86/2b4 Left outer radar sensor, rear bumper 7J
A89 DTR control unit 7A
B24/15 Yaw rate, lateral and longitudinal acceleration sensor 4C
CAN B Interior CAN 22G
CAN E Chassis CAN 15G
CAN E Chassis CAN 11D
CAN E Chassis CAN 6G
CAN E Chassis CAN 15G
CAN E Chassis CAN 11J
CAN F Central CAN 22F
CAN F Central CAN 16F
CAN F Central CAN 20K
CAN H Vehicle dynamics CAN 4D
CAN H Vehicle dynamics CAN 7E
CAN S Sensor CAN 8G
Code 423 5-speed automatic transmission 22G
Code 427 7-speed automatic transmission 22K
L6/1 Left front rpm sensor 2K
L6/2 Right front rpm sensor 2K
L6/3 Left rear rpm sensor 2L
L6/4 right rear rpm sensor 2L
M21/1 Left electrically adjustable and heated outside mirror 30K
M21/1e2 Left Blind Spot Assist readiness and warning indicator 30K
M21/2 Right electrically adjustable and heated outside mirror 30K
M21/2e2 Right Blind Spot Assist readiness and warning indicator 30K
N15/3 ETC [EGS] control unit 23H
N3/10 ME-SFI [ME] control unit 18J
N3/10 ME-SFI [ME] control unit 15J
N47-5 ESP control unit 2F
N49 Steering angle sensor 12C
N62/2 Video and radar sensor system control unit 11F
N69/1 Left door control unit 26E
N69/2 Right door control unit 26F
N73 EIS [EZS] control unit 11K
N80 Steering column module 11A
N93 Central gateway control unit 18F
S4 Combination switch 8B
Y3/8n4 Fully integrated transmission control (VGS) control unit 23K

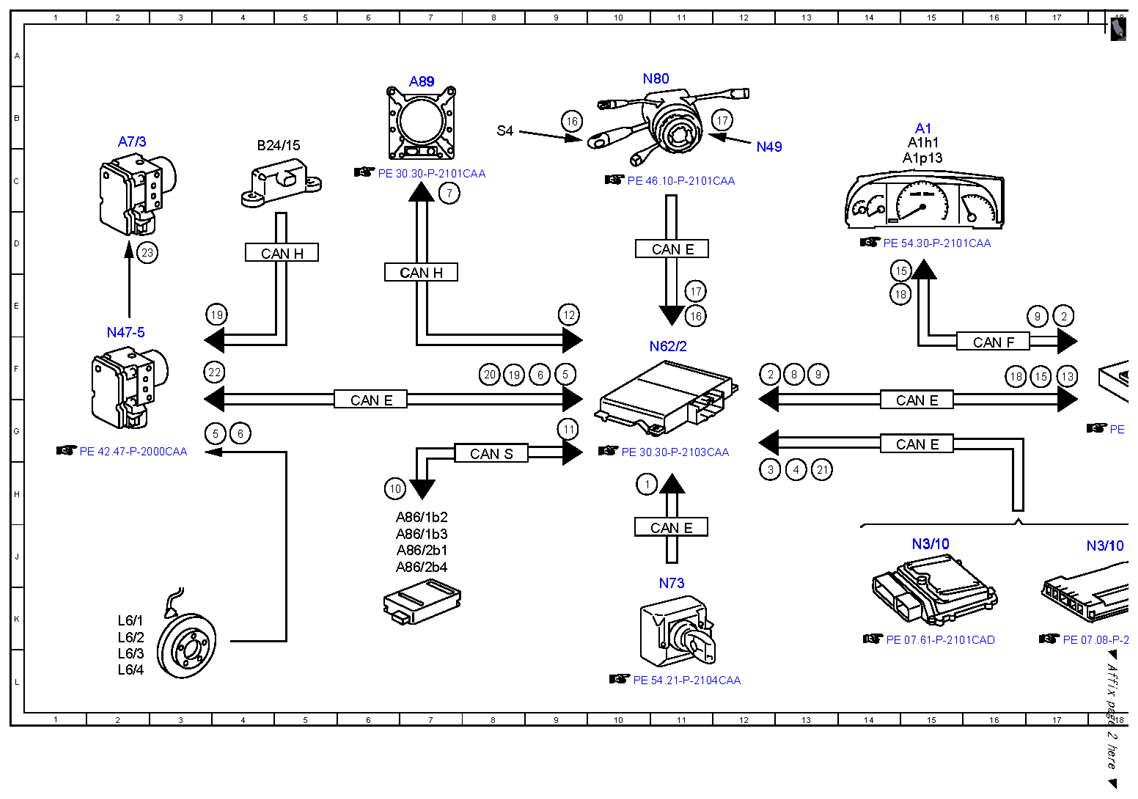

Fig 1: Blind Spot Assistant - Electrical Function Schematic (1 Of 2)
G10111466Courtesy of MERCEDES-BENZ USA

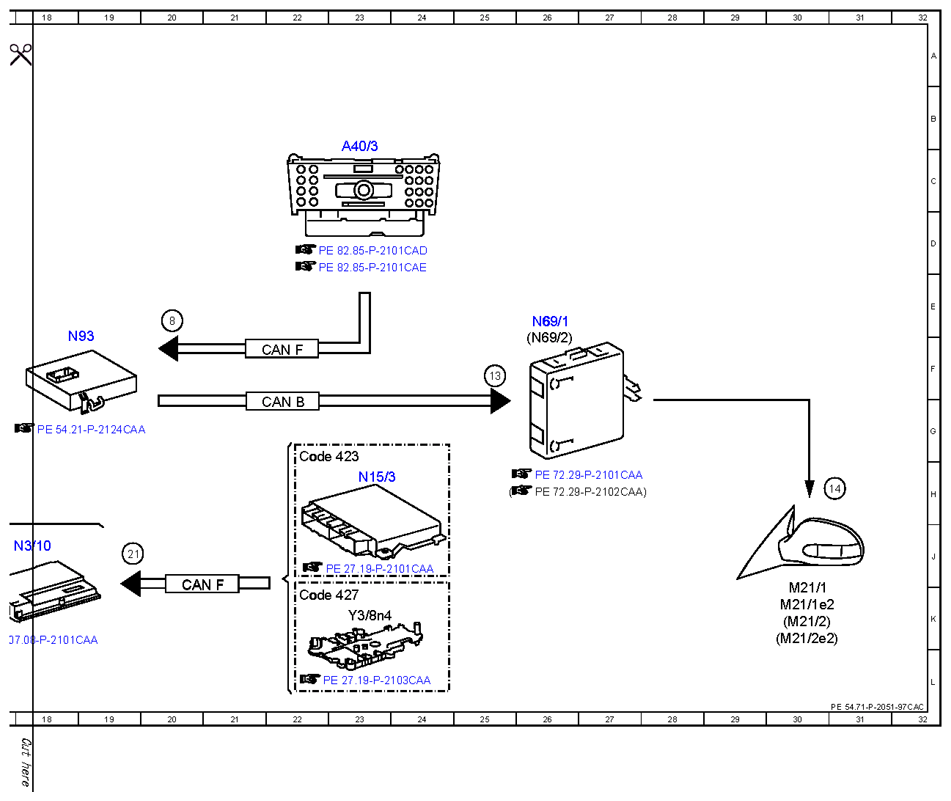

Fig 2: Blind Spot Assistant - Electrical Function Schematic (2 Of 2)
G10111467Courtesy of MERCEDES-BENZ USA
