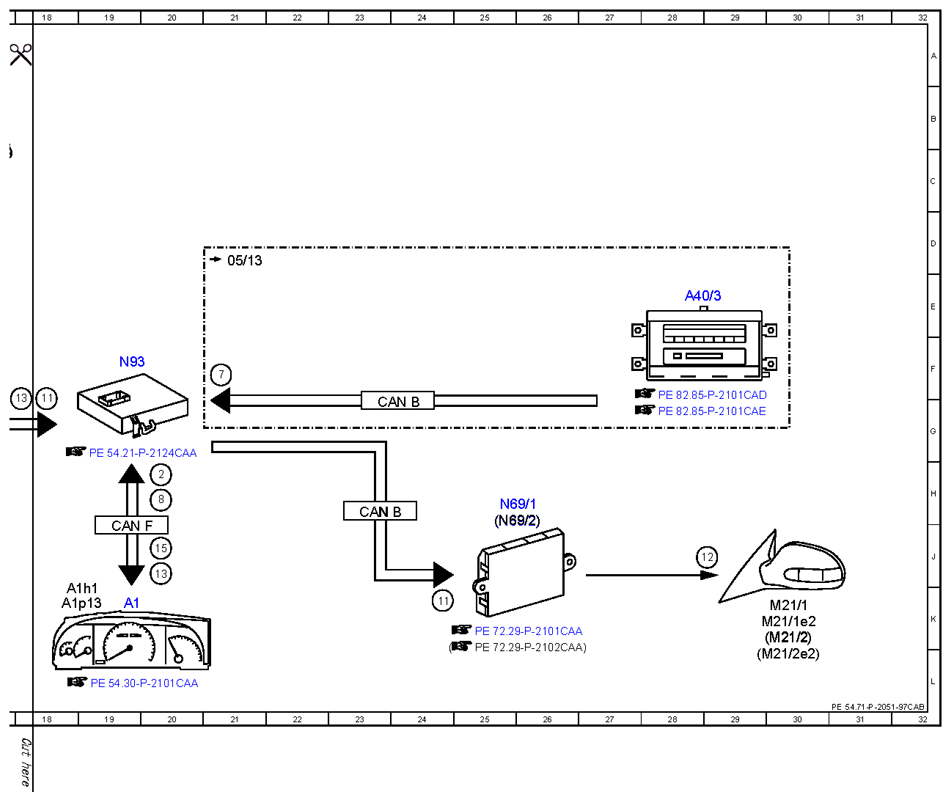

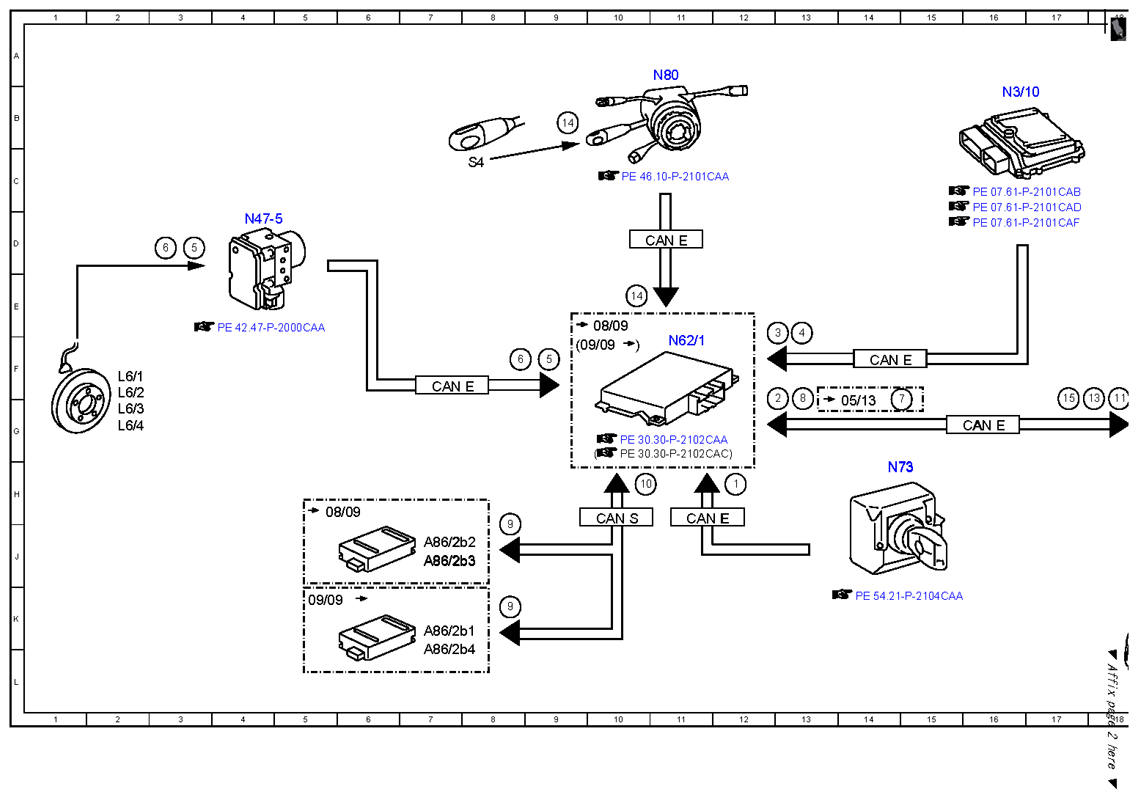

Electrical function schematic, blind spot assistant - PE54.71-P-2051-97CAB
MODEL 216.3 up to 31.8.10 with CODE (234) Blind Spot Assist as of Model Year 2009 /YoM 08
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 12H |
| 10 | Close range radar sensors, signal | 10H |
| 11 | Blind Spot Assist readiness and warning indicator, request | 24K |
| 11 | Blind Spot Assist readiness and warning indicator, request | 18F |
| 12 | Blind Spot Assist readiness and warning indicator, actuation | 28J |
| 13 | Instrument cluster, message | 20J |
| 13 | Instrument cluster, message | 18F |
| 14 | Combination switch, status | 10E |
| 114 | Combination switch, status | 9B |
| 15 | Warning tone, request | 20J |
| 15 | Warning tone, request | 17F |
| 2 | Blind spot assist, status | 20H |
| 2 | Blind spot assist, status | 13F |
| 3 | Engine running, signal | 13E |
| 4 | Drivetrain operational, signal | 13E |
| 5 | Wheel speed, signal | 9F |
| 5 | Wheel speed, signal | 3D |
| 6 | Wheel rotation direction, signal | 3D |
| 6 | Wheel rotation direction, signal | 9F |
| 7 | GPS, signal | 15F |
| 7 | GPS, signal | 21F |
| 8 | Short-range radar sensor system OFF/ON, request | 20H |
| 8 | Short-range radar sensor system OFF/ON, request | 13F |
| 9 | Switch off radar sensor system, request | 8J |
| 9 | Switch off radar sensor system, request | 8K |
| A1 | Instrument cluster | 19K |
| A1h1 | Warning buzzer | 18K |
| A1p13 | Multifunction display | 18K |
| A40/3 | COMAND control unit | 28E |
| A86/2b1 | Right outer radar sensor, rear bumper | 7K |
| A86/2b2 | Right inner radar sensor, rear bumper | 7J |
| A86/2b3 | Left inner radar sensor, rear bumper | 7J |
| A86/2b4 | Left outer radar sensor, rear bumper | 7L |
| CAN B | Interior CAN | 23G |
| CAN B | Interior CAN | 23H |
| CAN E | Chassis CAN | 11D |
| CAN E | Chassis CAN | 7F |
| CAN E | Chassis CAN | 16G |
| CAN E | Chassis CAN | 11H |
| CAN E | Chassis CAN | 14F |
| CAN F | Central CAN | 19J |
| CAN S | Sensor CAN | 10H |
| L6/1 | Left front rpm sensor | 2F |
| L6/2 | Right front rpm sensor | 2F |
| L6/3 | Left rear rpm sensor | 2G |
| L6/4 | right rear rpm sensor | 2G |
| M21/1 | Left electrically adjustable and heated outside mirror | 30K |
| M21/1e2 | Left Blind Spot Assist readiness and warning indicator | 30K |
| M21/2 | Right electrically adjustable and heated outside mirror | 30K |
| M21/2e2 | Right Blind Spot Assist readiness and warning indicator | 30L |
| N3/10 | ME-SFI [ME] control unit | 16B |
| N47-5 | ESP control unit | 4D |
| N62/1 | Radar sensors control unit (SGR) | 11F |
| N69/1 | Left door control unit | 25H |
| N69/2 | Right door control unit | 25J |
| N73 | EIS [EZS] control unit | 14H |
| N80 | Steering column module | 11A |
| N93 | Central gateway control unit | 19F |
| S4 | Combination switch | 8C |
