Electrical function schematic for blind spot assistant - PE54.71-U-2051-97CAA

Code: Designation: Position:
1 Multifunction steering wheel button group, signal 13J
1 Multifunction steering wheel button group, signal 13E
2 Blind spot assist, status 13H
2 Blind spot assist, status 9F
3 Warning tone, request 13J
3 Warning tone, request 11F
4 Steering angle, signal 7E
5 Close range radar sensors, signal 8H
6 Vehicle speed, signal 5F
7 Instrument cluster, message 13J
7 Instrument cluster, message 11F
8 Blind spot assist warning lamp, request 17F
A1 Instrument cluster 12J
A86/2b1 Right outer radar sensor, rear bumper 2K
A86/2b4 Left outer radar sensor, rear bumper 2K
CAN B Interior CAN 15F
CAN E Chassis CAN 12D
CAN E Chassis CAN 7D
CAN E Chassis CAN 10F
CAN F Central CAN 12H
CAN H Vehicle dynamics CAN 4F
CAN S Sensor CAN 7J
M21/1e2 Left Blind Spot Assist readiness and warning indicator 21G
M21/1e2 Left Blind Spot Assist readiness and warning indicator 21G
N47-5 ESP control unit 2E
N62/1 Radar sensors control unit (SGR) 7E
N69/1 Left door control unit 18E
N69/2 Right door control unit 18E
N80 Steering column module 7A
N93 Central gateway control unit 12E
S110 Left multifunction steering wheel button group 1A
S111 Right multifunction steering wheel button group 3A

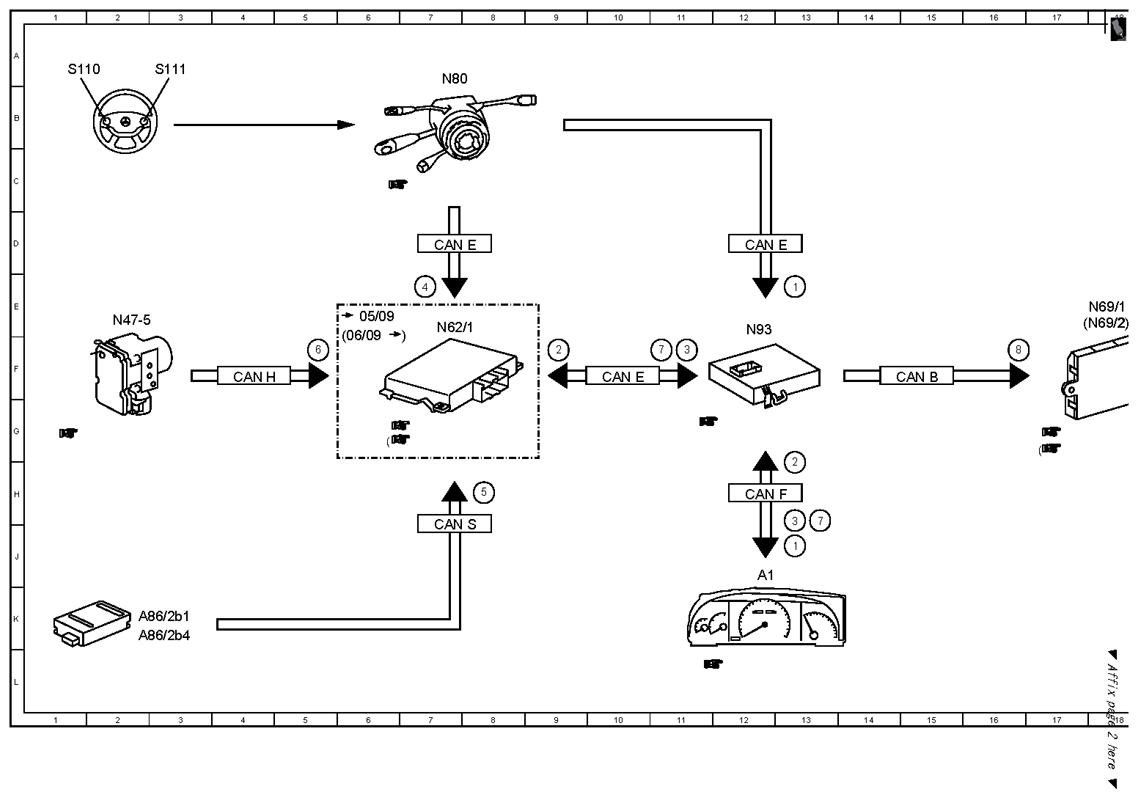

Fig 1: Blind Spot Assistant - Electrical Function Schematic (1 Of 2)
G10111472Courtesy of MERCEDES-BENZ USA
Fig 2: Blind Spot Assistant - Electrical Function Schematic (2 Of 2)
G10111473Courtesy of MERCEDES-BENZ USA
