| 1 |
Circuit 15, status |
16E |
| 10 |
Seat adjustment switch group, status |
23J |
| 10 |
Seat adjustment switch group, status |
16G |
| 10 |
Seat adjustment switch group, status |
10F |
| 11 |
Driver power window, outside mirror and trunk lid switch group, status |
10F |
| 11 |
Driver power window, outside mirror and trunk lid switch group, status |
16G |
| 11 |
Driver power window, outside mirror and trunk lid switch group, status |
22F |
| 12 |
Interior lamp, request |
13E |
| 12 |
Interior lamp, request |
11F |
| 13 |
COMAND controller unit, status |
11F |
| 13 |
COMAND controller unit, status |
13G |
| 14 |
Multifunction steering wheel button group, signal |
6E |
| 14 |
Multifunction steering wheel button group, signal |
10B |
| 15 |
Steering column adjustment switch, status |
6D |
| 16 |
Steering angle, signal |
7E |
| 16 |
Steering angle, signal |
6A |
| 17 |
Roof system switch, status |
13E |
| 17 |
Roof system switch, status |
11F |
| 18 |
Vehicle speed, signal |
15E |
| 18 |
Vehicle speed, signal |
12F |
| 19 |
Automatic lane recognition, status |
16C |
| 19 |
Automatic lane recognition, status |
13F |
| 2 |
Service brake, status |
5F |
| 20 |
Automatic lane recognition warning, request |
7C |
| 20 |
Automatic lane recognition warning, request |
9B |
| 21 |
Steering wheel vibration motor, actuation |
11B |
| 22 |
Steering wheel vibration motor, status |
7E |
| 22 |
Steering wheel vibration motor, status |
8B |
| 22 |
Steering wheel vibration motor, status |
10B |
| 23 |
Active Lane Keeping Assist, status |
7J |
| 24 |
Active brake intervention, request |
7H |
| 24 |
Active brake intervention, request |
3H |
| 3 |
Wheel speed, signal |
5F |
| 4 |
Camera image, signal |
6J |
| 5 |
Accelerator pedal sensor, signal |
15G |
| 5 |
Accelerator pedal sensor, signal |
8F |
| 6 |
Reverse gear, status |
15H |
| 6 |
Reverse gear, status |
8F |
| 7 |
Upper control panel control unit, request |
16F |
| 7 |
Upper control panel control unit, request |
9F |
| 8 |
Rotary light switch, status |
16F |
| 8 |
Rotary light switch, status |
20C |
| 8 |
Rotary light switch, status |
9F |
| 9 |
Combination switch, status |
6E |

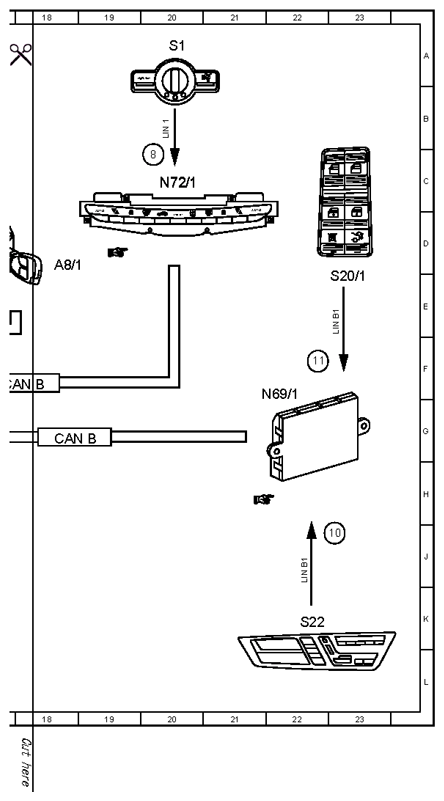

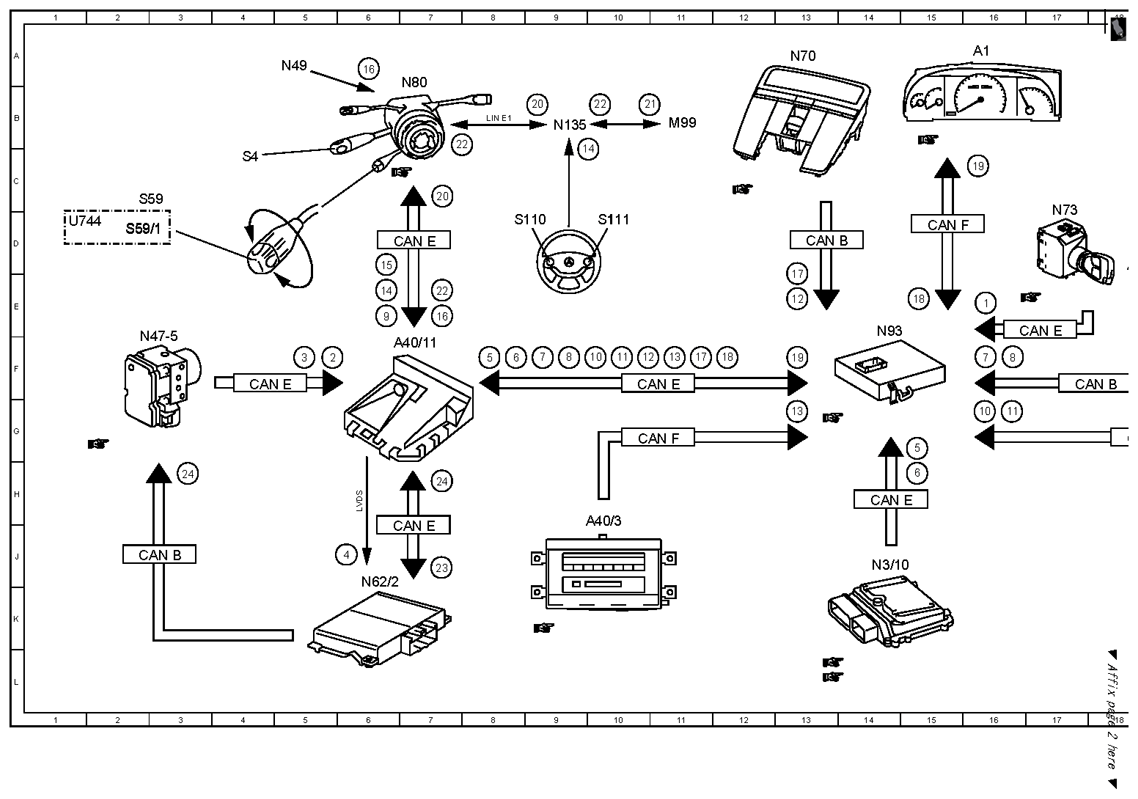

| A1 |
Instrument cluster |
16A |
| A40/11 |
Multifunction camera |
6F |
| A40/3 |
COMAND control unit |
10J |
| A8/1 |
Transmitter key |
18D |
| CAN B |
Interior CAN |
13D |
| CAN B |
Interior CAN |
18G |
| CAN B |
Interior CAN |
17F |
| CAN B |
Interior CAN |
3J |
| CAN E |
Chassis CAN |
14H |
| CAN E |
Chassis CAN |
10F |
| CAN E |
Chassis CAN |
17E |
| CAN E |
Chassis CAN |
7D |
| CAN E |
Chassis CAN |
4F |
| CAN E |
Chassis CAN |
7J |
| CAN F |
Central CAN |
15D |
| CAN F |
Central CAN |
10G |
| LIN 1 |
Instrument panel LIN |
20B |
| LIN B1 |
Front door LIN |
23E |
| LIN B1 |
Front door LIN |
22J |
| LIN E1 |
Steering LIN |
8B |
| LVDS |
Low voltage differential signal |
6H |
| M99 |
Steering wheel vibration motor |
11B |
| N135 |
Steering wheel electronics |
9B |
| N3/10 |
ME-SFI [ME] control unit |
14J |
| N47-5 |
ESP control unit |
3F |
| N49 |
Steering angle sensor |
5A |
| N62/2 |
Video and radar sensor system control unit |
6J |
| N69/1 |
Left door control unit |
22F |
| N70 |
Overhead control panel control unit |
13A |
| N72/1 |
Upper control panel control unit |
20C |
| N73 |
EIS [EZS] control unit |
17D |
| N80 |
Steering column module |
7B |
| N93 |
Central gateway control unit |
14E |
| S1 |
Rotary light switch |
20A |
| S110 |
Left multifunction steering wheel button group |
8D |
| S111 |
Right multifunction steering wheel button group |
10D |
| S20/1 |
Driver power window, outside mirror and trunk lid switch group |
23E |
| S22 |
Left front seat operation switch group |
22K |
| S4 |
Combination switch |
4C |
| S59 |
Steering column adjustment switch |
2C |
| S59/1 |
Steering column adjustment/steering wheel heater switch |
2D |
| U744 |
Valid for steering wheel heater |
1D |
