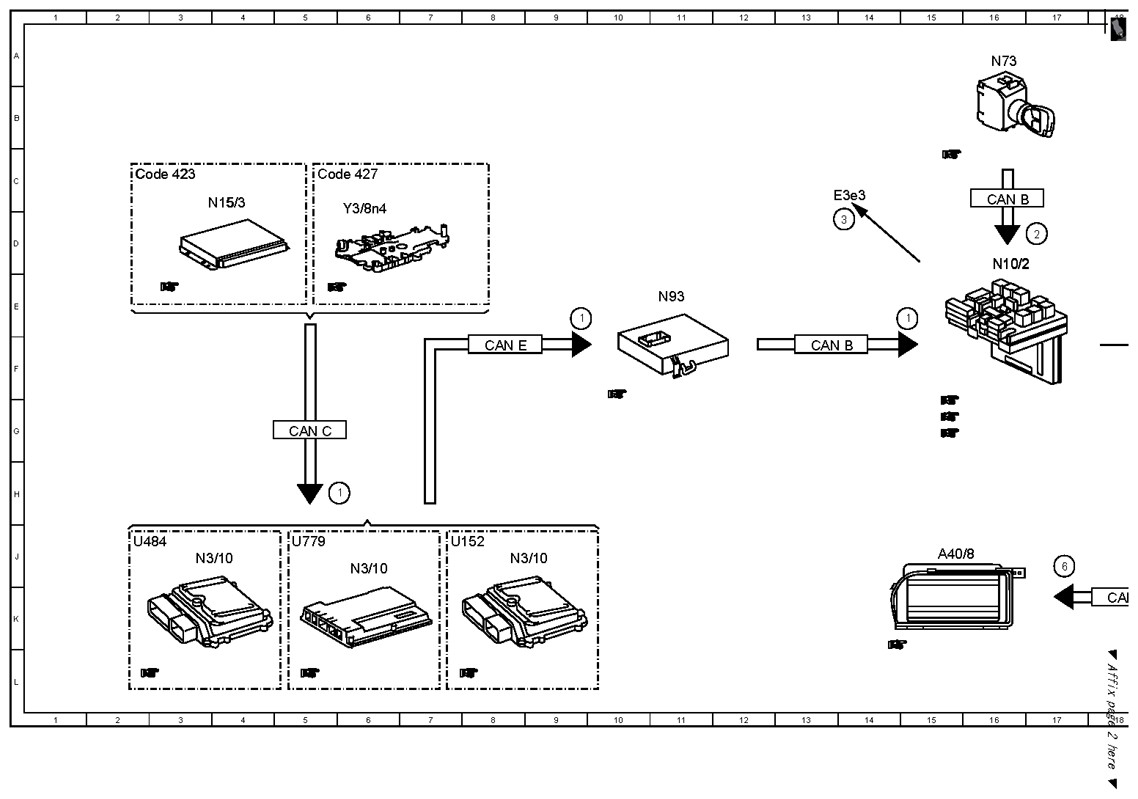

| 1 |
Reverse gear, status |
6H |
| 1 |
Reverse gear, status |
9E |
| 1 |
Reverse gear, status |
15E |
| 2 |
Circuit 15, status |
17D |
| 3 |
Backup lamp, actuation |
14D |
| 4 |

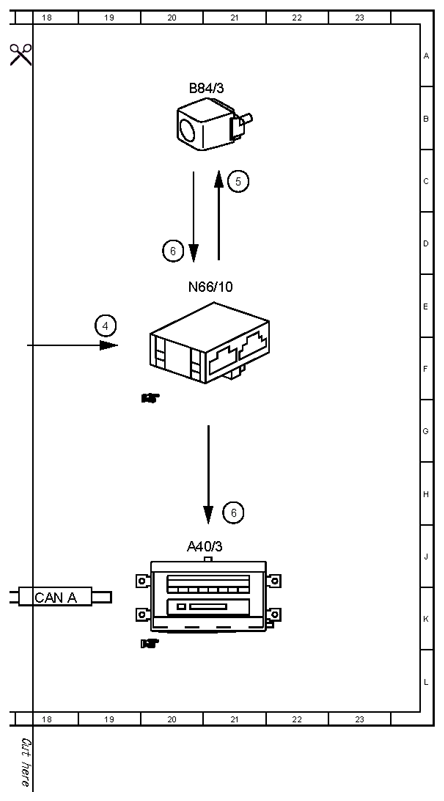

Backup camera power supply module, actuation |
19E |
| 5 |
Backup camera, actuation |
21C |
| 6 |
Backup camera, signal |
17J |
| 6 |
Backup camera, signal |
21H |
| 6 |
Backup camera, signal |
20D |
| A40/3 |
COMAND control unit |
20J |
| A40/8 |
COMAND display |
15J |
| B84/3 |
Backup camera |
20B |
| CAN A |
Telematics CAN |
18K |
| CAN B |
Interior CAN |
16C |
| CAN B |
Interior CAN |
13F |
| CAN C |
Drive train CAN |
5G |
| CAN E |
Chassis CAN |
8F |
| Code 423 |
5-speed automatic transmission |
2C |
| Code 427 |
7-speed automatic transmission |
5C |
| E3e3 |
Left backup lamp |
14C |
| N10/2 |
Rear SAM control unit with fuse and relay module |
16D |
| N15/3 |
ETC [EGS] control unit |
4C |
| N3/10 |
ME-SFI [ME] control unit |
3J |
| N3/10 |
ME-SFI [ME] control unit |
8J |
| N3/10 |
ME-SFI [ME] control unit |
6J |
| N66/10 |
Backup camera voltage supply module |
20E |
| N73 |
EIS [EZS] control unit |
16A |
| N93 |
Central gateway control unit |
11E |
| U152 |
Valid for engine 156 |
7J |
| U484 |
Valid for M273 ME |
2J |
| U779 |
Valid for engine 275 |
5J |
| Y3/8n4 |
Fully integrated transmission control (VGS) control unit |
6D |
