| 1 |
Circuit 15, status |
15H |
| 10 |
Warning message issue, request |
10F |
| 10 |
Warning message issue, request |
9J |
| 2 |
Multifunction steering wheel button group, signal |
16F |
| 2 |
Multifunction steering wheel button group, signal |
22E |
| 3 |
Steering angle, signal |
14E |
| 4 |
Steering column adjustment switch, status |
16F |
| 4 |
Steering column adjustment switch, status |
21G |
| 5 |
Combination switch, status |
17F |
| 5 |
Combination switch, status |
20F |
| 6 |
Cruise control, request |
17F |
| 6 |
Cruise control, request |
20E |
| 7 |
Rain/light sensor, status |
8E |
| 7 |
Rain/light sensor, status |
7B |
| 7 |
Rain/light sensor, status |
8E |
| 8 |
Audio operation, status |
7F |
| 8 |
Audio operation, status |
13F |
| 9 |
Time, signal |
9H |
| 9 |
Time, signal |
13F |

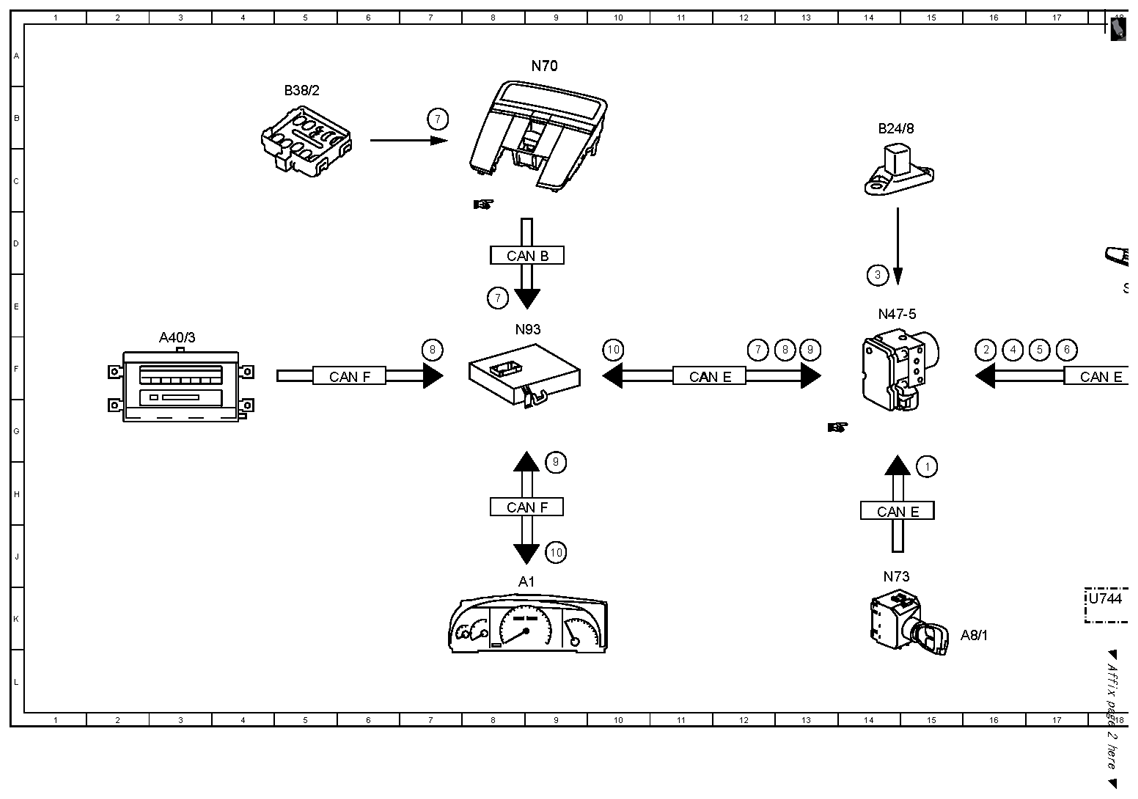

| A1 |
Instrument cluster |
8J |
| A40/3 |
COMAND control unit |
3F |
| A8/1 |
Transmitter key |
16K |
| B24/8 |
Attention assist sensor |
14B |
| B38/2 |
Rain/light sensor |
5B |
| CAN B |
Interior CAN |
8D |
| CAN E |
Chassis CAN |
11F |
| CAN E |
Chassis CAN |
18F |
| CAN E |
Chassis CAN |
14H |
| CAN F |
Central CAN |
8H |
| CAN F |
Central CAN |
6F |
| LIN E1 |
Steering LIN |
21D |
| N47-5 |
ESP control unit |
14E |
| N70 |
Overhead control panel control unit |
9A |
| N73 |
EIS [EZS] control unit |
14J |

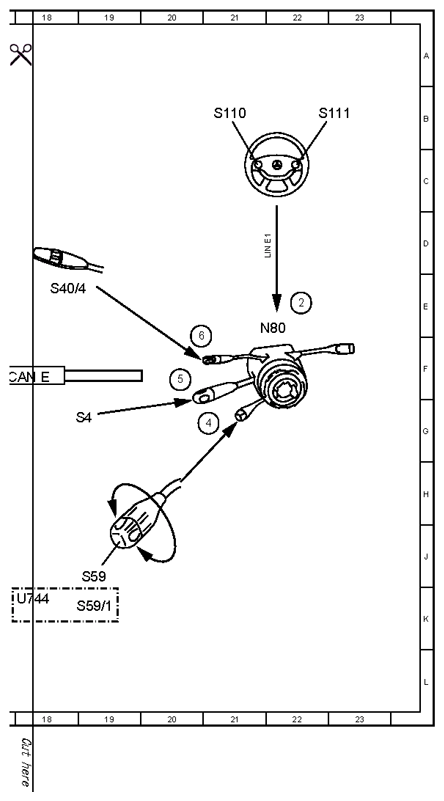

| N80 |
Steering column module |
22E |
| N93 |
Central gateway control unit |
8E |
| S110 |
Left multifunction steering wheel button group |
21B |
| S111 |
Right multifunction steering wheel button group |
22B |
| S4 |
Combination switch |
19G |
| S40/4 |
CC [TPM] switch |
18E |
| S59 |
Steering column adjustment switch |
19J |
| S59/1 |
Steering column adjustment/steering wheel heater switch |
19K |
| U744 |
Valid for steering wheel heater |
18K |
