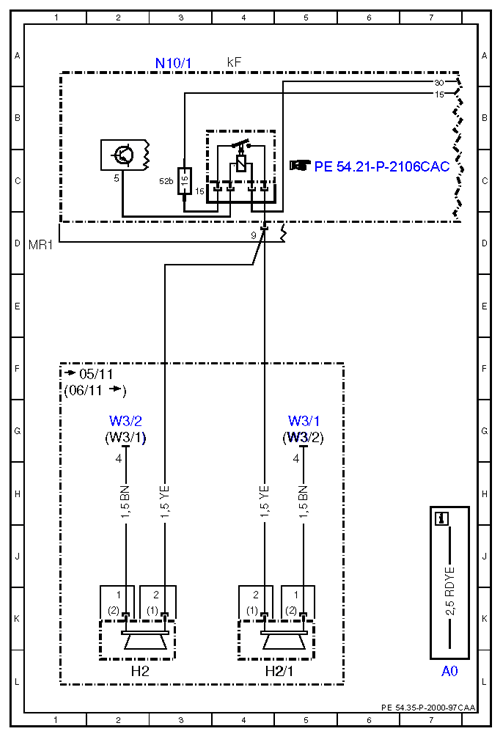

Wiring diagram for signal system - PE54.35-P-2000-97CAA
MODEL 216.3
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 7L |
| H2 | Left fanfare horn | 2L |
| H2/1 | Right fanfare horn | 4L |
| N10/1 | Front SAM control unit with fuse and relay module | 3A |
| N10/1f52b | Fuse 52B | 3C |
| N10/1kF | Fanfare horn relay | 4A |
| W3/1 | Ground (right front wheelhouse) | 2G |
| W3/1 | Ground (right front wheelhouse) | 5G |
| W3/2 | Ground (left front wheelhouse) | 5G |
| W3/2 | Ground (left front wheelhouse) | 2G |
