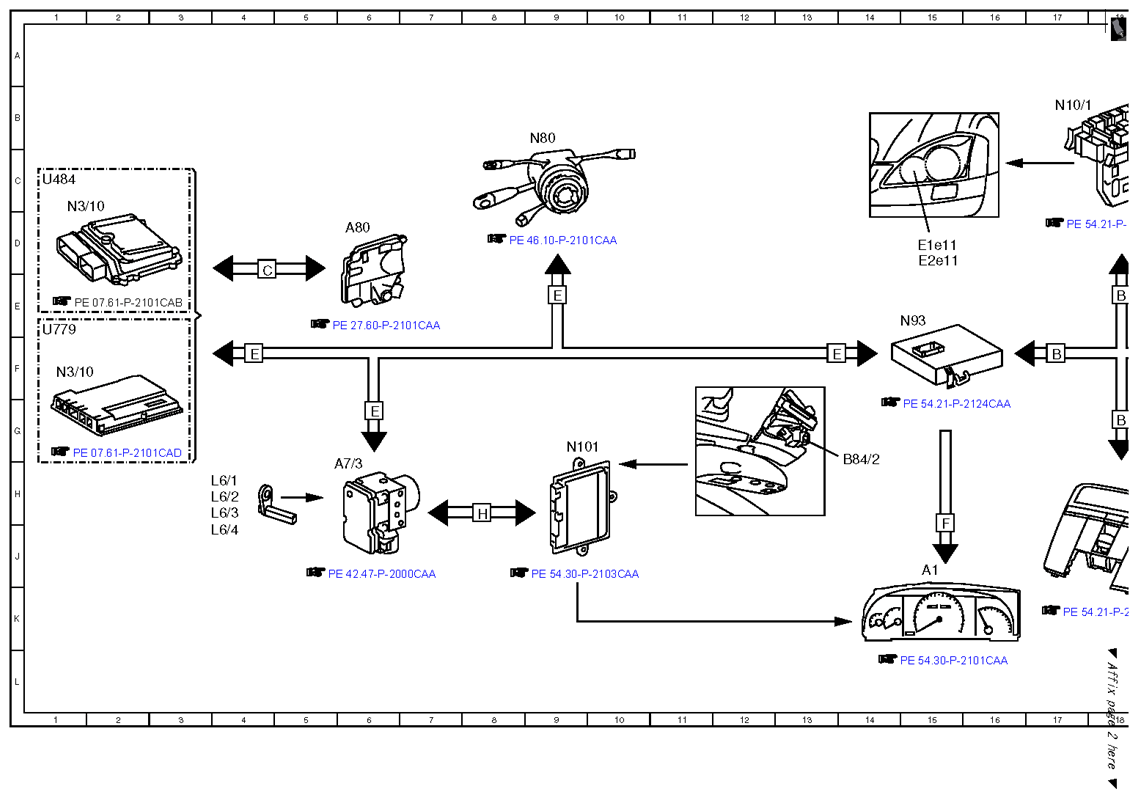

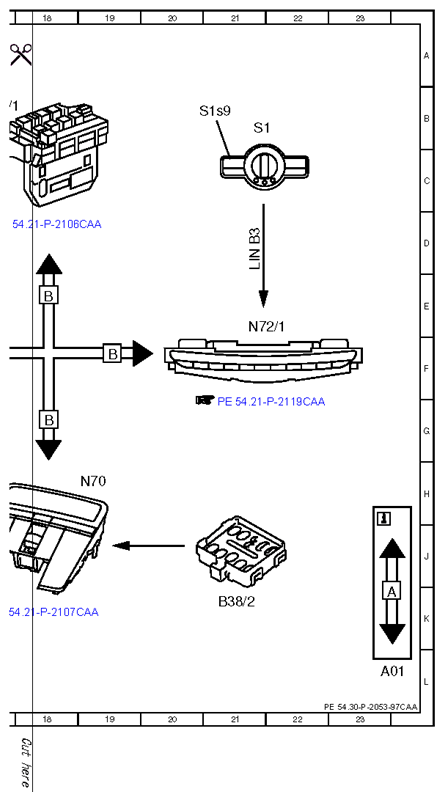

Electrical function schematic for night view assist - PE54.30-P-2053-97CAA
MODEL 216 with CODE (610) Night vision assist up to Model Year 08 /modification year 07
| Code: | Designation: | Position: |
|---|---|---|
| A01 | Explanation of CAN and LIN-Bus | 23L |
| A1 | Instrument cluster | 15J |
| A7/3 | Traction system hydraulic unit | 6H |
| A80 | Intelligent servo module for DIRECT SELECT | 6D |
| B38/2 | Rain/light sensor | 21K |
| B84/2 | Night vision assist camera | 13G |
| E1e11 | Left infrared lamp | 15D |
| E2e11 | Right infrared lamp | 15D |
| L6/1 | Left front rpm sensor | 4H |
| L6/2 | Right front rpm sensor | 4H |
| L6/3 | Left rear rpm sensor | 4H |
| L6/4 | right rear rpm sensor | 4J |
| LIN B3 | OBF LIN | 22D |
| N10/1 | Front SAM control unit with fuse and relay module | 17B |
| N101 | Night vision assist control unit | 9G |
| N3/10 | ME-SFI [ME] control unit | 2C |
| N3/10 | ME-SFI [ME] control unit | 2F |
| N70 | Overhead control panel control unit | 19H |
| N72/1 | Upper control panel control unit | 21E |
| N80 | Steering column module | 9B |
| N93 | Central gateway control unit | 15E |
| S1 | Rotary light switch | 22B |
| S1s9 | Night vision assist button | 21B |
| U484 | Valid for M273 ME | 1C |
| U779 | Valid for engine 275 | 1E |
