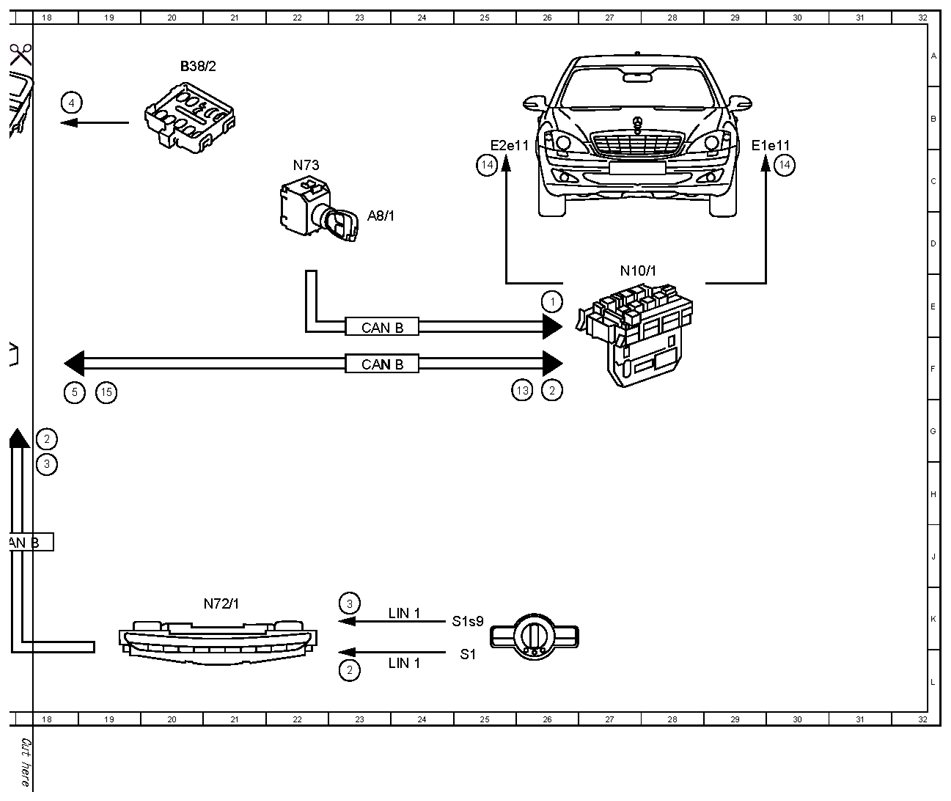

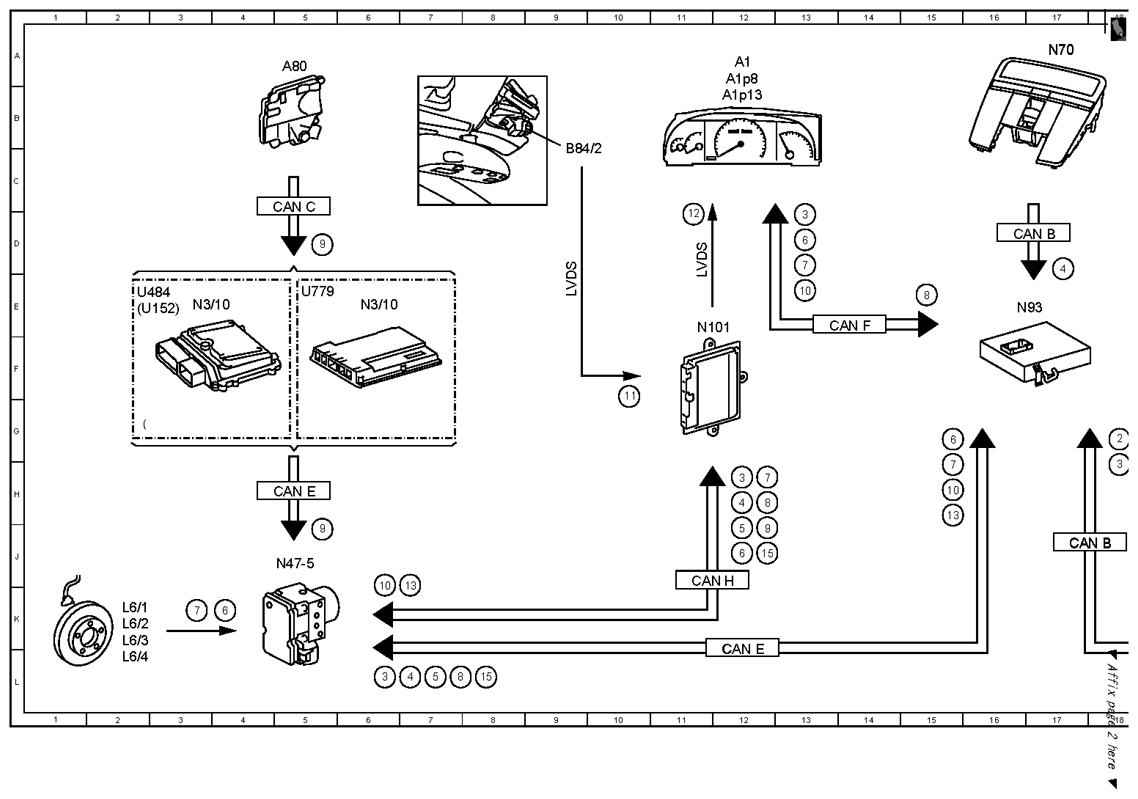

| 1 |
Circuit 15, status |
26E |
| 10 |
Night View Assist status |
6K |
| 10 |
Night View Assist status |
15H |
| 10 |
Night View Assist status |
13E |
| 11 |
Camera image, signal |
10G |
| 12 |
Night View Assist display, actuation |
11D |
| 13 |
Infrared lamp, request |
7K |
| 13 |
Infrared lamp, request |
15H |
| 13 |
Infrared lamp, request |
26F |
| 14 |
Infrared lamp, actuation |
25C |
| 14 |
Infrared lamp, actuation |
30C |
| 15 |
Infrared lamp, status |
8L |
| 15 |
Infrared lamp, status |
12J |
| 15 |
Infrared lamp, status |
19F |
| 2 |
Rotary light switch, status |
26F |
| 2 |
Rotary light switch, status |
23L |
| 2 |
Rotary light switch, status |
18G |
| 3 |
Night View Assist button status |
23K |
| 3 |
Night View Assist button status |
6L |
| 3 |
Night View Assist button status |
18H |
| 3 |
Night View Assist button status |
12H |
| 3 |
Night View Assist button status |
13D |
| 4 |
Rain/light sensor, status |
17D |
| 4 |
Rain/light sensor, status |
18B |
| 4 |
Rain/light sensor, status |
7L |
| 4 |
Rain/light sensor, status |
12H |
| 5 |
Low beams, actuation |
7L |
| 5 |
Low beams, actuation |
18F |
| 5 |
Low beams, actuation |
12J |
| 6 |
Wheel speed, signal |
15G |
| 6 |
Wheel speed, signal |
4K |
| 6 |
Wheel speed, signal |
13D |
| 6 |
Wheel speed, signal |
12J |
| 7 |
Wheel rotation direction, signal |
13D |
| 7 |
Wheel rotation direction, signal |
15H |
| 7 |
Wheel rotation direction, signal |
12H |
| 7 |
Wheel rotation direction, signal |
3K |
| 8 |
Vehicle speed, signal |
15E |
| 8 |
Vehicle speed, signal |
7L |
| 8 |
Vehicle speed, signal |
12H |
| 9 |
Selector lever position, status |
5D |
| 9 |
Selector lever position, status |
5J |
| 9 |
Selector lever position, status |
12J |
| A1 |
Instrument cluster |
12A |
| A1p13 |
Multifunction display |
12B |
| A1p8 |
Electronic speedometer |
12A |
| A8/1 |
Transmitter key |
23D |
| A80 |
Intelligent servo module for DIRECT SELECT |
5A |
| B38/2 |
Rain/light sensor |
20A |
| B84/2 |
Night vision assist camera |
9C |
| CAN B |
Interior CAN |
17D |
| CAN B |
Interior CAN |
23E |
| CAN B |
Interior CAN |
23F |
| CAN B |
Interior CAN |
17J |
| CAN C |
Drive train CAN |
5D |
| CAN E |
Chassis CAN |
5H |
| CAN E |
Chassis CAN |
12L |
| CAN F |
Central CAN |
14E |
| CAN H |
Vehicle dynamics CAN |
11J |
| E1e11 |
Left infrared lamp |
29C |
| E2e11 |
Right infrared lamp |
25C |
| L6/1 |
Left front rpm sensor |
2K |
| L6/2 |
Right front rpm sensor |
2K |
| L6/3 |
Left rear rpm sensor |
2K |
| L6/4 |
right rear rpm sensor |
2L |
| LIN 1 |
Instrument panel LIN |
24K |
| LIN 1 |
Instrument panel LIN |
24L |
| LVDS |
Low voltage differential signal |
9E |
| LVDS |
Low voltage differential signal |
11D |
| N10/1 |
Front SAM control unit with fuse and relay module |
27E |
| N101 |
Night vision assist control unit |
11E |
| N3/10 |
ME-SFI [ME] control unit |
3E |
| N3/10 |
ME-SFI [ME] control unit |
6E |
| N47-5 |
ESP control unit |
5J |
| N70 |
Overhead control panel control unit |
17A |
| N72/1 |
Upper control panel control unit |
21K |
| N73 |
EIS [EZS] control unit |
22C |
| N93 |
Central gateway control unit |
16E |
| S1 |
Rotary light switch |
25L |
| S1s9 |
Night vision assist button |
25K |
| U152 |
Valid for engine 156 |
2E |
| U484 |
Valid for M273 ME |
2E |
| U779 |
Valid for engine 275 |
5E |
