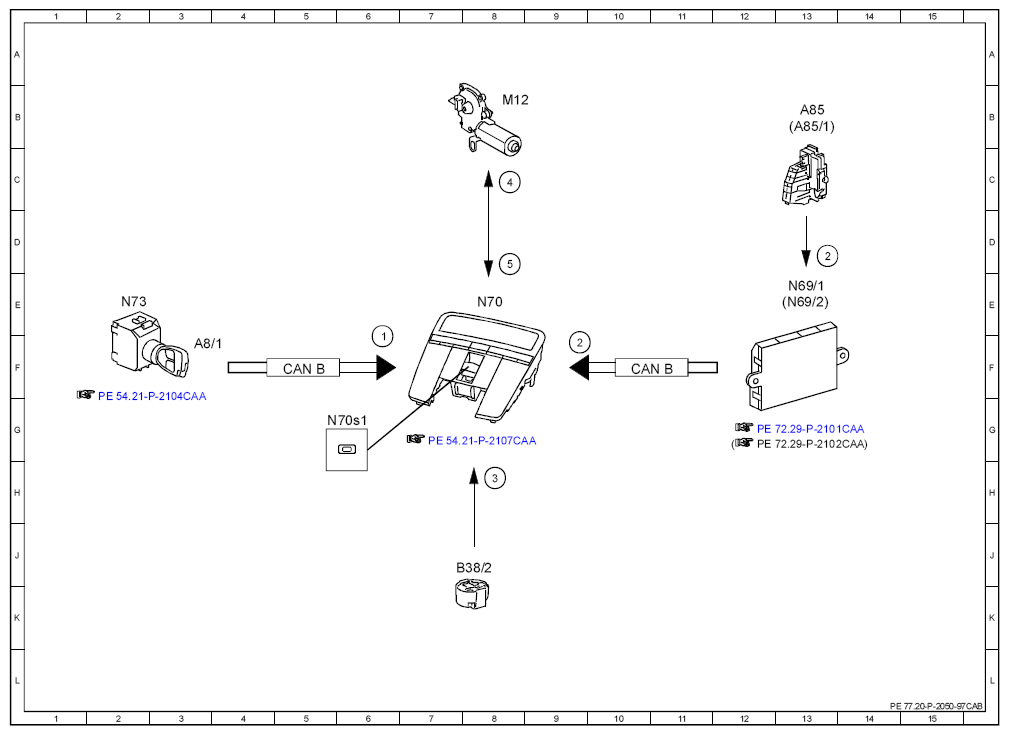

Electrical function schematic for tilting/sliding roof (SHD) - PE77.20-P-2050-97CAB
MODEL 216.3 as of model year 2009 /YoM 08
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 6F |
| 2 | Door rotary tumbler switch, status | 9F |
| 2 | Door rotary tumbler switch, status | 13D |
| 3 | Rain/light sensor, status | 8H |
| 4 | Roof system drive unit, actuation | 8C |
| 5 | Roof system drive unit, signal | 8D |
| A8/1 | Transmitter key | 3F |
| A85 | Left door lock unit | 13B |
| A85/1 | Right door lock unit | 13B |
| B38/2 | Rain/light sensor | 8J |
| CAN B | Interior CAN | 4F |
| CAN B | Interior CAN | 10F |
| M12 | Roof system drive unit | 8B |
| N69/1 | Left door control unit | 13E |
| N69/2 | Right door control unit | 13E |
| N70 | Overhead control panel control unit | 8E |
| N70s1 | Roof switch | 6G |
| N73 | EIS [EZS] control unit | 2E |
