Electrical function diagram for tilting/sliding roof (SHD) - PE77.20-U-2050-97CAA

Code:	Designation:	Position:
A01	Explanation of CAN and LIN-Bus	7L
M12	Roof system drive unit	3J
N70	Overhead control panel control unit	5E
N70s1	Roof switch	5G
N73	EIS [EZS] control unit	3A

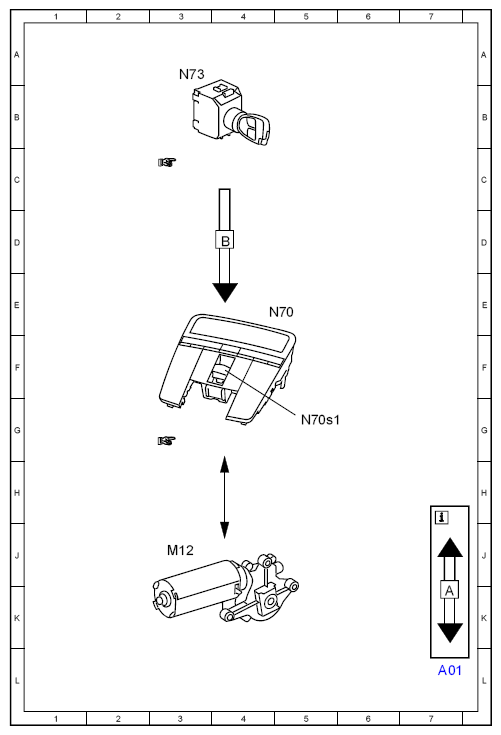

Fig 1: Tilting/Sliding Roof Electrical Function Diagram
