Remove/install pop-up bracket on tilting/sliding roof - AR77.20-P-1700SX

MODEL 221.0 with CODE (414) Power glass tilting/sliding roof

MODEL 221.1, 216.3

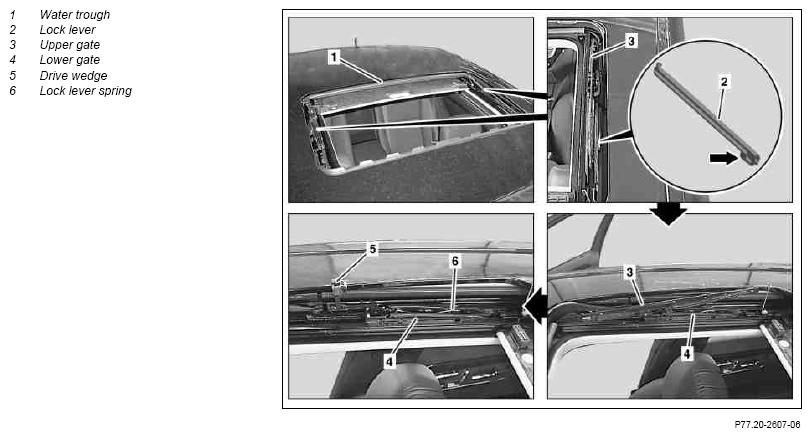

Fig 1: Identifying Roof Pop-Up Bracket Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Removing
1	Remove tilting/sliding roof cover		AR77.20-P-1000SX
2	Move upper gate (3) to tilt position
3	Unclip water trough (1) at side of sliding roof where the individual parts of the sliding roof mechanism are to be removed.	Carefully unclip water trough to prevent damaging water trough (1).
4	Slightly lift lock lever (2) at rear end (arrow) with pulling hook and slide lower gate (4) toward rear until rotation point of the drive wedge (5) is exposed.	Never actuate sliding roof mechanical system electrically when lock lever (2) is released, to prevent damaging the sliding roof mechanical system.
			Fig 2
5	Remove upper gate (3).	Observe installation position of upper gate (3).
6	Pivot drive wedge (5) upward and unclip
7	Unhook lock lever spring (6)
8	Slide lower gate (4) toward rear until lock lever (2) is exposed.
9	Unclip front lock lever (2) and slightly pull up.
10	Slide lower gate (1) toward front until rear end (arrow) of lock lever (2) is located on recess of guide rail.
11	Remove lock lever (2).
	Install
12	Slide lower gate (4) toward rear and clip in front lock lever (2).
13	Slide lower gate (4) toward front until rear end (arrow) of lock lever (2) arrests in recess on guide rail.
14	Install lock lever spring (6).
15	Lift lock lever (2) at rear end (arrow) with pulling hook and slide lower gate (4) toward rear until rotation point of drive wedge (5) is exposed.	Never actuate sliding roof mechanism electrically when lock lever (2) is released to prevent damaging the sliding roof mechanism.
			Fig 2
16	Clip in drive wedge (5) and pivot downward.
17	Slightly grease sliding roof mechanical system and insert upper gate (3).	Klueber Polylub GLY 801 grease	*BR00.45-Z-1046-06A
18	Slide lower gate (4) toward front until lock lever (2) arrests audibly.	Check whether lock lever (2) is arrested correctly.
19	Clip in rain trough (1).
20	Move upper gate (3) to tilting/sliding roof cover closed position
21	Instal tilting/sliding roof cover		AR77.20-P-1000SX

Fig 2: Identifying Pulling Hook (140 589 02 33 00)

Courtesy of MERCEDES-BENZ USA
