Tilting/sliding roof system (SR) drive unit, component description - GF77.20-P-5214SX

MODEL 221.0/1 with CODE (414) Power glass tilting/sliding roof up to Model Year 08

MODEL 216.3 up to Model Year 08

Shown on model 221.0

Location

The roof system drive unit is located below the left headliner on the front roof frame.

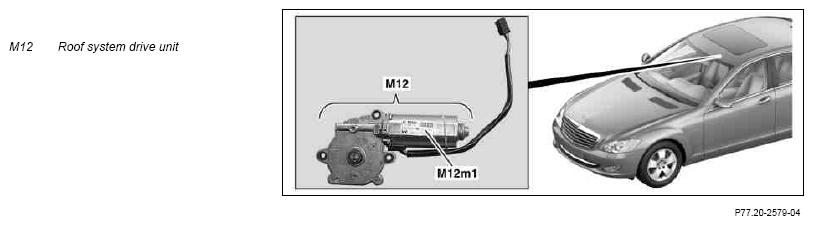

Fig 1: Identifying Roof System Drive Unit - Shown On Model 221.0

Courtesy of MERCEDES-BENZ USA

Task

Drive for tilting/sliding roof (SR).

Design

The roof system drive unit includes the following components:

Roof motor (M12m1)
Roof system Hall sensor 1 (M12b1)
Roof system Hall sensor 2 (M12b2)
Transfer case
Temperature protection switch

Function

The direction of rotation of the roof system motor is determined by the polarity of the actuating voltage from the overhead control panel control unit (N70)

The Hall sensors deliver signals to the overhead control panel control unit for position measurement and lock-up recognition. Moreover, the thermal protection switch protects against overload.
