Disconnect/connect battery ground line - AR54.10-P-0003CW

MODEL 204

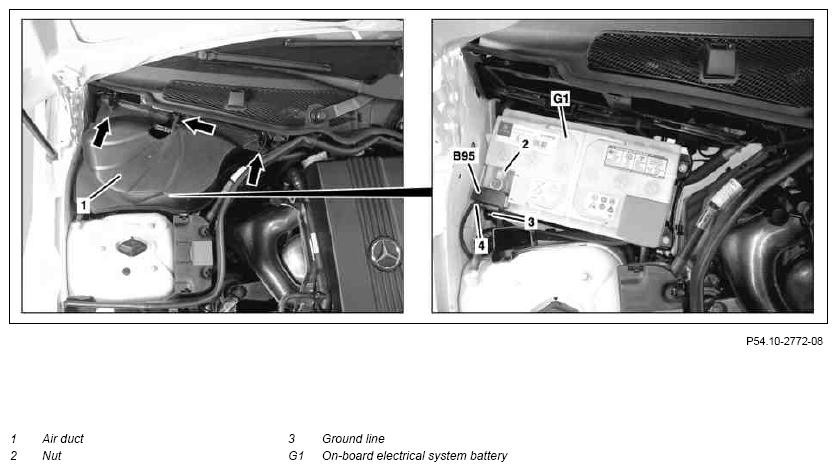

Fig 1: Identifying Battery Ground Line Components - Shown On Model 204.0 With Engine 271

Courtesy of MERCEDES-BENZ USA

Shown on model 204.0 with engine 271

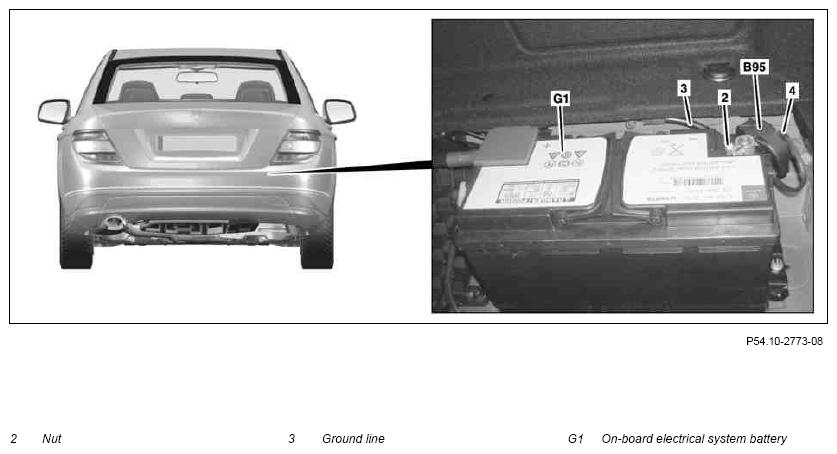

Fig 2: Identifying Battery Ground Line Components - Shown On Model 204.0 With Engine 646

Courtesy of MERCEDES-BENZ USA

Shown on model 204.0 with engine 646

	Disconnect, connect
	Risk of explosion  from explosive gas. Risk of poisoning and caustic burns  from swallowing battery electrolyte. Risk of injury  through burns to skin and eyes from battery acid or when handling damaged lead-acid batteries	No fires, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and glasses. Only pour battery acid into suitable and appropriately marked containers.	AS54.10-Z-0001-01A
	Notes on battery		AH54.10-P-0001-01A
1	Switch off all electrical consumers and the ignition	All electrical consumers must be switched off. They may otherwise be damaged when the ground line (3) is disconnected/connected.
2.1	Unclip air duct (1) (arrows) and remove	MODEL 204.0 with ENGINE 271, 272, 274, 276, 651 MODEL 204.2 with ENGINE 271, 272, 274, 276, 651 MODEL 204.3 with ENGINE 271, 274, 276, 651 MODEL 204.9
2.2	Lift luggage compartment floor covering	MODEL 204.0 with ENGINE 156, 642, 646 MODEL 204.3 with ENGINE 156
2.3	Remove rear load compartment floor and intermediate bottom	MODEL 204.2 with ENGINE 156, 642, 646
			AR68.80-P-5800CX
3	Loosen nut (2) and remove ground line (3) from negative terminal of on-board electrical system battery (G1)	Nut, battery cable to on-board electrical system battery negative terminal/positive terminal	*BA54.10-P-1006-01F
4	Using a diode test lamp, check the electrical system for voltage between the positive line of the on-board electrical system battery (G1) and the disconnected ground line (3)	MODEL 204 with CODE B03 (ECO start/stop function) Cover positive lines. Risk of short circuit! If the diode test lamp lights up, the on-board electrical system is still active because of a defect in the electrical system. ↓ Detach ground line from additional battery for ECO start/stop function (G113)
		MODEL 204.9 with CODE B03 (ECO start/stop function)	AR54.10-P-0007CY
		MODEL 204.0/2/3 with CODE B03 (ECO start/stop function) After this the electrical system is to be repaired upon completion of the work carried out.	AR54.10-P-0007CW
5	Connect in the reverse order
6	Reset clock	MODEL 204 with CODE 510 (Audio 20 with CD changer) with CODE 523 (MB Audio 20 radio)
