Windshield washer system - inspect fluid level, adjust to correct level - AP82.35-P-8210CW

MODEL 204.0/2/3/9

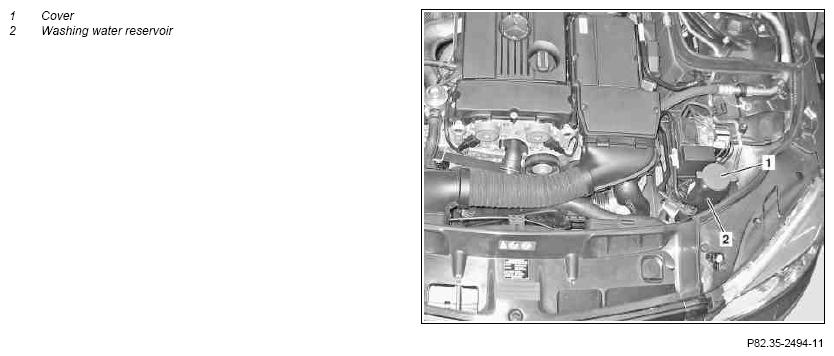

Fig 1: Identifying Washing Water Reservoir And Cover

Courtesy of MERCEDES-BENZ USA

MODIFICATION NOTES

31.1.11

Value changed: Windshield washer fluid

Model 204.0/3 without code 600/614/615/616/618/621/622/875

	Checking
	Risk of fire and explosion caused by ignition of window washing fluid or antifreeze and their vapors. Risk of poisoning caused by swallowing window washing fluid or antifreeze or inhaling their vapors. Risk of injury or physical irritations caused by contact of window washing fluid or antifreeze with eyes, mucous membranes or skin.	Wear protective clothing and tight fitting safety glasses. No fire, open light or ignition sources. Avoid contact with eyes, mucous membranes and skin. When working with window washing fluids or antifreeze, do not eat, drink, or smoke. Do not inhale vapors and ensure sufficient ventilation in the working area. Store window washing fluid and antifreeze leakfree in safely closed original containers and out of children's reach only.	AS82.35-Z-0001-01A
1	Open engine hood and raise to vertical position
2	Remove cover (1) and fill washer fluid reservoir (2) with washing water	Observe mixing ratio as per the table on the packaging of the windshield washer fluid and antifreeze.
		Windshield washer fluid	*BF82.35-P-1001-01G
	Windshield washer fluid concentrate	Sheet 371.0	BB00.40-P-0371-00A
3	Close washer fluid reservoir (2) with cover (1)
4	Close engine hood

WINDSHIELD WASHER SYSTEM FILLING CAPACITY

Number	Designation			Model 204.0/3 without code 600/614/615/616/618/621/622/875	Model 204.0/3 with code 600/614/615/616/618/621/622/875, Model 204.2/9
BF82.35-P-1001-01G	Windshield washer fluid	Filling capacity	Liters	3.5	6.0
