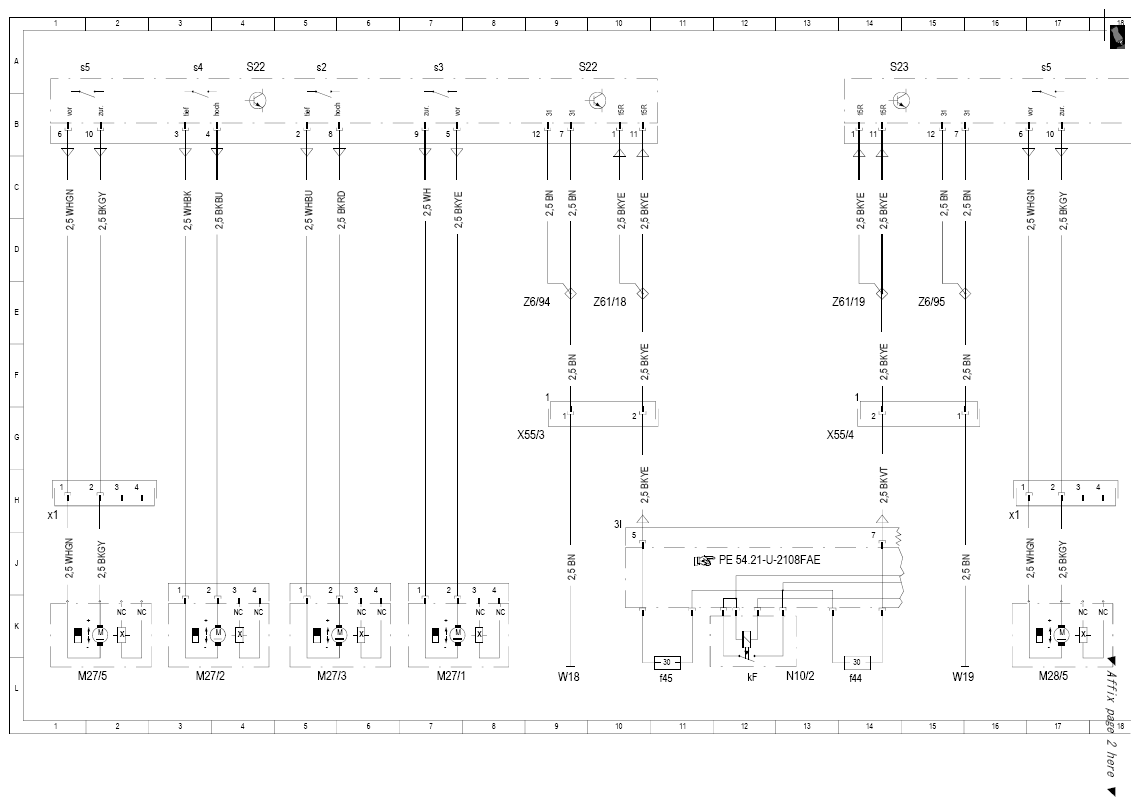

| M27/1 |
Driver seat fore/aft adjustment motor |
7 L |
| M27/2 |
Driver seat height adjustment motor |
3 L |
| M27/3 |
Driver seat inclination adjustment motor |
5 L |
| M27/5 |
Driver seat backrest inclination adjustment motor |
2 L |
| M27/5x1 |
Seat backrest inclination adjustment motor electrical connector, driver seat |
1 H |

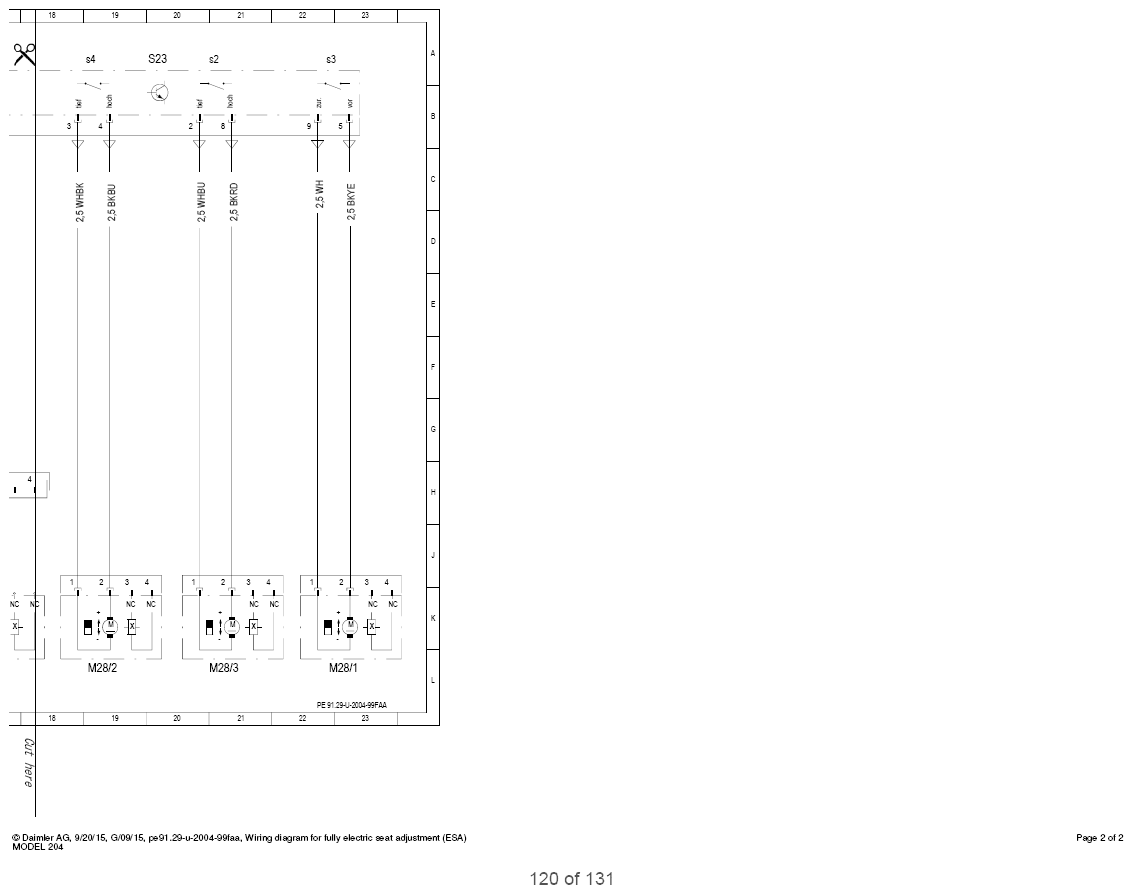

| M28/1 |
Front passenger seat fore/aft adjustment motor |
23 L |
| M28/2 |
Front passenger seat height adjustment motor |
19 L |
| M28/3 |
Front passenger seat inclination adjustment motor |
21 L |
| M28/5 |
Front passenger seat backrest inclination adjustment motor |
17 L |
| M28/5x1 |
Seat backrest inclination adjustment motor electrical connector, front passenger seat |
16 H |
| N10/2 |
Rear SAM control module with fuse and relay module |
13 L |
| N10/2f44 |
Fuse 44 |
14 L |
| N10/2f45 |
Fuse 45 |
11 L |
| N10/2kF |
Seat adjustment relay |
12 L |
| S22 |
Left front seat adjustment switch group |
4 A |
| S22 |
Left front seat adjustment switch group |
10 A |
| S22s2 |
Left front seat inclination adjustment switch |
5 A |
| S22s3 |
Left front seat fore/aft adjustment switch |
7 A |
| S22s4 |
Left front seat height adjustment switch |
3 A |
| S22s5 |
Left front backrest adjustment switch |
1 A |
| S23 |
Right front seat adjustment switch group |
15 A |
| S23 |
Right front seat adjustment switch group |
20 A |
| S23s2 |
Right front seat inclination adjustment switch |
20 A |
| S23s3 |
Right front seat fore/aft adjustment switch |
22 A |
| S23s4 |
Right front seat height adjustment switch |
19 A |
| S23s5 |
Right front backrest adjustment switch |
17 A |
| W18 |
Left front seat crossmember ground point |
9 L |
| W19 |
Right front seat crossmember ground point |
15 L |
| X55/3 |
Driver seat contacting strip |
9 G |
| X55/4 |
Front passenger seat contacting strip |
14 G |
| Z6/94 |
Driver seat circuit 31 connector sleeve |
9 E |
| Z6/95 |
Front passenger seat circuit 31 connector sleeve |
15 E |
| Z61/18 |
Left seat circuit 15R connector sleeve |
10 E |
| Z61/19 |
Right seat circuit 15R connector sleeve |
14 E |
