Upper control panel control unit, component description - GF54.21-P-6040CW
MODEL 204.0/2 with CODE (873) Heated left and right front seats with CODE (220) Parktronic system (PTS) with CODE (540) Electric rear window roller blind with CODE (483) ADVANCED AGILITY package up to Model Year 2008/modification year 2007

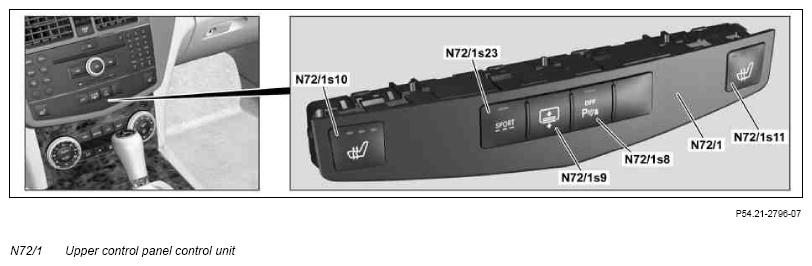

Illustrated on model 204.0
Location
The upper control panel control unit is located on the center console.
Design
The upper control panel control unit contains the following operating and display components:
- PARKTRONIC button (N72/1s8) (with code (220) Parktronic system (PTS))
- Rear window roller sun blind button (N72/1s9) (with code (540) Electric rear window roller blind)
- Left front seat heater button (N72/1s10) (with code (873) Right and left front seat heaters)
- Right front seat heater button (N72/1s11) (with code (873) Right and left front seat heaters)
- Vehicle dynamics button (N72/1s23) (with code (483) ADVANCED AGILITY package)
Task
The upper control panel control unit passes on the requests of the respective button via the dashboard LIN to the front SAM control unit with fuse and relay module (N10/1).
Discrete inputs
- Circuit 30
- Tml. 31
