On-board computer control, location of components - GF54.10-P-0002-01CW

Illustrated on model 204.0

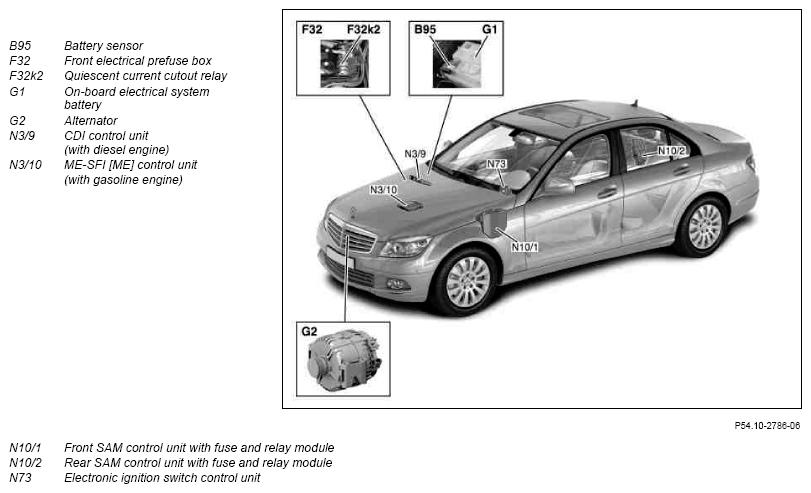

Fig 1: Identifying On-Board Computer Control Components - Shown On Model 204.0

Courtesy of MERCEDES-BENZ USA

On vehicles with a diesel engine the on-bord electrical system battery and the battery sensor are located in the trunk.
