Fuse assignment of front prefuse box - GF54.15-P-1256-07CE

MODEL 204.0/2 as of model year 2009 up to model year 2010

MODEL 204.9 up to model year 2010

Front prefuse

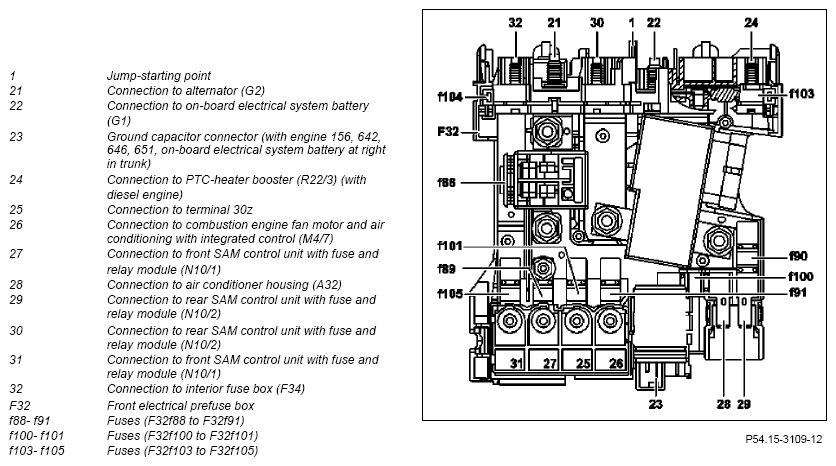

Fig 1: Identifying Front Pre-Fuse Box Components

G10084521

Courtesy of MERCEDES-BENZ USA

Fuse	Circuit	Line ID (line fused)	Fused function	Rating in amperes (A)
f88	30	35.0 BK	Alternator (G2) Starter (M1)	Pyrofuse
f89	30	16.0 RD	Front SAM control module with fuse and relay module (N10/1)	125
f90	30	6.0 RD	Valid except code (B03) ECO start/stop function: Rear SAM control unit with fuse and relay module (N10/2)	40
f91	30	10.0 RD	Internal combustion engine and air conditioning fan motor with integrated control (M4/7)	80
f100	30	4.0 RD	Blower regulator (A32n1)	40
f101	30	16.0 RD	Valid for front battery position: Front SAM control module with fuse and relay module (N10/1)	60
		4.0 RD	Valid for diesel engine and code (833) Great Britain version: Left rear door control unit fuse carrier (F64/1) Right rear door control unit fuse carrier (F64/2)
f103	30	16.0 RD	Valid for diesel engine: PTC heater booster (R22/3)	150
		4.0 RD	Valid for gasoline engine and code (833) Great Britain version: Left rear door control unit fuse carrier (F64/1) Right rear door control unit fuse carrier (F64/2)
f104	30g	10.0 RD	Interior fuse box (F34)	70
f105	30g	16.0 RD	Front SAM control module with fuse and relay module (N10/1)	100
f106	30g	16.0 RD	Rear SAM control unit with fuse and relay module (N10/2)	150
f107 - f110	30	-	Reserve	-
