Remove/install SAM control unit with fuse and relay box in trunk - AR54.21-P-1258CW

MODEL 204.0/2/3

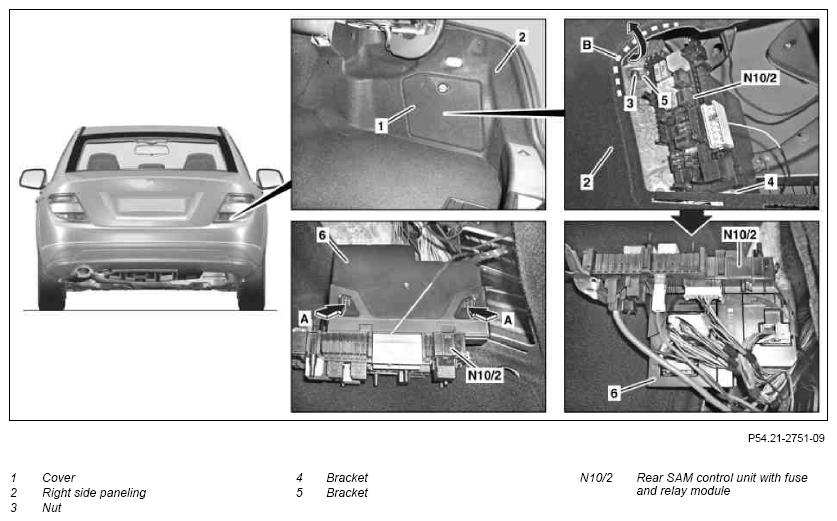

Fig 1: Identifying SAM Control Unit Fuse And Relay Box In Trunk Components

Courtesy of MERCEDES-BENZ USA

Shown on model 204.0

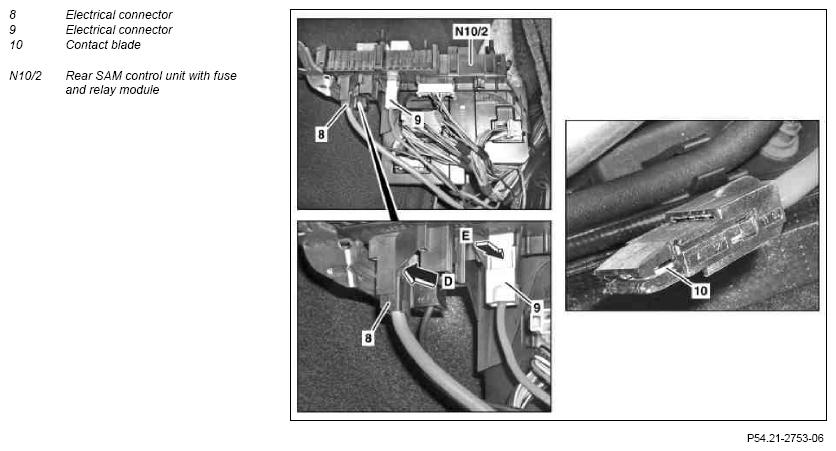

Fig 2: Identifying Rear SAM Control Unit Relay Module - Shown On Model 204.0

Courtesy of MERCEDES-BENZ USA

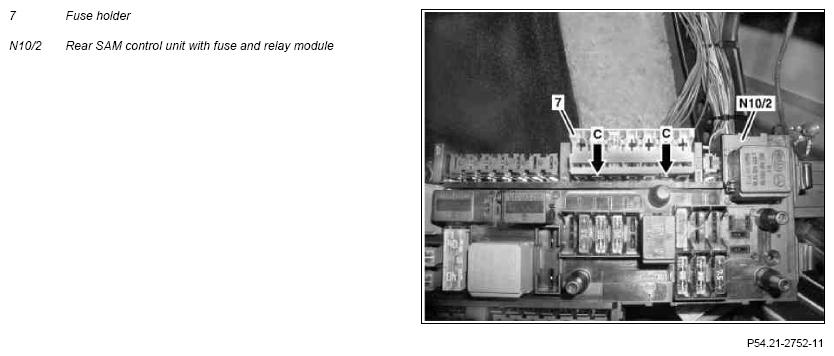

Fig 3: Identifying Rear SAM Control Unit Fuse And Relay Module - Shown On Model 204.0

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1	Buffer the basic data of the rear SAM control unit with fuse and relay module (N10/2) in STAR DIAGNOSIS	When replacing the rear SAM control unit with fuse and relay module (N10/2). Transmit buffered basic data.
	Connect STAR DIAGNOSIS and read out fault memory		AD00.00-P-2000-04A
2	Switch off ignition and remove transmitter key (A8/1) or KEYLESS-GO start/stop button (S2/3) from electronic ignition lock control unit (N73)	KEYLESS-GO start/stop button only with code (889) Keyless-Go
3.1	Remove cover (1) of the right-hand side paneling (2)	Model 204.0/3
3.2	Remove right inner paneling from side load compartment	Model 204.2
4	Unscrew nut (3) on bracket (5), tilt rear SAM control unit with fuse and relay module (N10/2) forward and guide out of the bracket (4)	Press right-hand side paneling (2) at the top to the side (area B) so that the rear SAM control unit with fuse and relay module (N10/2) can be removed. Model 204.0/3
		Ensure that no electrical lines are pinched otherwise there is the danger that the electrical system will be damaged.
5	Disconnect all electrical connectors and unclip fuse holder (7) of rear SAM control unit with fuse and relay module (N10/2) (arrows C). Then remove rear SAM control unit with fuse and relay module (N10/2).	The terminal 30 conducting electrical connectors (8, 9) must be disconnected first and contacted last in order to avoid short circuits. The number of electrical connectors and fuse holders (7) depends on the vehicle equipment. Release electrical connectors (8, 9) through pushing back tab using an extraction hook (arrows D, E) and disconnect.
		Pulling hook The contact blade (10) must make contact all the way forward in the connector housing of the electrical connectors (8, 9).	Fig 4
6	Compare equipment of new rear SAM control unit with fuse and relay module (N10/2) with old rear SAM control unit with fuse and relay module (N10/2) and adapt equipment if necessary	When replacing the rear SAM control unit with fuse and relay module (N10/2).
7	Install in the reverse order

Fig 4: Identifying Pulling Hook (140 589 02 33 00)

Courtesy of MERCEDES-BENZ USA
