PARKTRONIC location of components - GF54.65-P-0003-01CW

Illustrated on model 204.0

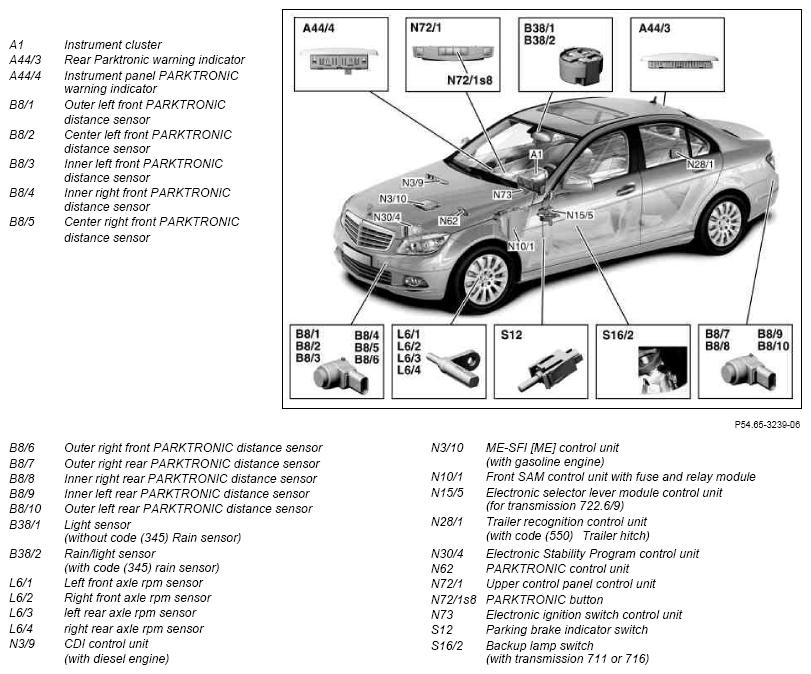

Fig 1: Overview Of PARKTRONIC Components - Shown On Model 204.0

G10107272

Courtesy of MERCEDES-BENZ USA
