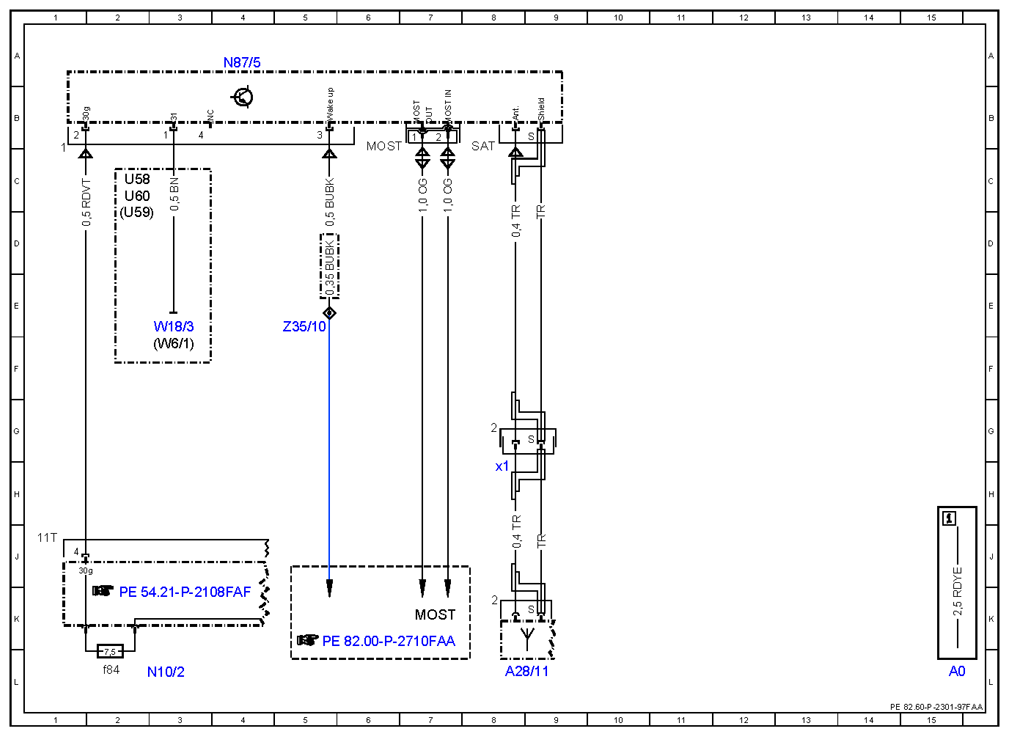

| A0 |
Color code key |
15L |
| A28/11 |
Multifunction antenna |
8L |
| A28/11x1 |
Multifunction antenna electrical connector |
8H |
| MOST |
Media Oriented System Transport |
7K |
| N10/2 |
Rear SAM control unit with fuse and relay module |
3L |
| N10/2f84 |
Fuse 84 |
2L |
| N87/5 |
Satellite digital audio radio (SDAR) control unit |
4A |
| U58 |
Valid for model 204.0 |
2C |
| U59 |
Valid for model 204.9 |
2D |
| U60 |
Valid for model 204.3 |
2C |
| W18/3 |
Left front seat crossmember ground point 2 |
3E |
| W6/1 |
Left taillamp trunk ground point |
3F |
| Z35/10 |
MOST wake-up signal connector sleeve |
5E |
