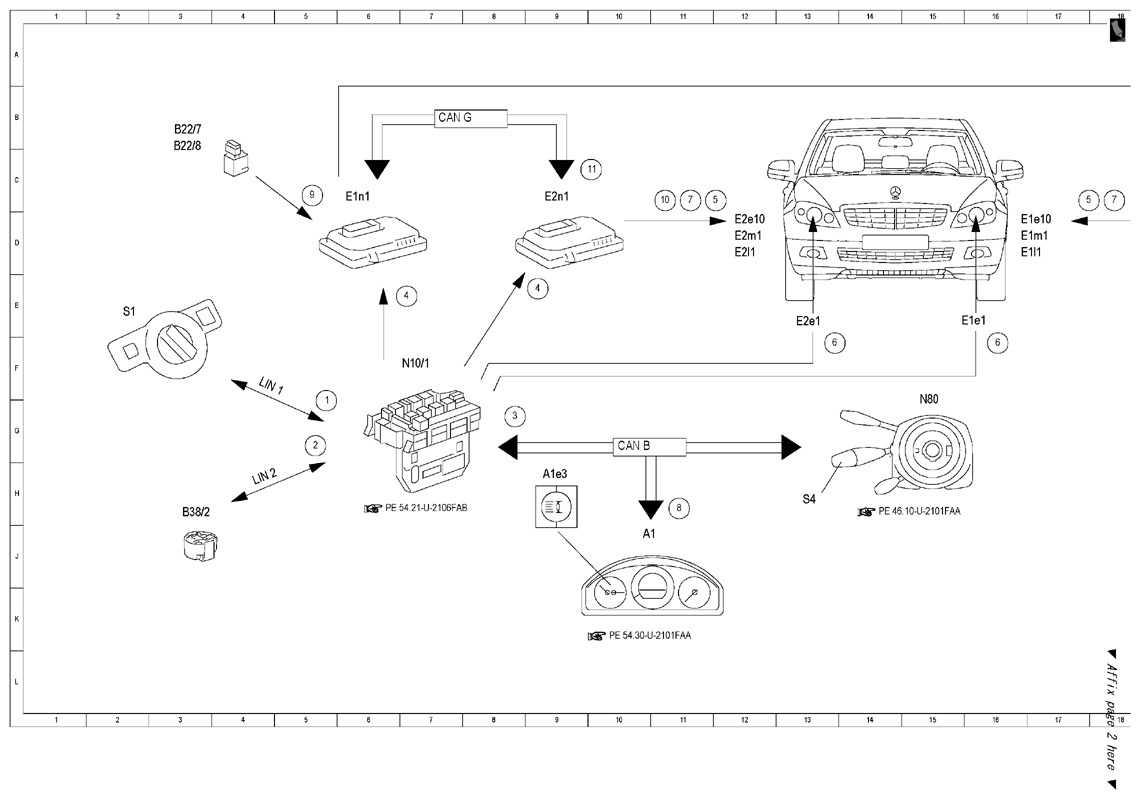

| 1 |
Exterior lights switch, status |
5 F |
| 10 |
Headlamp range adjustment actuator motor, actuation |
11 C |
| 10 |
Headlamp range adjustment actuator motor, actuation |
18 C |
| 11 |
Synchronization, signal |
10 C |
| 2 |
Ambient brightness, signal |
5 G |
| 3 |
Combination switch, switch position |
8 G |
| 4 |
Xenon bulb with integrated ignition module, request |
7 E |
| 4 |
Xenon bulb with integrated ignition module, request |
9 E |
| 5 |
Xenon bulb with integrated ignition module, actuation |
12 C |
| 5 |
Xenon bulb with integrated ignition module, actuation |
18 C |
| 6 |
High beams, actuation |
14 E |
| 6 |
High beams, actuation |
16 E |
| 7 |
High beam solenoid, actuation |
11 C |
| 7 |
High beam solenoid, actuation |
18 C |
| 8 |
High beam indicator lamp, actuation |
11 H |
| 9 |
Level sensor, status |
5 C |
| A1 |
Instrument cluster |
11 H |
| A1e3 |
High beam indicator lamp |
9 H |
| B22/7 |
Left rear level sensor |
3 B |
| B22/8 |
Left front level sensor |
3 B |
| B38/2 |
Rain/light sensor |
3 H |
| CAN B |
Interior CAN |
10 G |
| CAN G |
Front end CAN |
7 B |
| E1e1 |
Left high beam |
16 E |
| E1e10 |
Left xenon bulb with integrated ignition module |
17 C |
| E1l1 |
Left high beam solenoid |
17 D |
| E1m1 |
Left headlamp range adjustment actuator motor |
17 D |
| E1n1 |
Left xenon lamp control unit |
6 C |
| E2e1 |
Right high beam |
13 E |
| E2e10 |
Right xenon bulb with integrated ignition module |
12 C |
| E2l1 |
Right high beam solenoid |
12 D |
| E2m1 |
Right headlamp range adjustment actuator motor |
12 D |
| E2n1 |
Right xenon light control unit |
9 C |
| LIN 1 |
Instrument panel LIN |
4 F |
| LIN 2 |
Wiper/inside rearview mirror LIN |
4 H |
| N10/1 |
Front SAM control module with fuse and relay module |
7 F |
| N80 |
Steering column module control unit |
15 F |
| S1 |
Exterior lights switch |
2 E |
| S4 |
Combination switch |
13 H |
