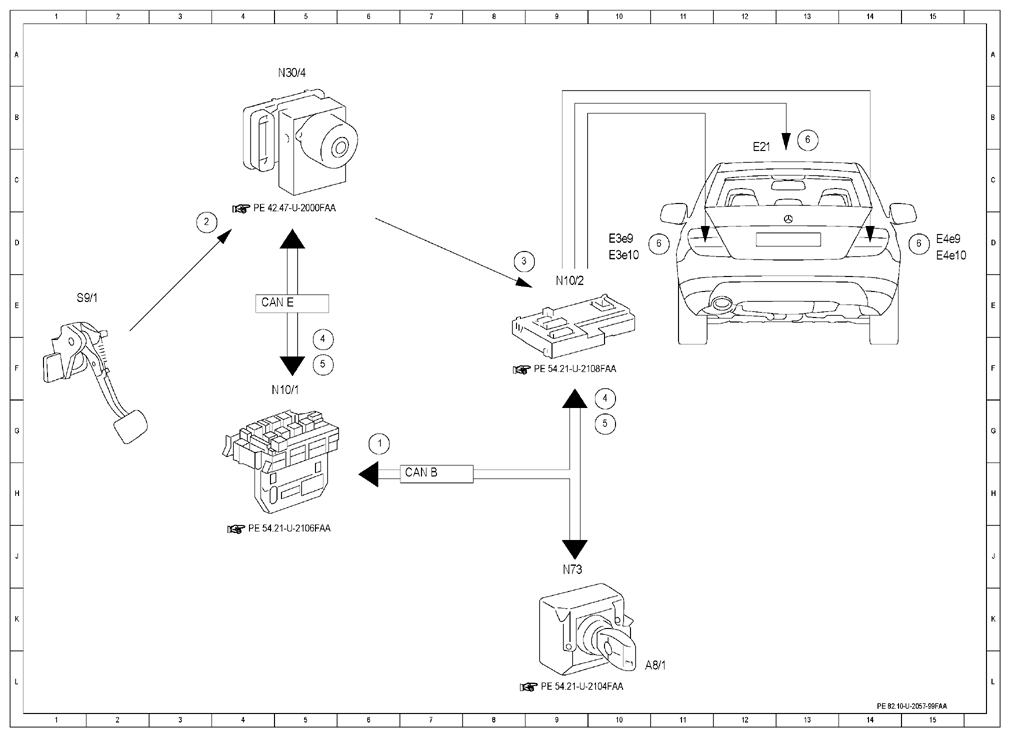

| 1 |
Circuit 15, status |
6 G |
| 2 |
Brake light switch, status |
4 C |
| 3 |
Circuit 54, status |
9 D |
| 4 |
Brake lights, request |
5 E |
| 4 |
Brake lights, request |
10 F |
| 5 |
Flashing brake lights, request |
5 F |
| 5 |
Flashing brake lights, request |
10 G |
| 6 |
Brake lights, actuation |
11 D |
| 6 |
Brake lights, actuation |
13 B |
| 6 |
Brake lights, actuation |
15 D |
| A8/1 |
Transmitter key |
11 L |
| CAN B |
Interior CAN |
7 H |
| CAN E |
Chassis CAN |
5 E |
| E21 |
Center stop lamp |
12 B |
| E3e10 |
Left inner stop lamp and taillamp |
10 D |
| E3e9 |
Left stop lamp and taillamp and parking lamp |
10 D |
| E4e10 |
Right inner stop lamp and taillamp |
15 D |
| E4e9 |
Right stop lamp and taillamp and parking lamp |
15 D |
| N10/1 |
Front SAM control module with fuse and relay module |
5 F |
| N10/2 |
Rear SAM control module with fuse and relay module |
9 D |
| N30/4 |
Electronic Stability Program control unit |
5 A |
| N73 |
Electronic ignition switch control unit |
9 J |
| S9/1 |
Stop lamp switch |
2 E |
