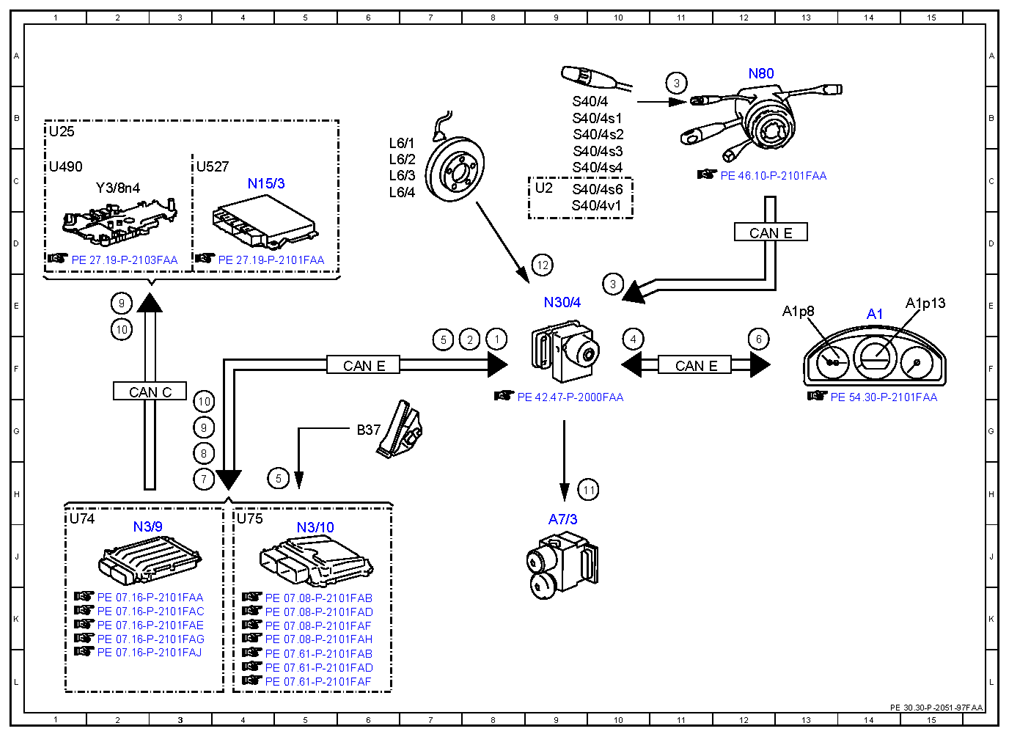

| 1 |
Engine running, signal |
8F |
| 10 |
Stage limitation, request |
3G |
| 10 |
Stage limitation, request |
2E |
| 11 |
Service brake braking torque, actuation |
9H |
| 12 |
Wheel speed, signal |
9D |
| 2 |
Drivetrain operational, signal |
8F |
| 3 |
CRUISE CONTROL lever, signal |
10E |
| 3 |
CRUISE CONTROL lever, signal |
11B |
| 4 |
Set maximum speed, status |
10F |
| 5 |
Accelerator pedal sensor, signal |
5H |
| 5 |
Accelerator pedal sensor, signal |
7F |
| 6 |
Speed setting, status |
12F |
| 7 |
Engine torque, reduce request |
3H |
| 8 |
Engine torque, increase request |
3G |
| 9 |
Shift stage, request |
2E |
| 9 |
Shift stage, request |
3G |
| A1 |
Instrument cluster |
14E |
| A1p13 |
Multifunction display |
15E |
| A1p8 |
Speedometer |
13E |
| A7/3 |
Traction system hydraulic unit |
9H |
| B37 |
Accelerator pedal sensor |
6G |
| CAN C |
Drive train CAN |
2F |
| CAN E |
Chassis CAN |
6F |
| CAN E |
Chassis CAN |
11F |
| CAN E |
Chassis CAN |
12D |
| L6/1 |
Left front axle rpm sensor |
6B |
| L6/2 |
Right front axle rpm sensor |
6C |
| L6/3 |
Left rear axle rpm sensor |
6C |
| L6/4 |
Right rear axle rpm sensor |
6C |
| N15/3 |
Electronic transmission control control unit |
4C |
| N3/10 |
ME-SFI [ME] control unit |
5J |
| N3/9 |
CDI control unit |
2J |
| N30/4 |
Electronic Stability Program control unit |
9E |
| N80 |
Steering column module control unit |
12A |
| S40/4 |
Cruise control lever |
9B |
| S40/4s1 |
Resume from memory switch |
9B |
| S40/4s2 |
Decelerate and set switch |
9B |
| S40/4s3 |
Accelerate and set switch |
9C |
| S40/4s4 |
OFF switch |
9C |
| S40/4s6 |
SPEEDTRONIC switch |
9C |
| S40/4v1 |
SPEEDTRONIC light emitting diode |
9C |
| U2 |
Valid for all except USA |
9C |
| U25 |
Valid for automatic transmission |
1B |
| U490 |
Valid for 7-speed automatic transmission |
1C |
| U527 |
Valid for electronic transmission control |
3C |
| U74 |
Valid for diesel engines |
1H |
| U75 |
Valid for gasoline engines |
4H |
| Y3/8n4 |
Fully integrated transmission control control unit |
2C |
