Electrical function schematic for DISTRONIC PLUS incl. BAS PLUS and PRE-SAFE brake - PE30.30-P-2055-97FAA

Code: Designation: Position:
1 Engine running, signal 14F
10 Far range radar sensor, signal 18D
11 Close range radar sensors, signal 18D
12 Yaw rate, lateral and longitudinal acceleration sensor, signal 11D
13 Wheel speed, signal 10D
13 Wheel speed, signal 15E
14 Wheel rotation direction, signal 10D
14 Wheel rotation direction, signal 14E
15 Instrument cluster message, request 13J
16 Warning tone, request 13H
17 Brake light switch, status 9E
17 Brake light switch, status 14E
18 Accelerator pedal sensor, signal 3H
18 Accelerator pedal sensor, signal 14F
19 Shift stage, request 6H
19 Shift stage, request 4D
19 Shift stage, request 11E
2 Drivetrain operational, signal 15F
20 Stage limitation, request 4E
20 Stage limitation, request 6H
20 Stage limitation, request 11E
21 Service brake braking torque, request 12E
22 Service brake braking torque, actuation 7E
23 Steering angle sensor, signal 18F
23 Steering angle sensor, signal 24C
24 CRUISE CONTROL lever, signal 19F
24 CRUISE CONTROL lever, signal 23C
25 Engine torque, increase request 6G
25 Engine torque, increase request 12E
26 Engine torque, reduce request 6G
26 Engine torque, reduce request 13E
27 Long-range radar, request 18C
28 Diagnosis, communication 18C
29 Combination switch, status 19F
29 Combination switch, status 22C
3 ESP®, status 16E
30 Available torque, signal 14F
31 Warning lamp, request 13H
4 Gear range, status 4H
4 Gear range, status 15F
5 Parking brake indicator switch, status 18G
5 Parking brake indicator switch, status 18J
6 Standstill coordinator, status 15E
7 GPS, signal 18G
7 GPS, signal 18K
7 GPS, signal 30F
7 GPS, signal 27C
7 GPS, signal 27F
8 Switch off radar sensor system, request 21C
9 DISTRONIC, status 15G
A1 Instrument cluster 13J
A1e59 DISTRONIC warning lamp 12J
A1h1 Warning buzzer 11K
A1p13 Multifunction display 14J
A2 Radio 26G
A2/30 Navigation module 26C
A2/30-1 Cradle for navigation module 26C
A28/11 Multifunction antenna 29D
A40/3 COMAND control unit 29G
A7/3 Traction system hydraulic unit 7C
A89 DISTRONIC electric controller unit 17A
B24/15 Yaw rate, lateral and longitudinal acceleration sensor 13B
B29/2 DISTRONIC sensor (DTR)/left front bumper 20B
B29/3 DISTRONIC sensor (DTR)/right front bumper 20B
B37 Accelerator pedal sensor 2E
CAN A Telematics CAN 26E
CAN B Interior CAN 21K
CAN C Drive train CAN 4F
CAN E Chassis CAN 20F
CAN E Chassis CAN 6F
CAN E Chassis CAN 13F
CAN E Chassis CAN 13G
CAN E Chassis CAN 17H
CAN E Chassis CAN 13H
CAN H Vehicle dynamics CAN 17D
CAN H Vehicle dynamics CAN 13D
CAN S Sensor CAN 20D
Code 508 Navigation module preinstallation 26C
Code 509 Navigation module 26C
Code 510 Audio 20 with CD changer 25F
Code 512 COMAND APS with DVD changer 28F
Code 523 Audio 20 radio 25G
Code 527 COMAND APS 28G
Code 527 COMAND APS 28G
L6/1 Left front axle rpm sensor 10B
L6/2 Right front axle rpm sensor 10C
L6/3 Left rear axle rpm sensor 10C
L6/4 Right rear axle rpm sensor 10C
N10/1 Front SAM control unit with fuse and relay module 17J
N15/3 Electronic transmission control control unit 5B
N3/10 ME-SFI [ME] control unit 6J
N3/9 CDI control unit 3J
N30/4 Electronic Stability Program control unit 10E
N49 Steering angle sensor 25C
N62/2 Video and radar sensor system control unit 17E
N80 Steering column module control unit 24C
S12 Parking brake indicator switch 20H
S4 Combination switch 22D
S40/4 Cruise control lever 22A
S40/4r1 DISTRONIC control 24A
S40/4s1 Resume from memory switch 24A
S40/4s2 Decelerate and set switch 24A
S40/4s3 Accelerate and set switch 24B
S40/4s4 OFF switch 24B
S40/4s6 SPEEDTRONIC switch 25A
S40/4v1 SPEEDTRONIC light emitting diode 25A
S9/1 Stop lamp switch 8B
U2 Valid for all except USA 25A
U490 Valid for 7-speed automatic transmission 1B
U527 Valid for electronic transmission control 4B
U74 Valid for diesel engines 2J
U75 Valid for gasoline engines 5J
Y3/8n4 Fully integrated transmission control control unit 2C

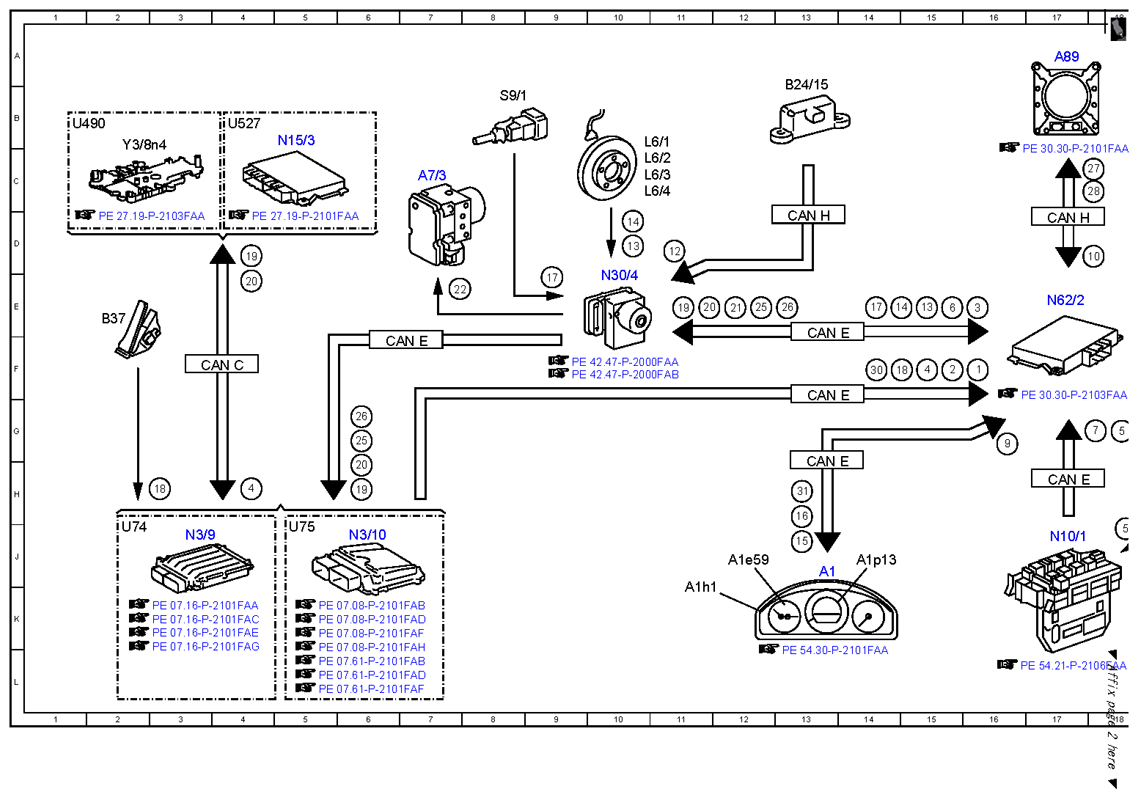

Fig 1: DISTRONIC Plus Incl. BAS Plus And PRE-Safe Brake - Electrical Function Schematic Diagram (1 Of 2)
G10080331Courtesy of MERCEDES-BENZ USA

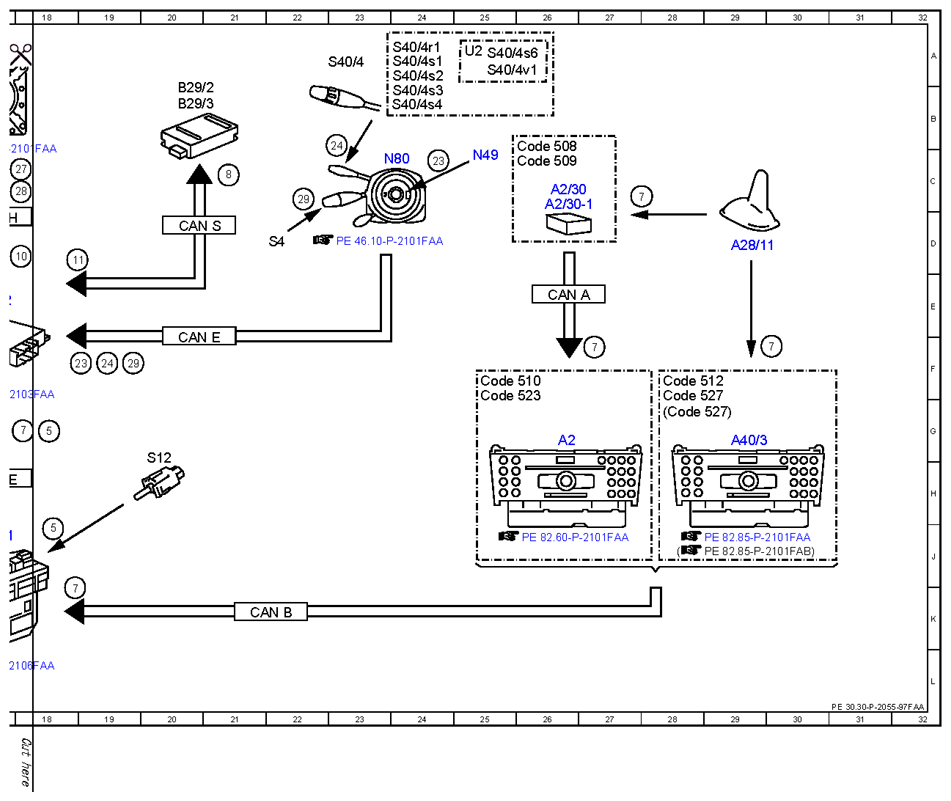

Fig 2: DISTRONIC Plus Incl. BAS Plus And PRE-Safe Brake - Electrical Function Schematic Diagram (2 Of 2)
G10080332Courtesy of MERCEDES-BENZ USA
