Inspect front axle joint for play, inspect rubber boots - AP33.20-P-3353AK
MODEL 117, 156, 176, 242, 246
MODEL 169.006/007/008/031/032/033/034/090
MODEL 169.306/307/308/331/332/333/334
MODEL 245.207/208/231/232/233/234

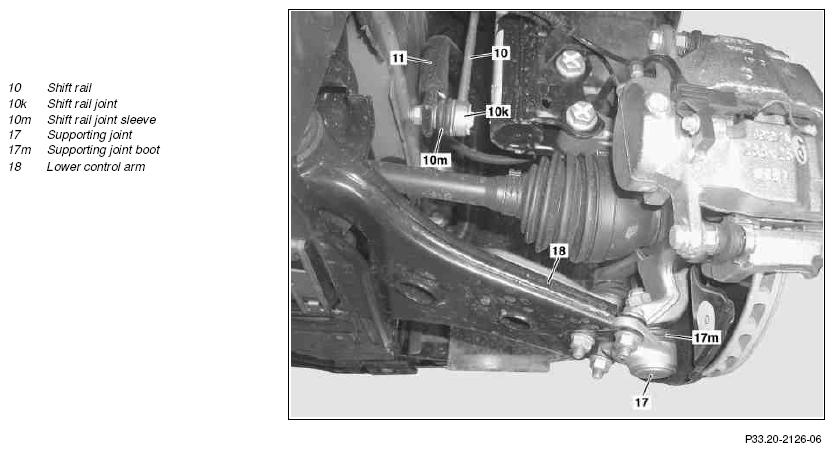

Shown on model 169 with complete wheel removed
| Risk of injury due to fan starting unexpectedly | Do not reach into the rotation or hazard area of the fan. Wear closed and close-fitting work clothes. | AS20.40-Z-0001-01A | |
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of injury. Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating range of the mechanism when moving components. | AS00.00-Z-0009-01A | |
| Preparatory activity | |||
| 1 | Lift vehicle on vehicle lift | ||
| AR00.60-P-1000AK | |||
| Check | |||
| 2 | Check supporting joint boots (17m) for proper condition, leaktightness and correct seating | If there are problems: ↓ Rectify problem subject to separate repair order. |
|
| 3 | Check supporting ball joints (17) for play by pushing and pulling firmly on lower control arm (18) | If there are problems: ↓ Rectify problem subject to separate repair order. |
|
| 4 | Check shift rail joint boots (10m) on both shift rails (10) for condition, leaktightness and correct seating | If there are problems: ↓ Rectify problem subject to separate repair order. |
|
| 5 | Check shift rail joints (10k) for play by pushing and pulling firmly on shift rails (10) | If there are problems: ↓ Rectify problem subject to separate repair order. |
|
| Finishing activity | |||
| 6 | Lower vehicle |
