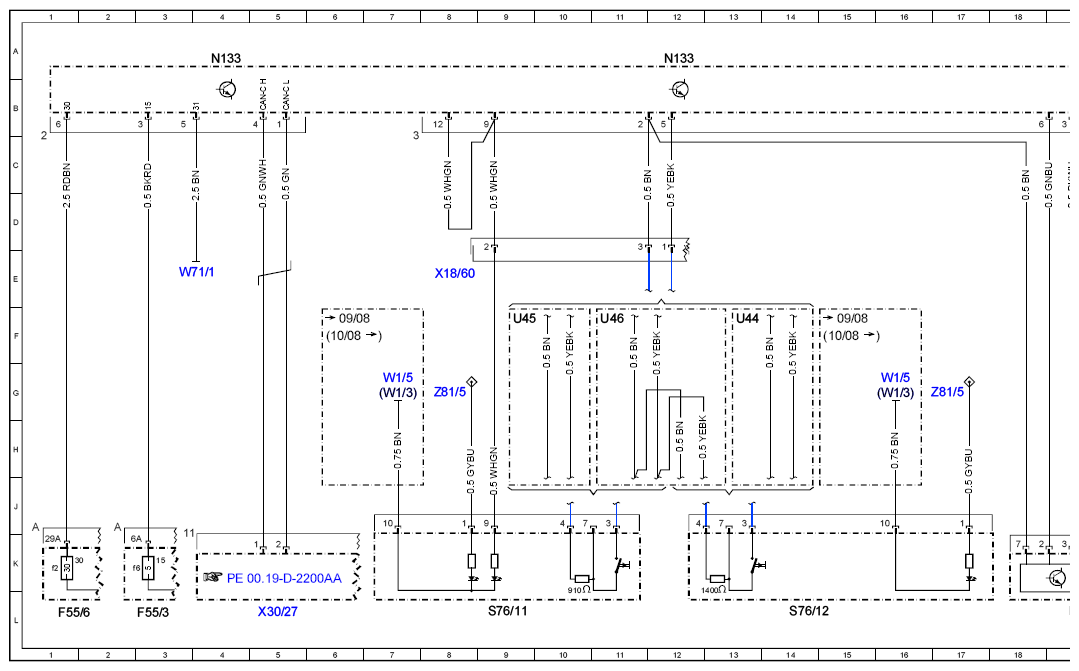

| B24/19 |
Turning angle sensor |
21L |
| F55/3 |
Fuse block (9 fuses) |
3L |
| F55/3f6 |
Fuse 6 (5 A) all-wheel drive |
2K |
| F55/6 |
Fuse block (9 fuses) |
1L |
| F55/6f2 |
Fuse 29 (30 A) all-wheel drive |
1K |
| M88 |
All-wheel drive actuator motor |
19L |
| N133 |
All-wheel drive control unit |
4A |
| N133 |
All-wheel drive control unit |
12A |
| N133 |
All-wheel drive control unit |
20A |
| S76/11 |
All-wheel drive engagement button |
9L |
| S76/12 |
All-wheel drive reduction button |
14L |
| U44 |
Valid for permanent all-wheel drive with gear reduction |
13F |
| U45 |
Valid for engageable all-wheel drive |
9F |
| U46 |
Valid for engageable all-wheel drive with gear reduction |
11F |
| W1/3 |
CLS cockpit ground point 1 |
7G |
| W1/3 |
CLS cockpit ground point 1 |
16G |
| W1/5 |
CLS cockpit ground point 2 |
7G |
| W1/5 |
CLS cockpit ground point 2 |
16G |
| W71/1 |
Driver seat frame ground point 1 |
3E |
| X18/60 |
HLS/COC connector 4 |
8E |
| X30/27 |
Engine CAN bus connector |
5L |
| Z81/5 |
Tml. 58d connector sleeve |
8G |
| Z81/5 |
Tml. 58d connector sleeve |
17G |
