Disconnect/Connect Automatic Transmission Oil Lines On Radiator - Ar27.55-D-0100-01US

Fig 1: Set Of Stop Plugs (129 589 00 91 00)

Courtesy of MERCEDES-BENZ USA

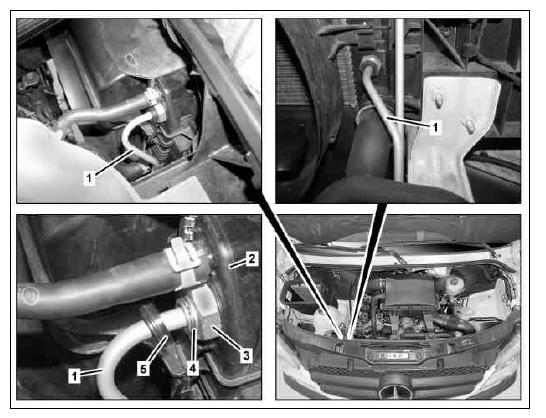

1. Detach cap (5) on connection fitting (3) of radiator (2).
2. Pry out safety clamp (4) on connection fitting (3) and remove.
3. Pull oil line (1) out of connection fitting (3).

   Collect transmission oil which flows out. Seal off connections with stop plugs.

4. Install in the reverse order.

Shown on engine 272.979

Courtesy of MERCEDES-BENZ USA
