Disconnect/Connect Hydraulic Lines On Power Steering Cooler - Ar46.25-D-3020-01SE

ENGINE 642.896/898/992/993, 651.955/956/957 in MODEL 906 as of 12/2/11

Fig 1: Record Plug (129 589 00 91 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Hand Pump (210 589 00 71 00)

Courtesy of MERCEDES-BENZ USA

1. Extract power steering fluid out of expansion reservoir using hand pump.

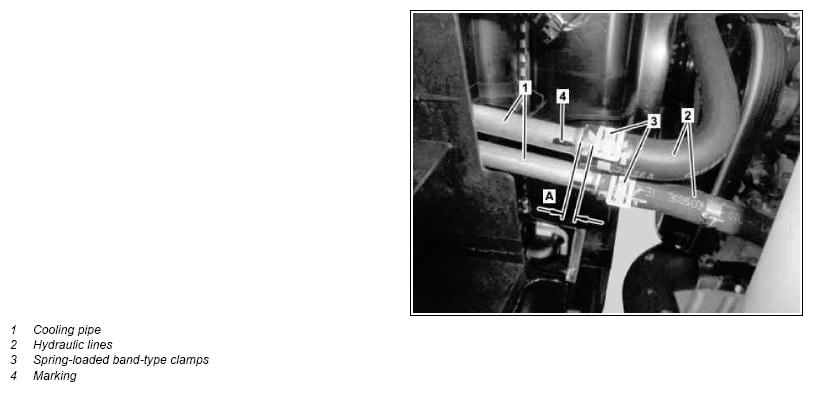

2. Remove hydraulic lines (2) at cooling pipe (1).

   Catch steering gear oil running out. Use suitable plugs to seal the openings.

   Push hydraulic hose on to cooling pipe all the way. The marking (4) on cooling pipe (1) and hydraulic hose (2) must line up exactly. Ensure correct seating of spring bracket clamps with marking on hydraulic hoses. Dimension (A) max. 7 mm.

3. Connect in reverse order.

   Courtesy of MERCEDES-BENZ USA
