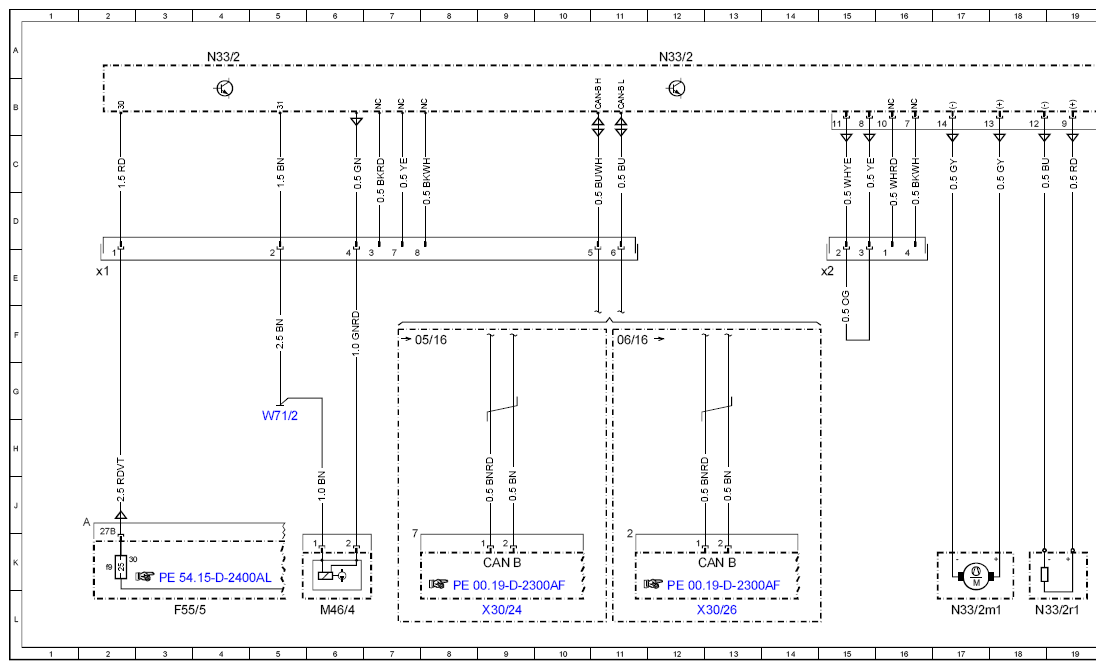

Color code key |
24L |
| F55/5 |
Fuse block 5 (9-pin) |
3L |
| F55/5f9 |
Heater booster/warm air auxiliary heater fuse 27 |
2K |
| M46/4 |
Metering pump |
6L |
| N33/2 |
Control unit 2, auxiliary water heater |
4A |
| N33/2 |
Control unit 2, auxiliary water heater |
12A |
| N33/2 |
Control unit 2, auxiliary water heater |
20A |
| N33/2b1 |
Temperature sensor |
21L |
| N33/2b2 |
Flame sensor |
23L |
| N33/2b3 |
Overheating sensor |
20L |
| N33/2m1 |
Blower motor |
17L |
| N33/2r1 |
Glow plug |
18L |
| N33/2x1 |
Electrical connector 2, auxiliary water heater (8-pin) |
2E |
| N33/2x2 |
Electrical connector 2, auxiliary water heater (4-pin) |
15E |
| W71/2 |
Driver seat frame ground point 2 |
5H |
| X30/24 |
Interior CAN electrical connector |
9L |
| X30/26 |
Interior CAN electrical connector |
13L |
