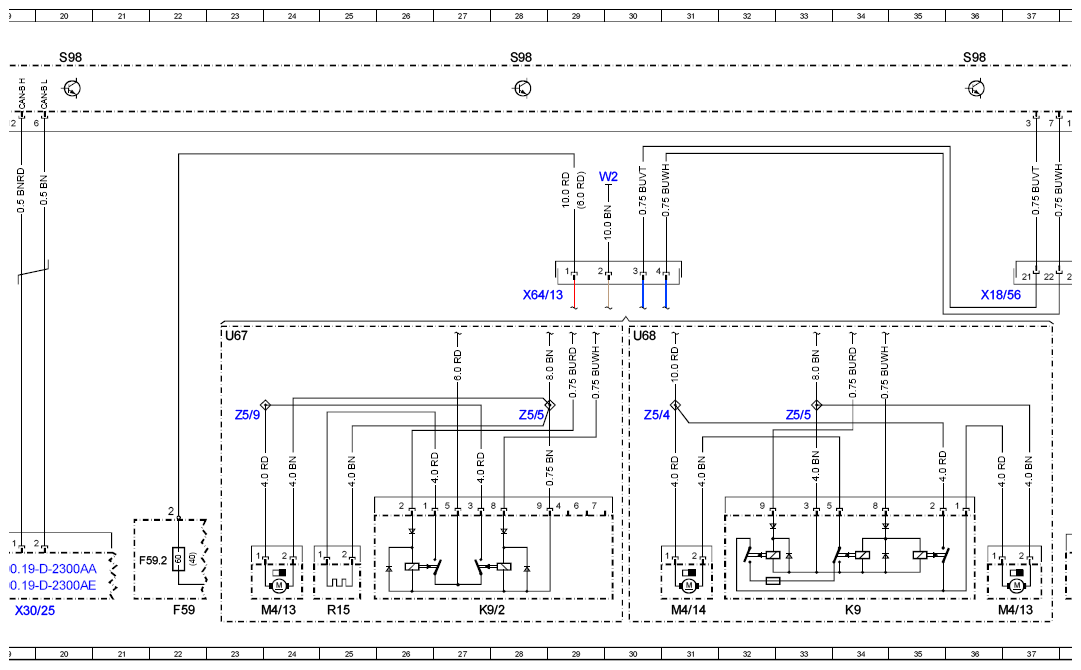

| A32/1 |
Rear heater/air conditioner air recirculation unit |
45L |
| A32/1a1 |
Rear heater blower regulator |
46L |
| A32/1m1 |
Rear heater blower motor |
47L |
| A32/1m2 |
Rear heater water valve motor |
43L |
| A32/1r1 |
Rear heater water valve potentiometer |
44L |
| A9 |
Refrigerant compressor |
42L |
| B10/6 |
Evaporator temperature sensor |
11L |
| B12 |
Refrigerant pressure sensor |
38L |
| F55/2 |
Fuse block (9 fuses) |
2L |
| F55/2f3 |
Fuse 12 (30 A), front blower |
2K |
| F55/2f7 |
Fuse 16 (10 A), front climate control, CD changer |
1K |
| F55/6 |
Fuse block (9 fuses) |
49L |
| F55/6f3/2 |
Fuse 30 (15 A), additional heat exchanger fan |
49K |
| F55/6f4 Fuse 31 (15/30 |
A) closing assist/left sliding door/rear blower |
48K |
| F59 |
Fuse box |
22L |
| F59.2 |
Fuse (40/60 A), tml. 30 air conditioning additional fan |
22K |
| K23/2 |
Blower stage 1 fan relay |
52L |
| K23/3 |
Blower stage 2 fan relay |
57L |
| K9 |
Additional fan relay |
34L |
| K9/2 |
Additional fan relay (mono) |
27L |
| M13/4 |
Circulation pump |
40L |
| M16/21 |
Fresh air/air recirculation flap actuator motor |
15L |
| M16/22 |
Air distribution actuator motor |
9L |
| M16/8 |
Blending air flap actuator motor |
13L |
| M2 |
Blower motor |
7L |
| M2/26 |
Rear blower motor |
55L |
| M2n1 |
Blower regulator |
5L |
| M4/13 |
Air conditioner 1 additional fan |
24L |
| M4/13 |
Air conditioner 1 additional fan |
37L |
| M4/14 |
Air conditioner 2 additional fan |
31L |
| R15 |
AC mono fan resistor |
25L |
| S98 |
AAC [KLA] control and operating unit |
4A |
| S98 |
AAC [KLA] control and operating unit |
12A |
| S98 |
AAC [KLA] control and operating unit |
20A |
| S98 |
AAC [KLA] control and operating unit |
28A |
| S98 |
AAC [KLA] control and operating unit |
36A |
| S98 |
AAC [KLA] control and operating unit |
44A |
| S98 |
AAC [KLA] control and operating unit |
52A |
| S98 |
AAC [KLA] control and operating unit |
60A |
| U67 |
Valid for AC mono fan |
23F |
| U68 |
Valid for AC duo fan |
30F |
| W1/3 |
CLS cockpit ground point 1 |
2E |
| W2 |
Right front lamp unit ground point |
30C |
| W52/7 |
Left rear crossmember ground point |
55H |
| W71/2 |
Driver seat frame ground point 2 |
46H |
| W71/3 |
Driver seat frame ground point 3 |
52H |
| W9/7 |
Left front ground point 2 |
39H |
| X18/55 |
HLS/COC connector 3 |
43E |
| X18/56 |
HLS/COC connector |
36E |
| X26/55 |
Engine wiring harness connector 1 |
41H |
| X30/25 |
Interior CAN bus connector |
19L |
| X31/12 |
Tml. 31 blower connector |
4H |
| X31/9 |
Blower switch connector |
2H |
| X64/13 |
Double auxiliary fan connector |
28E |
| Z162 |
Blower motor connector sleeve |
5G |
| Z3/65 |
Tml. 15 connector sleeve |
57G |
| Z5/4 |
Blower switch connector sleeve |
30G |
| Z5/5 |
AC fan tml. 30 connector sleeve |
28G |
| Z5/5 |
AC fan tml. 30 connector sleeve |
33G |
| Z5/9 |
AC fan connector sleeve (mono) |
23G |
